6 Installation
6.1 Attachment to Tool Changer

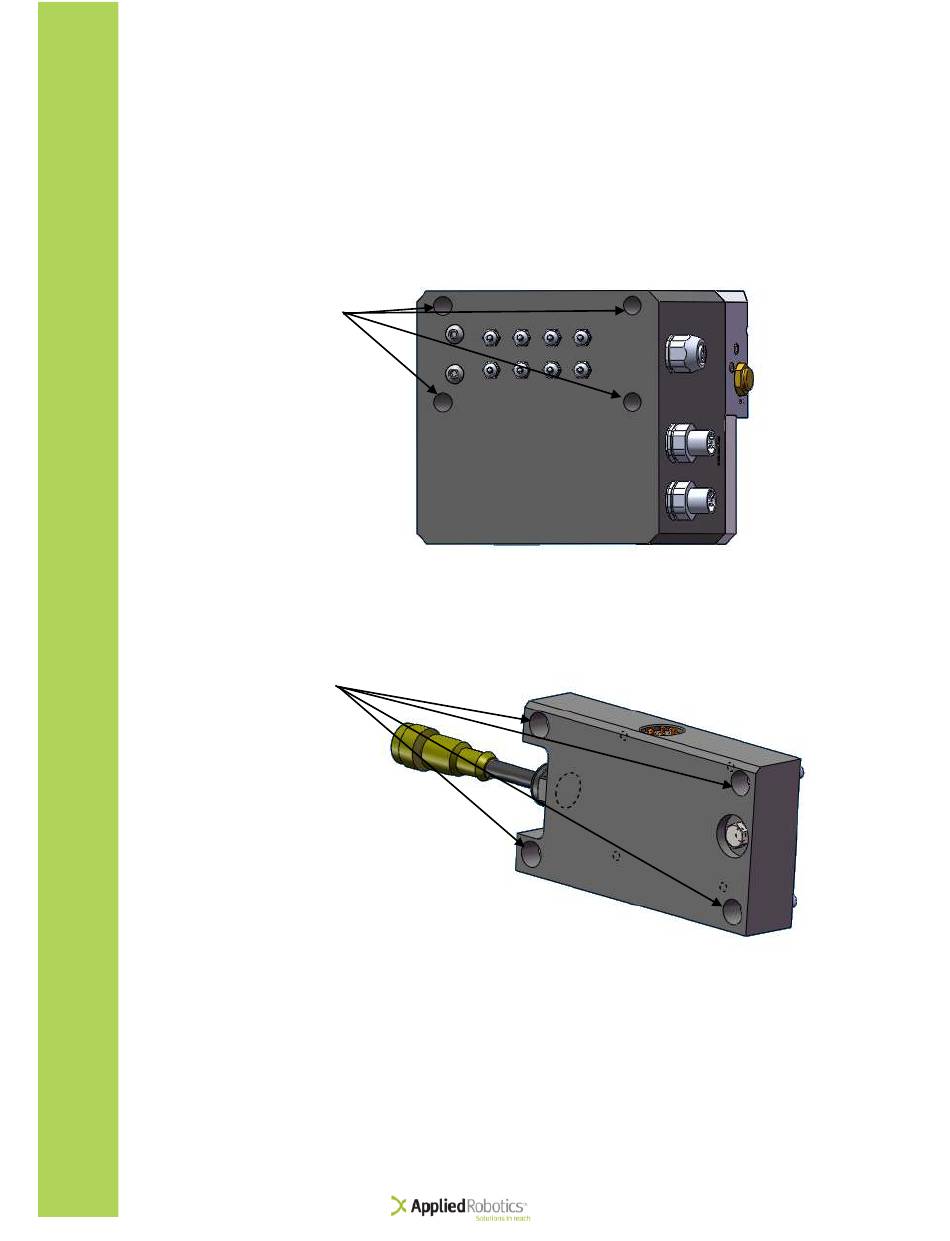

With the Robot and Tool Adapter uncoupled and apart, install both the robot and tool side module on side one
of the tool changer.
4 x ARI # 49798 SCR, SOC
HD CAP M5 X 100 SS
4 x ARI # 48028 SCR, SOC
HD CAP M5 X 16 (SS
1303-D05A & 1304-D57A
Manual - 95575 Rev 05
Robot Module
Tool Module
9
