6.2 Air Supply

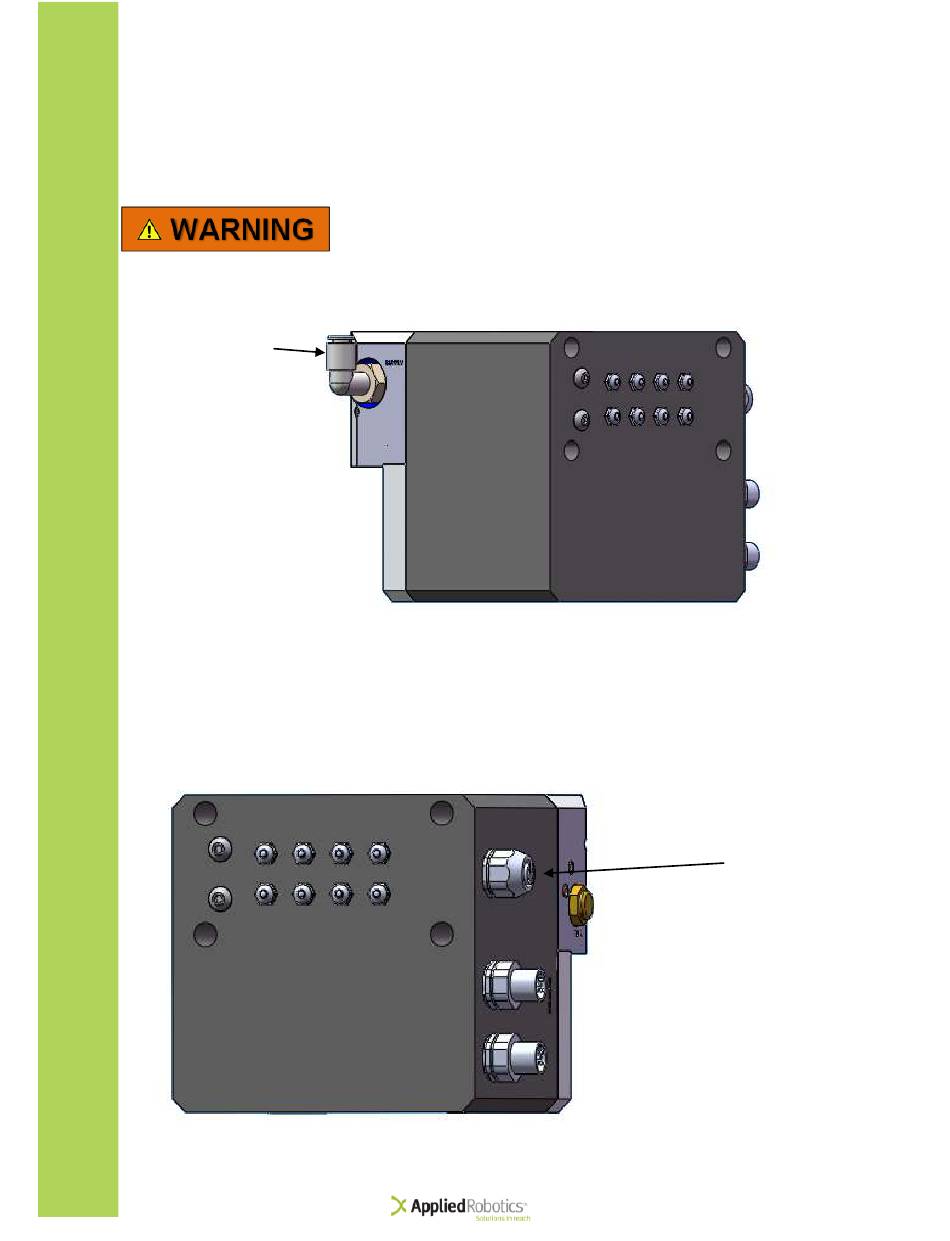

Connect the Air Supply to the 6mm air fitting show below:
6mm Air Supply
Fitting

6.3 Electrical Connections

Connect the customer "Monitor Point" to the M12 connector, J1. This connection will provide feedback to
show all channels are working correctly in the Safety Control Module.
1303-D05A & 1304-D57A
Upon supplying air to the Safety Control Module, the robot adaptor will
be forced coupled. Make sure the tool adaptor is not within range of the
robot side cams to cause an undesired couple. Make sure all objects and
fingers are clear of the cams and mating surfaces when air is supplied.
Manual - 95575 Rev 05 10
Female M12
Connector, J1
