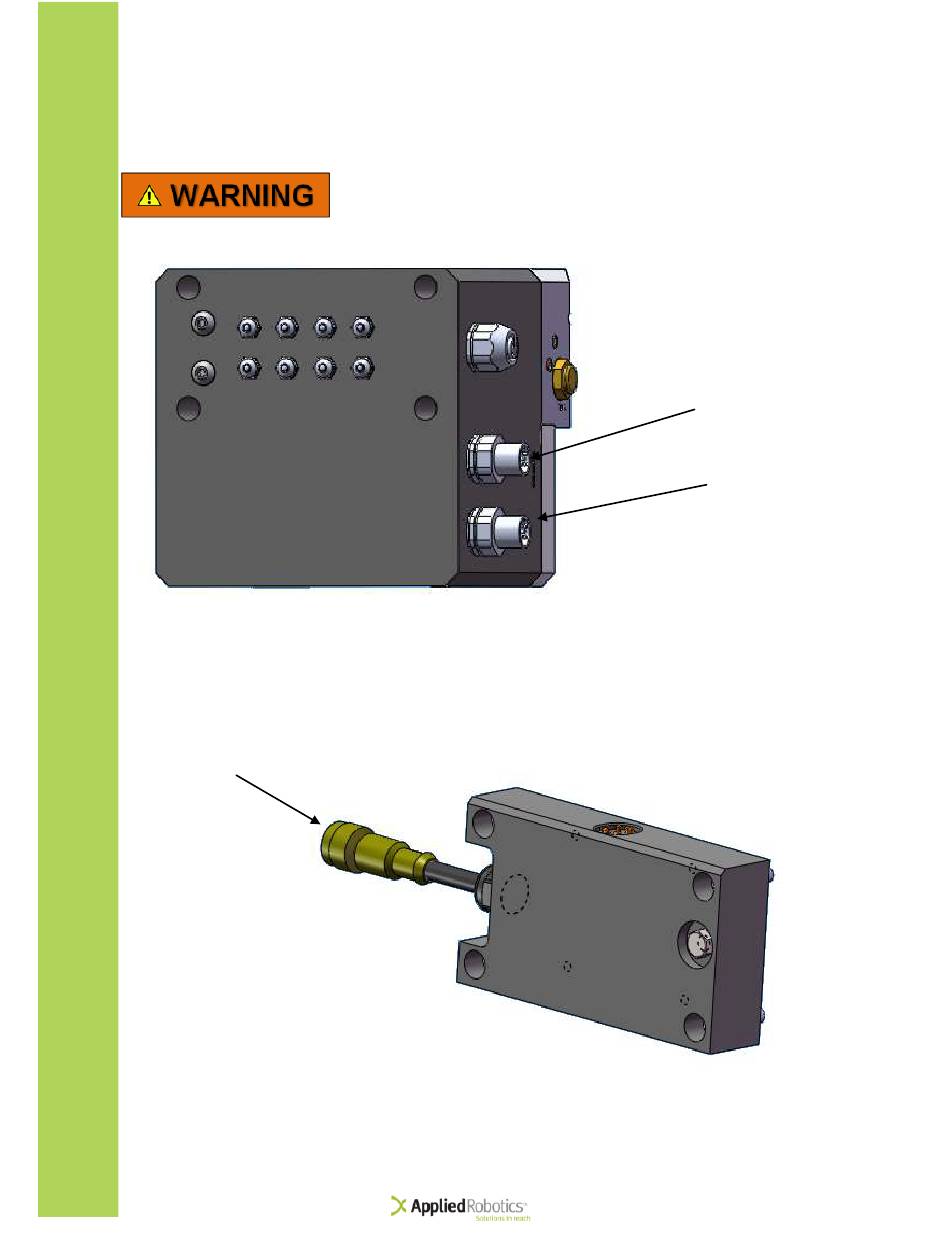

Power and Uncouple are supplied on two separate M12 connections J3 and J2, respectively. Connect the appro-
priate cables to the connectors J3 and J2 as shown below:
Connect the tool side module connector T1 to an approved tool stand present safety switch. Refer to your man-
ufacturer's tool stand connection manual for how the tool stand present switch should be installed.
Tool Stand Safety
Switch, T1
1303-D05A & 1304-D57A
Make sure an uncouple signal is not being supplied by the cable you care
connecting to J2. This could cause the robot side to couple. Make sure all
objects and fingers are clear of the cams when connecting J2.
Manual - 95575 Rev 05
11
Uncouple, J2
Power, J3
