Compact Coat Rack – Metric
Difficulty
Moderate
Not everyone has space for a mudroom, but everyone does need a place to hang coats and hats when they come in the
door. With this coat rack, you'll get that hanging space without taking up floor space. At less than 60 cm wide and about
180 cm tall, its compact size makes it easy to fit almost anywhe
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kreg Metric
Summary of Contents for Kreg Metric

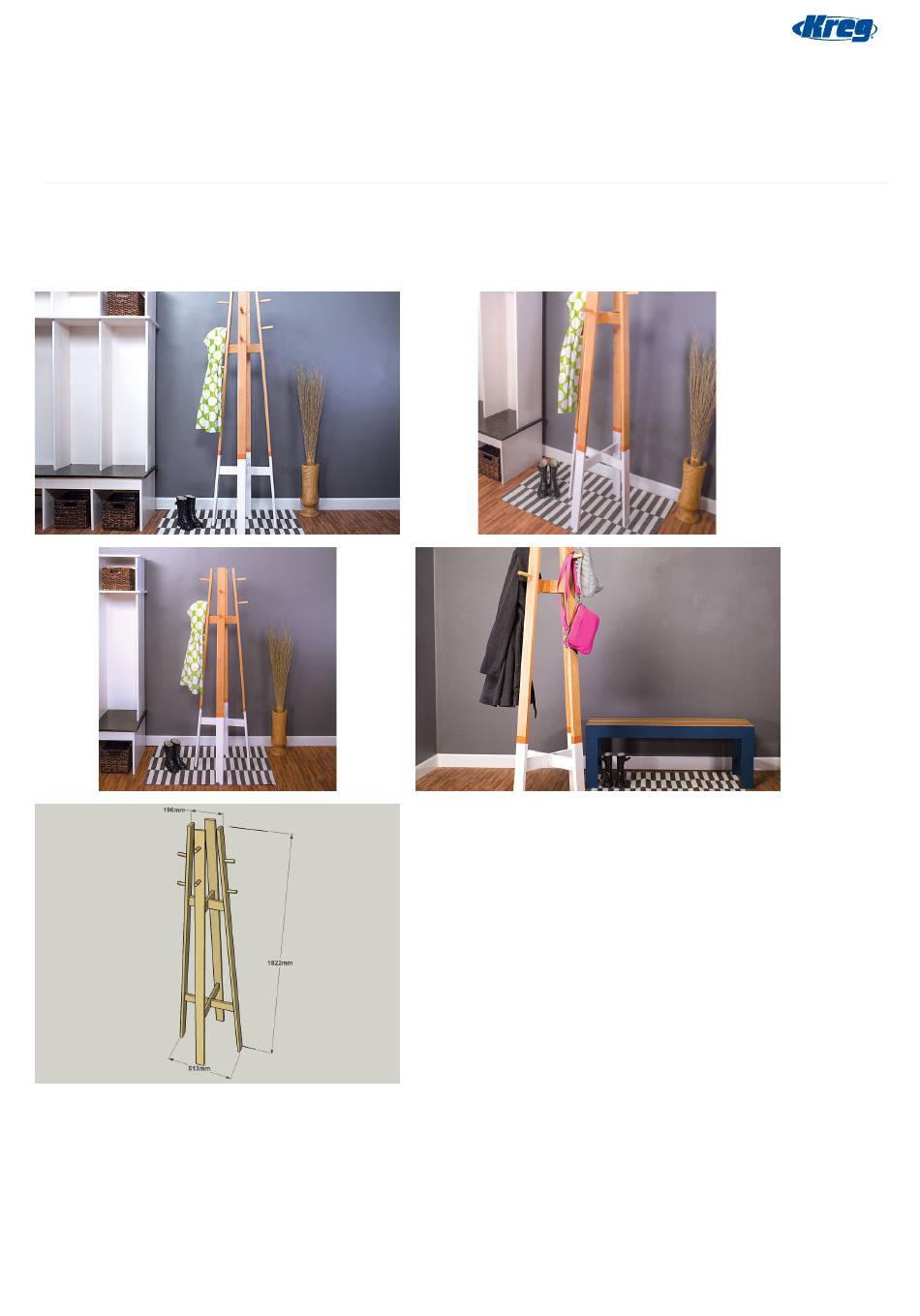

- Page 1 Compact Coat Rack – Metric Difficulty Moderate Not everyone has space for a mudroom, but everyone does need a place to hang coats and hats when they come in the door. With this coat rack, you’ll get that hanging space without taking up floor space. At less than 60 cm wide and about...
- Page 2 Tools Materials Kreg Tools Wood Products Board , 19mm X 64mm , 2400mm Kreg Pocket-Hole Jig® 720 Dowel , 19mm Diameter , 1200mm Hardware & Supplies Other Tools Kreg 32mm Pocket-hole Screws Miter Saw 19mm Forstner-style Drill Bit Tape Measure...
- Page 3 Cut List & Parts Leg , 19 X 64 X 1830mm Peg , 19mm-diameter X 100mm Long Top Brace , 19 X 64 X 255mm Short Top Brace , 19 X 64 X 155mm Long Bottom Brace , 19 X 64 X 405mm Short Bottom Brace , 19 X 64 X 195mm Page 3 of 7...
- Page 4 Directions Cut the Legs and Pegs Cut four Legs from 19x64mm boards, as shown in the cutting diagram. To do this, first bevel one end of each board at 5°. Then measure 1830mm on the long face of the board, reset your saw for a square cut, and then cut the Leg to final length. Also cut eight Pegs to length from a 19mm dowel, as shown in the cutting diagram.
- Page 5 Drill Pocket Holes The Braces need pocket holes to allow them to be attached. With your pocket-hole jig set up for 19mm material, drill the pocket holes as shown. Note that on the mitered ends the pockets are drilled so they are perpendicular to the end. When you’ve drilled all the holes, sand all of the Braces smooth.
- Page 6 Add a Second Leg Now align and attach the other leg with high-mounted Pegs the same way. Attach the Short Braces Now you can attach a Short Bottom Brace and a Short Top Brace to each of the other Legs (with the low-mounted Pegs) using 32mm pocket-hole screws.
- Page 7 Finish Up the Assembly Attaching these leg assemblies to the others is easy. Just center the Short Brace on the length of the Long Brace, and then drive in 32mm pocket-hole screws. If you wish, you can plug the pocket holes, though the tight spaces do make this a bit challenging.
