PREMIUM SERIES
INSTALLATION AND
OPERATION MANUAL
14
13
12
11
BATTERY MODELS
DLB-G24-12V
DLB-G24-24V
DLB-G24-36V
10
9
8
7
10
9
8
7
DLB-GC12-12V
DLB-GC12-24V
1
6
5
4
3
UNLESS OTHERWISE SPECIFIED:
FINISH:
DEBURR AND
DIMENSIONS ARE IN MILLIMETERS
BREAK SHARP
SURFACE FINISH:
EDGES
TOLERANCES:
LINEAR:
ANGULAR:
NAME
SIGNATURE
DATE
TITLE:
DRAWN
CHK'D
APPV'D
MFG
Q.A
MATERIAL:
DWG NO.
WEIGHT:
SCALE:1:1
6
5
4
3
805-0010 REV D
2
1
T
R
P
N
M
L
K
J
H
G
F
E
D
C
B
DO NOT SCALE DRAWING
REVISION
A
DL_L3_Covers
A0
SHEET 1 OF 1
2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LITHIUM BLUE Premium Series and is the answer not in the manual?

Questions and answers

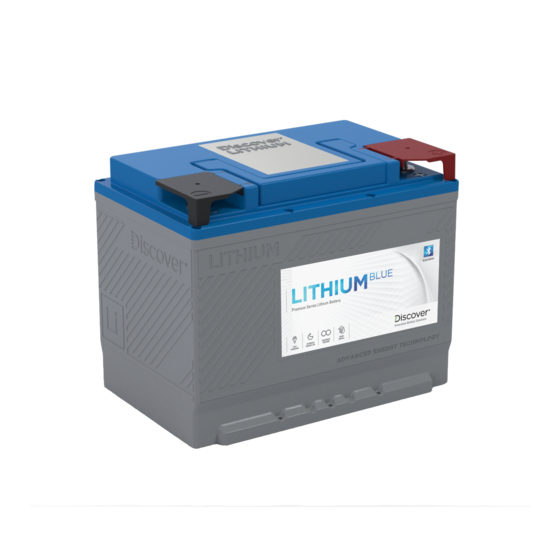

Summary of Contents for DISCOVER LITHIUM BLUE Premium Series

  • Page 1 PREMIUM SERIES INSTALLATION AND UNLESS OTHERWISE SPECIFIED: FINISH: DEBURR AND DO NOT SCALE DRAWING REVISION DIMENSIONS ARE IN MILLIMETERS BREAK SHARP OPERATION MANUAL SURFACE FINISH: EDGES TOLERANCES: LINEAR: ANGULAR: NAME SIGNATURE DATE TITLE: DRAWN CHK'D APPV'D MATERIAL: DWG NO. DL_L3_Covers WEIGHT: SCALE:1:1 SHEET 1 OF 1...
  • Page 2: Table Of Contents

    1. Audience, Safety, Messages, and Warnings 1.1 Audience 1.2 Safety, Messages, and Warnings 2. Specifications 2.1 Electrical Specifications 2.2 Mechanical Specifications 2.3 Environmental Specifications 2.4 Protection Specifications 2.5 Specifications for System Sizing 2.6 Regulatory 3. Transportation 4. Handling 5. Design and Features 5.1 Battery Management System Protections 5.2 Battery Fuse 5.3 Battery Management System Low Power Hibernation...
  • Page 3: Audience, Safety, Messages And Warnings

    1. AUDIENCE, SAFETY, MESSAGES AND WARNINGS 1.1 Audience Certain configuration, installations, service, and operating tasks should only be performed by qualified personnel in consultation with local utilities and/ or authorized dealers. Qualified personnel should have training, knowledge, and experience in: •...
  • Page 4 NOTE Ad hoc information concerning important procedures and features of the battery not related to personal injury or equipment damage. Before using the battery, read all instructions and cautionary markings on the unit and all appropriate sections of this manual. WARNING This equipment must only be installed as specified.
  • Page 5: Specifications

    CAUTION: Hot Surfaces. Do not touch when hot. CAUTION: Heavy Object. When lifting, follow appropriate standards. Do not dispose of the battery in the garbage. Do not dispose of the battery in fire. Use personal protective equipment when working with batteries. Additional information concerning important procedures and features of the battery.
  • Page 6: Mechanical Specifications

    2.2 Mechanical Specifications Table 2-2. DLB Mechanical Specifications Mechanical Spec. DLB-G24-12V DLB-G24-24V DLB-G24-36V DLB-GC12-12V DLB-GC12-24V Chemistry LiFePO Length 262 mm (10.3 in) 312 mm (12.2 in) Width 175 mm (6.9 in) 177 mm (7.0 in) Height 210 mm (8.3 in) 276 mm (10.8 in) Terminal SAE 5/16”...
  • Page 7: Specifications For System Sizing

    Protection Spec. DLB-G24-12V DLB-G24-24V DLB-G24-36V DLB-GC12-12V DLB-GC12-24V Overcurrent > 110 A for > 49.5 A for > 33 A for > 160 A for > 110 A for Protection 2 seconds 2 seconds 2 seconds 2 seconds 2 seconds Recovery 20 seconds after the load or charge is removed.
  • Page 8: Regulatory

    Table 2-7. DLB-G24-36V System Size Specifications System Size Energy / Usable Reserve Capacity Peak Current Constant Current Specifications Capacity at 25A 1 Battery 120 A 30 A 1167 Wh 76 minutes 2 Battery 240 A 60 A 2334 Wh 152 minutes 3 Battery 360 A 90 A...
  • Page 9: Design And Features

    5. DESIGN AND FEATURES Item Description The heat sink of the Battery Management System (BMS) Battery terminal covers, positive cover (+/red), negative cover (-/black) Battery negative ( - ) 5/16" terminal stud Battery positive ( + )5/16" terminal stud Handle Fuse Battery hold-down PTFE membrane vent...
  • Page 10: Battery Fuse

    NOTE Charge and discharge have different operating temperature limits. NOTE If the BMS disconnects responding to temperature or current limits, wait for the temperature or current to reach normal operating limits. 5.2 Battery Fuse The Battery fuse is intended to protect the electronic components of the Battery's internal BMS from a high externally generated current.
  • Page 11: Membrane Vent

    5.6 Membrane Vent Membrane vents enable the free passage of gases and vapors and allow for the equalization of the pressure between the internal case and ambient conditions. This helps to protect and preserve the internal components of the battery. 6.
  • Page 12: Dc Cables

    Minimum cable lengths. Select a location that minimizes the length of battery cables in order to reduce voltage drop from impedance leading to reduced performance. NOTICE Only a non-conductive material that covers less than 20% of the heat sink for 'over the top' hold-downs may be used.
  • Page 13: Terminal Connections And Hardware

    the positive cable. Applicable codes may limit how far the protection can be from the battery. NOTE AC circuit breakers and DC circuit breakers are not interchangeable. Check the label on the circuit breaker to ensure it is the correct type and rating. Use only DC circuit breakers. NOTE Local electrical code in your area may require both positive and negative DC disconnect switches.
  • Page 14: Single Battery Installation Procedure

    6.6 Single Battery Installation Procedure CAUTION FIRE HAZARD: Undersized cables can become hot and may potentially catch fire. Failure to follow these instructions can result in minor to moderate injury. Battery cables (battery to load and/or battery to charger) must meet the following requirements to optimize performance: Minimum cable lengths.
  • Page 15 Battery cables (battery to load and/or battery to charger) must meet the following requirements to optimize performance: Minimum cable lengths. Select a location that minimizes the length of battery cables in order to reduce voltage drop from the impedance. Interconnection cables (battery to battery) must meet the following requirements to optimize performance: Equal cable gauge.
  • Page 16 Connect the load positive ( + ) cable and load negative ( - ) cable to the opposing ends of the parallel batteries. LOAD (+) LOAD (-) Figure 6. Load Connections. Connect the charger positive ( + ) cable and charger negative ( - ) cable to the opposing ends of the parallel batteries.
  • Page 17: Operation

    7. OPERATION The Battery BMS prevents battery operation outside of specified operating conditions. Make sure to understand each of these protections and how to set up the system accordingly. Refer to Table 2-4. DLB Protection Specifications. NOTICE Intentional bypassing of the BMS to operate the battery outside maximum and minimum limits voids warranty.
  • Page 18: Charging

    7.4 Charging Each electrical system will have different characteristics and balance-of-system components. Modifications to charger settings may be required to optimize the system performance of each. NOTICE Always confirm that the charging device is incapable of producing transient spikes that exceed the published terminal voltage limits for the battery. NOTICE Never charge a visibly damaged or frozen battery.
  • Page 19: Charging With A Lead-Acid Charger

    7.4.3 Charging with a Lead-Acid Charger CAUTION FIRE AND BURN HAZARD: Do not perform an equalization charge on lithium batteries. Failure to follow these instructions can result in minor to moderate injury. • Not recommended. For the reasons stated below, it is not recommended to use a lead-acid charger.
  • Page 20: Bulk Charge

    Bulk Absorption Float 100% SOC U1 Max Bulk Vdc Absorption & Balancing CURRENT I Max U2 Float Terminate at 2% - 3% of I Min battery rated capacity 200 milliamps required for balancing current Figure 8. Charge Graph. NOTE Charging at 50% of nominal current or lower will extend battery cycle life. 7.5.1 Bulk Charge Bulk phase.
  • Page 21: Equalization Charge

    A Bluetooth App for mobile devices provides real-time access to the battery state-of-charge, voltage, operating current, temperature, status and a diagnostic report. Search for Discover Blue on Apple’s App Store or Google Play. • One Battery. The App will only communicate with one battery at a time.
  • Page 22: Storage

    Table 10-1. DLB Fuse Specifications Discover Part Number 170-0035 170-0033 Fuse Rating 200A DLB-G24-12V DLB-G24-24V Applicable DLB-GC12-12V DLB-G24-36V DLB-GC12-24V Fuse Terminal Torque 13 Nm (9.6 ft-lb) This task should be performed by qualified personnel: • Use only Insulated tools • Wear Personal protective equipment •...
  • Page 23: Related Information

    Allowing the battery to self-discharge below an open-circuit voltage of 3.0 VPC will cause irreversible damage and void the warranty. 12. RELATED INFORMATION Find information about Discover Battery at discoverbattery.com For warranty information, see 885-0021 Discover LITHIUM BLUE Warranty Policy. 13. GLOSSARY OF TERMS, ABBREVIATIONS, AND ACRONYMS Discover LITHIUM BLUE...
  • Page 24 NOTES...
