Connecting The Power; Reverse / Exit Loop Installations - Eagle Access Control Systems Eagle-2000 Series Operator Installation And Instructions

Slide Gate Operators / Eagle-2000 Series / Eagle-1000 Series

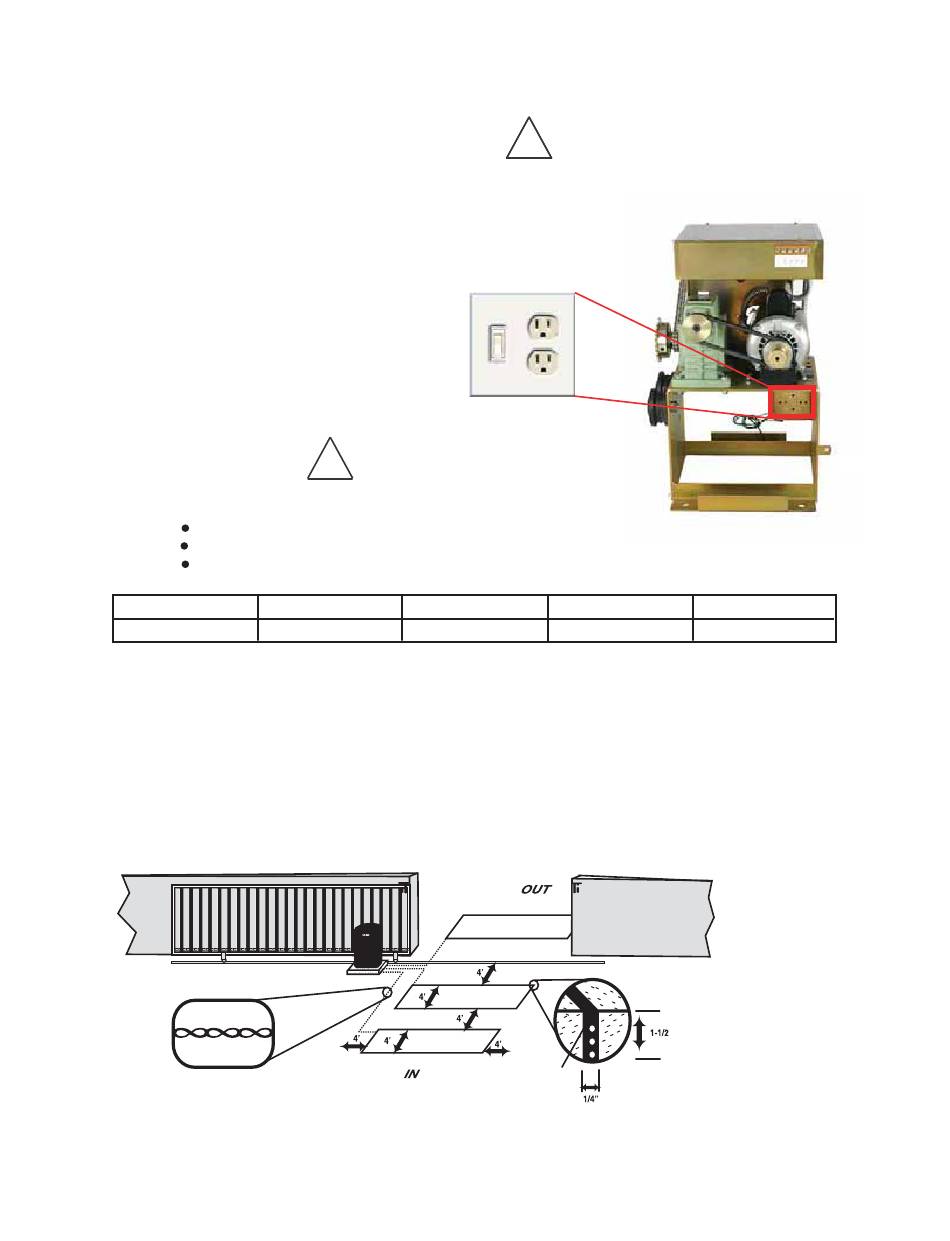

Be sure that the circuit breaker for the line input power is turned off before connecting the input power to the unit.
Connect 120 VAC, 15A, 60HZ, line input power
to the wires provided in the power switch junction
box located near the bottom of the operator.
Warning: Eagle Access Control Systems, Inc
is not responsible for researching and complying
with local building codes. Be sure to check
into these codes before your installation.
Black - 120 VAC / Line Input Power
White - Neutral Input
Green - Ground Input (from an approved grounding method), the unit must be grounded
14 AWG
250 ft.
The purpose of a reversing loop is to prevent the gate from closing on a vehicle while it is exiting or stopped
in the middle of the gate area. The purpose of the exit loop is to automatically open the gate when a vehicle
approaches to exit.
LOOP CUT
TWISTED WIRES
Distributed by AFW Access Systems • www.AnchorMiami.com/afwas
____________________

Connecting The Power

CAUTION!
!
All units must be properly grounded
The wires are color coded as follows:
12 AWG 10 AWG
400 ft. 650 ft.
____________________
Reverse / Exit Loop Installation
Exit Loop Operation
REVERSE LOOP
EXIT LOOP
PROPER SEALER
SHOULD BE USED
IN LOOP CUTS
(9)
!
8 AWG
1000 ft.
REVERSE LOOP
WIRE LAYERS
IN LOOP CUT
4 AWG
2000 ft.
Wires must be
wrapped inside
the groove three
times. Once you
have completed
the process, fill
up the grooves
with a proper
seal.
