Summary of Contents for SIM1 XT-1
- Page 1 Firmware 3.40...

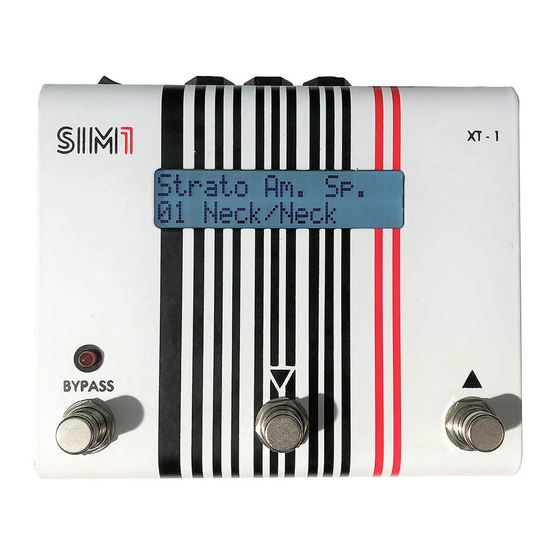

- Page 2 balanced on/off & 9/12 V a. Learn & Play - automatic pickups matching (hold bypass + down) Set up your Source Guitar by recording Neck, Mid and Bridge position pickups. The system will automatically match the Target Guitar pickups with your Source Guitar pickups. interactive display b.
- Page 3 Source Guitar. With this procedure it will automatically make the matching between the Target and the Source Guitar pickups. The XT-1 comes with 99 banks (30 Guitar Profiles Presets - 66 Empty /Bypass). The 30 presets will be visible after you run the very first Learning Procedure.
- Page 4 Source Set Up Up to Next During the very first use, when XT-1 is reset, it is possible to skip the Learning Down option Procedure, by holding for 3 seconds the DOWN and UP Switches.
- Page 5 Pickup Matching For each Target Guitar Preset, while performing, it is recommended to switch the Pickup position of your Source Guitar to the one suggested on the display. This allows to reach a sound as close as possible to that one of the original Target Guitar.
- Page 6 Learning one pickup at a time (pickup matching through editor) This function allows you to record more Source Guitar pickups, without modifying the previous configuration of the pedal. The matching between Target and Source Guitar pickups requires the use of the Editor for PC/Mac. Useful to: •...
- Page 7 1.2 Gain (adjust the volume of each target guitar) volumes to each guitar profile. This feature allows 2. Amp you to connect the XT-1 directly to the PA or to a 3.1 Amp Status (Select the Amp Model) powered speaker and use it as a stand-alone pedal.
- Page 8 How to Edit the Amp Section 1. Scroll up with the UP Switch until you reach “2 - Amp section”; 2. Enter this section through the BYPASS Switch (fig. 2); Up to 3. Enter the section “2.1 Amp Status through the BYPASSN Switch (fig.3); Bank Scroll up Number...
- Page 9 How to Edit the Amp Section 6. Scroll up with the UP Switch to get to the 2.2 AMP GAIN section; Up to Bank Bank Up to next 7. Enter this section through the Increase Number Number option Down to Down to Bypass Switch (fig.
- Page 10 On each bank of XT-1 it is possible to Copy/Paste the PreAmp/Effects settings from a different preset. Go to the bank you wish to modify, hold the Bypass Switch for 2 seconds, and follow the instructions on brackets (fig. 10).
- Page 11 Backup & Upgrade for the Configuration Manager Software XT-1 is equipped with a USB Port 2.0, which must be used strictly with a USB pendrive in order to transfer the Back Up of profiles (both source guitars and target guitars) from XT-1 to the Configurator Manager Software, and to reload your profiles (Upgrade) in your device after editing.
- Page 12 SIM1 Web-Store (https://store.sim-one.it/) or in the App. This procedure will allow you to use the new sounds you will buy or you will download for free from the Community. Please note that if you do not enter the XT-1 Code on the Web/App correctly, the bypass downloaded sounds will not be correctly installed in your XT-1 device and it will report an error.
- Page 13 Cabinets Simulations (IR); 7. Save your new configuration on the USB pen drive, and Exit. Bring the Pendrive to the pedal and hold the UP switch in order to do the Upgrade procedure and transfer the new configuration on XT-1.
- Page 14 Midi Master: control with for PC/Mac XT-1 other MIDI devices Select the Source Guitar Select the Target Guitar Insert Bypass in the Bank Adjust the Target Guitar Gain Assign a MIDI Program Change in the Bank Load and insert IR for...
- Page 15 Total pre-sets …..…………………………………………...……………………………………………………………………………………………………….……………….………30 Target Guitars pre-loaded ………………………….…………………………………………………………………………………………………………………………………12 AD Conversion …..…………………………………………………………………………………………………………………………………………….……………………...32 bit DA Conversion..…....................................32 bit Sample Rate ………………………………………………………………………………………………………..…………………………………………..……………….48/96 kHz Input Impedance ……………..……………………………………………………………………………………………………..………………………………………….…..…1 MΩ Output Impedance (Standard Output-OUT)……………….……..………………………………..……………………………………………………………...680 Ω Output Impedance (Balanced Output-BAL) …………………………………………………….…………………………………………………………….…...10 kΩ Recommended Load Impedance …..………………………………..…………………………………………………………………………….….10 KΩ or Greater Signal To Noise ratio ……………………………………..…………………………………..………………………………………………………………..…………….>...
- Page 16 Graphics or painting imperfections are due to handcraft production “Sim1 – Sound Imprinting’ is a registered trademark property of Sim1 Srl. All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with Sim1.
