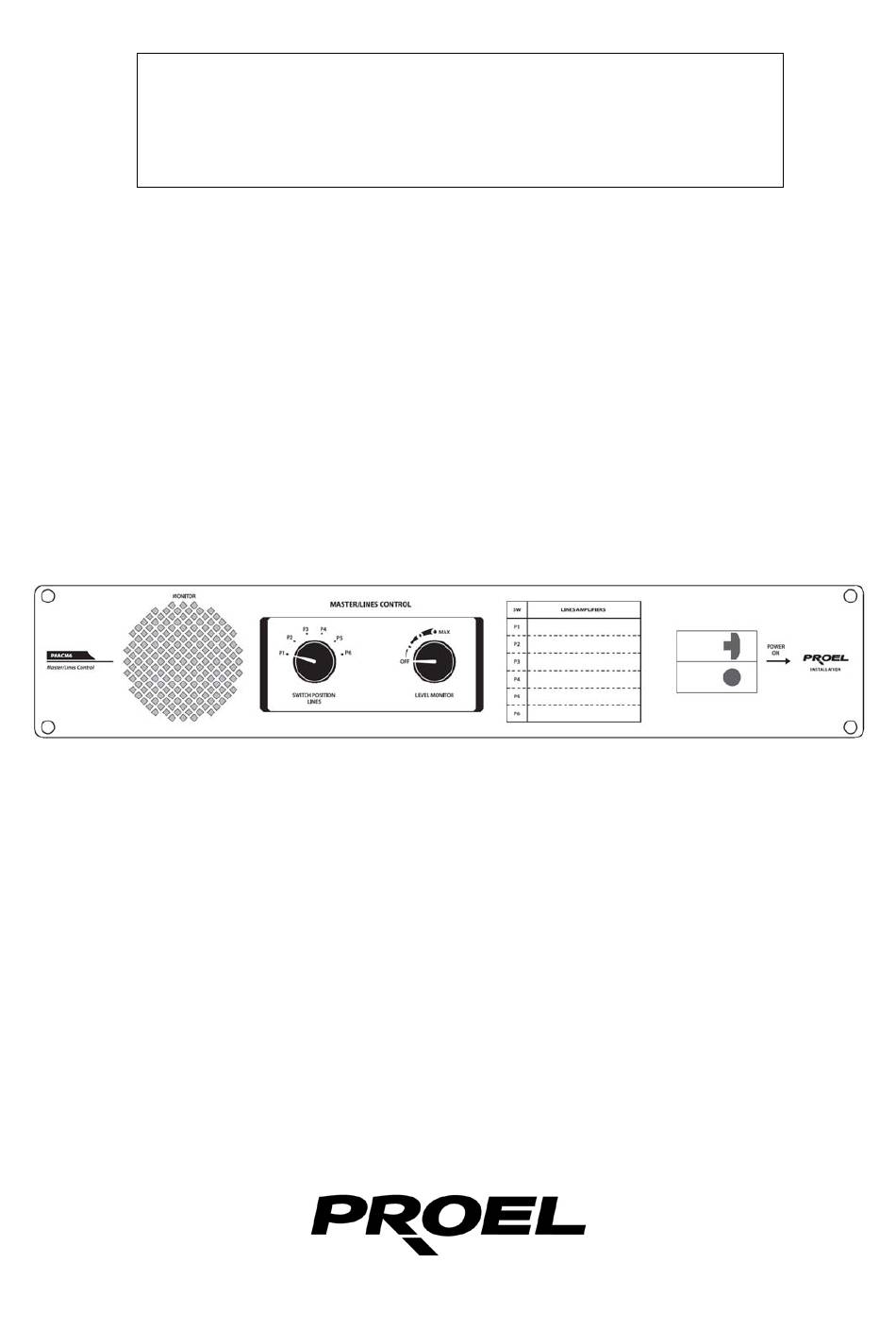

- Page 1 MANUALE UTENTE / INSTRUCTION MANUAL ACM6 Pannello di Accensione e Monitor Power Line and Monitoring Panel...
- Page 2 Tutte le specifiche possono essere variate senza alcuna notifica. Design and specifications subject to change without notice. Todas las especificaciones están sujetas a cambio sin previo aviso. Rev. 0001–01–2007...
- Page 3 1. PRECAUZIONI D’USO AVVERTENZA:Per ridurre il rischio di folgorazione, non rimuovere il coperchio (o il pannello posteriore). All’interno non sono contenute parti riparabili dall’utente; affidare la riparazione a personale qualificato. ATTENZIONE: Per ridurre il rischio d’incendio o di folgorazione, non esporre questo apparecchio alla pioggia o all’umidità. Questo simbolo, ove compare, segnala la presenza di un voltaggio pericoloso non isolato all’interno del corpo dell’apparecchio –...
- Page 4 PROEL S.P.A. declina ogni responsabilità per danni a terzi causati da mancata manutenzione, manomissioni, uso improprio o installazione non eseguita secondo le norme di sicurezza. Gli stessi motivi rappresentano causa di decadenza dei termini di garanzia.
-
Page 5: Funzioni E Controlli
Grazie per aver scelto un prodotto Proel e della fiducia riposta nel nostro marchio, sinonimo di professionalità, accuratezza, elevata qualità ed affidabilità. Tutti i nostri prodotti sono conformi alle normative CE per utilizzazione continua in impianti di diffusione sonora. 2. Descrizione Pannello di accensione e monitoraggio a rack (standard 19”) completo di:... -
Page 6: Pannello Posteriore
PANNELLO POSTERIORE Caratteristiche tecniche Modello ACM6 Accensione generale Interruttore magnetotermico 16A Monitoraggio Selettore n° 6 canali 100V con controllo di volume ed altoparlante Dimensioni (LxHxP) 483 x 88 x 170 mm Montaggio Solo a rack standard 19” Il prodotto è conforme alla Direttiva 89/336/CEE (Compatibilità Elettromagnetica) e successive modifiche 92/31/CEE e 93/68/CEE, secondo i seguenti standard: EN 50082-1:1997, EN 55013:1990, EN 55020:1994 inoltre, è... -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electric shock do not remove cover (or back panel). No user serviceable parts inside. Refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 8 PROEL S.P.A. is not responsible for any damage that occurs due to lack of maintenance, modifications, improper or installation achieved without complying safety information. The same reasons void warranty terms.
-
Page 9: Unit Description
Thank you for choosing one of Proel products, and for your confidence towards our brand, synonymous of professionalism, accuracy, high quality and reliability. All our products comply with CE directives for continuous use in PA systems. 2. Features 19” rack standard panel for power distribution and audio monitoring, featured with: •... -
Page 10: Rear Panel
REAR PANEL Technical Specifications Model ACM6 Main switch 16A Magneto-thermal switch Monitoring 6-position selector for 100V signal with volume control and speaker Dimensions (WxHxD) 483 x 88 x 170 mm (19” x 1.75” x 6.7”) Mounting 19” standard rack only... - Page 11 Note: ______________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ _____________________________________________________________________________________...
- Page 12 PROEL S.p.A (World Headquarters - Factory) Via alla Ruenia 37/43 64027 Sant’Omero (Te) – Italy Tel: +39 0861 811241 Fax: +39 0861 887862 E-mail: info@proelgroup.com installation.proelgroup.com...
