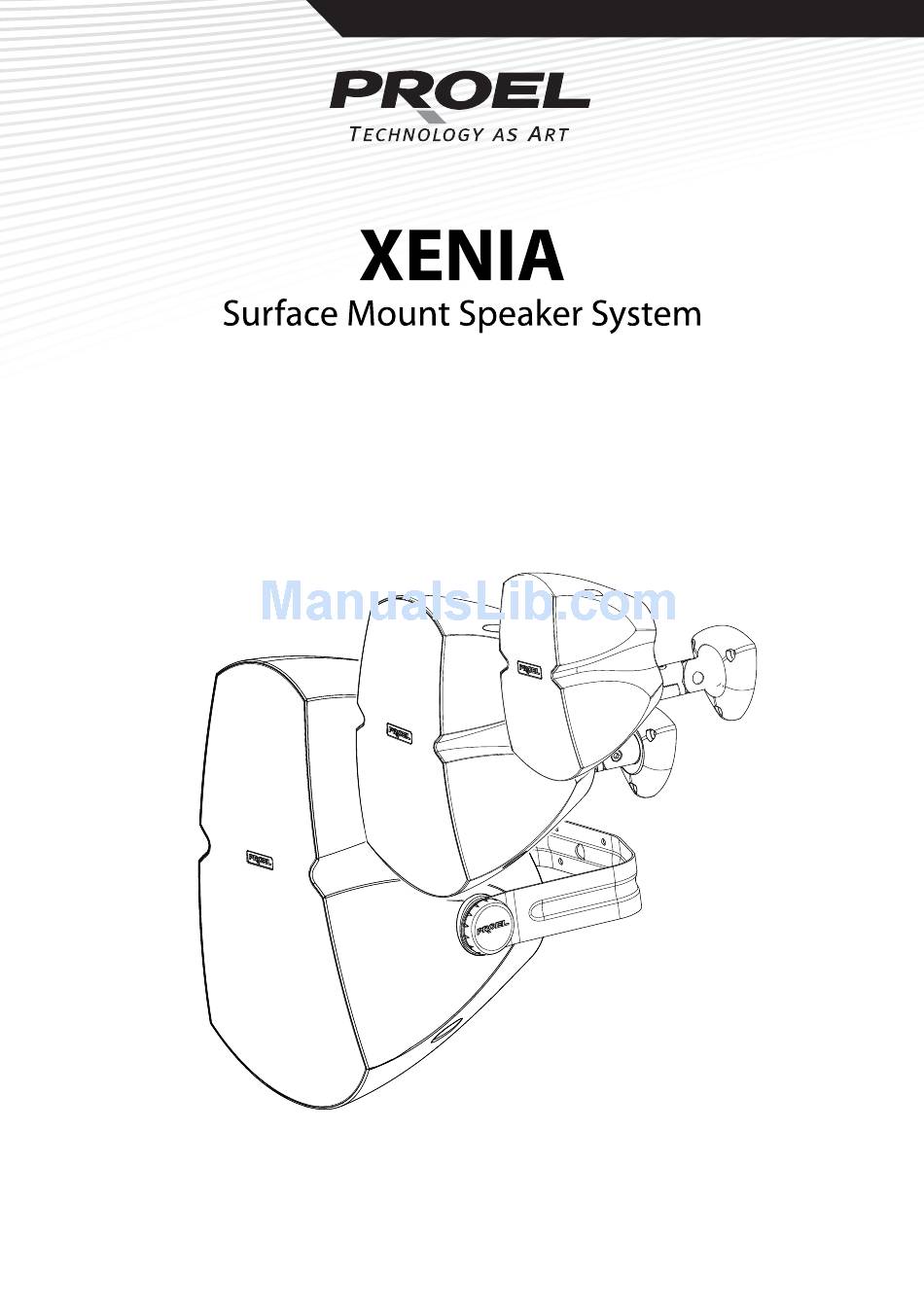

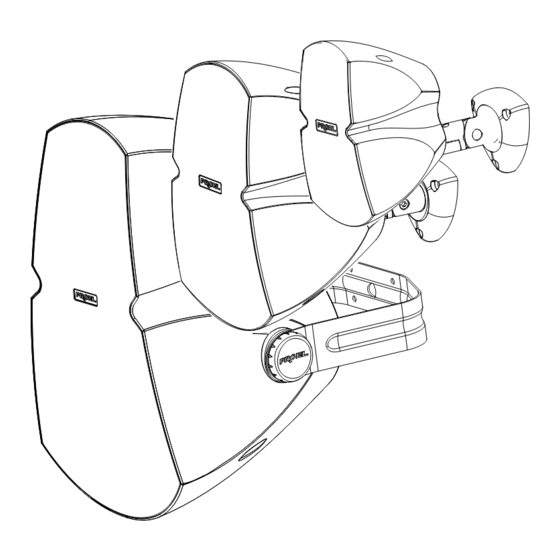

  • Page 1 USER’S MANUAL MANUALE UTENTE proelgroup.com...

  • Page 2: Fcc Compliance Notice

    FCC COMPLIANCE NOTICE This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 65.8 mm 2.59" Ø 4.5mm / 0.17” black / nero red / rosso FIG. 1...
  • Page 4 65.8 mm 2.59" Ø 4.5mm / 0.17” black / nero red / rosso FIG. 2...
  • Page 5 75.0 mm 2.95" Ø 6 mm / 0.23” black / nero red / rosso FIG. 3...
  • Page 6 CONNECTIONS cold ground INPUT INPUT (ingresso) Balanced male XLR XLR bilanciato maschio ground cold OUTPUT OUTPUT (uscita) Balanced female XLR XLR bilanciato femmina tip - hot ring - cold sleeve - ground INPUT INPUT (ingresso) Jack (balanced) Jack (bilanciato) tip - hot cold INPUT INPUT (ingresso)
  • Page 7 Speakers and amplifier power capability must be approximately the same for the specified impedance. Altoparlanti e amplificatore devono avere approssimativamente la stessa potenzaper l’impedenza specificata. XENIA - TECHNICAL SPECIFICATIONS - SPECIFICHE TECNICHE Model X30T X50T X80T X80A Speakers 1"...

  • Page 8: Safety And Precautions

    CE CONFORMITY • Proel products comply with directive 89/336/EEC (EMC) and following modifi cations 92/31/EEC and 93/68/EEC, as stated in EN 55103-1 and EN 55103-2 standards and with directive 73/23/EEC (LVD) and following modifi cations 93/68/EEC, as stated in EN 60065 standard.

  • Page 9: Packaging, Shipping And Complaint

    Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage"...

  • Page 10: Wall Drilling

    Introduction XENIA is a series of speakers designed specifi cally for high-profi le installed sound applications and featuring contemporary Italian styling and advanced technical solutions. All of the models in the XENIA range utilize high-defi nition dome tweeters and high-effi ciency woofers, providing superior quality, full-range sound for a wide scope of installations where the sound system must blend perfectly into a stylish environment.
  • Page 11 CONNECTION and OPERATING instructions for X80A 10. MIC/LINE IN (XLR-JACK input) This is a female combo connector, which accepts a XLR or a JACK plug from almost any type of equipment with a balanced or unbalanced output. The XLR input is wired as follows: Pin 1 = shield or ground Pin 2 = + positive or "hot"...

  • Page 12: Avvertenze Per La Sicurezza

    CONFORMITÀ CE • I Prodotti Proel sono conformi alla direttiva 89/336/EEC (EMC) e successive modifi che 92/31/EEC e 93/68/EEC, secondo gli standard EN 55103-1 ed EN 55103-2 ed alla direttiva 73/23/EEC (LVD) e successive modifi che 93/68/EEC, secondo lo standard EN 60065.

  • Page 13: Imballaggio, Trasporto E Reclami

    INSTALLAZIONE E LIMITAZIONI D’USO • I Prodotti Proel sono destinati esclusivamente ad un utilizzo specifi co di tipo sonoro: segnali di ingresso di tipo audio (20Hz- 20kHz). Proel declina ogni responsabilità per danni a terzi causati da mancata manutenzione, manomissioni, uso improprio o installazione non eseguita secondo le norme di sicurezza.
  • Page 14 Introduzione XENIA è una serie di diff usori progettati in modo specifi co per installazioni fi sse di alto profi lo, utilizzando design Italiano di alto livello e soluzioni tecniche avanzate. Tutti i modelli XENIA utilizzano tweeter a cupola ad alta defi nizione e woofer ad elevata effi cienza, per garantire prestazioni acustiche superiori e un suono full-range di elevata qualità, per un'ampia gamma di...
  • Page 15 Istruzioni di COLLEGAMENTO ed USO modello X80A 10. MIC/LINE IN (ingresso microfono/linea combo XLR-JACK) Connettore combinato che accetta un XLR o un JACK maschio da praticamente tutti gli apparecchi con cavo bilanciato o sbilanciato. Le terminazioni dell' ingresso XLR sono: Pin 1 = schermo o massa Pin 2 = + positivo o "caldo"...
  • Page 16 PROEL S.p.A. (World Headquarters - Factory) Via alla Ruenia, 37/43 64027 Sant’Omero (TE) - ITALY Tel. +39 0861 81241 Fax +39 0861 887862 proelgroup.com...
