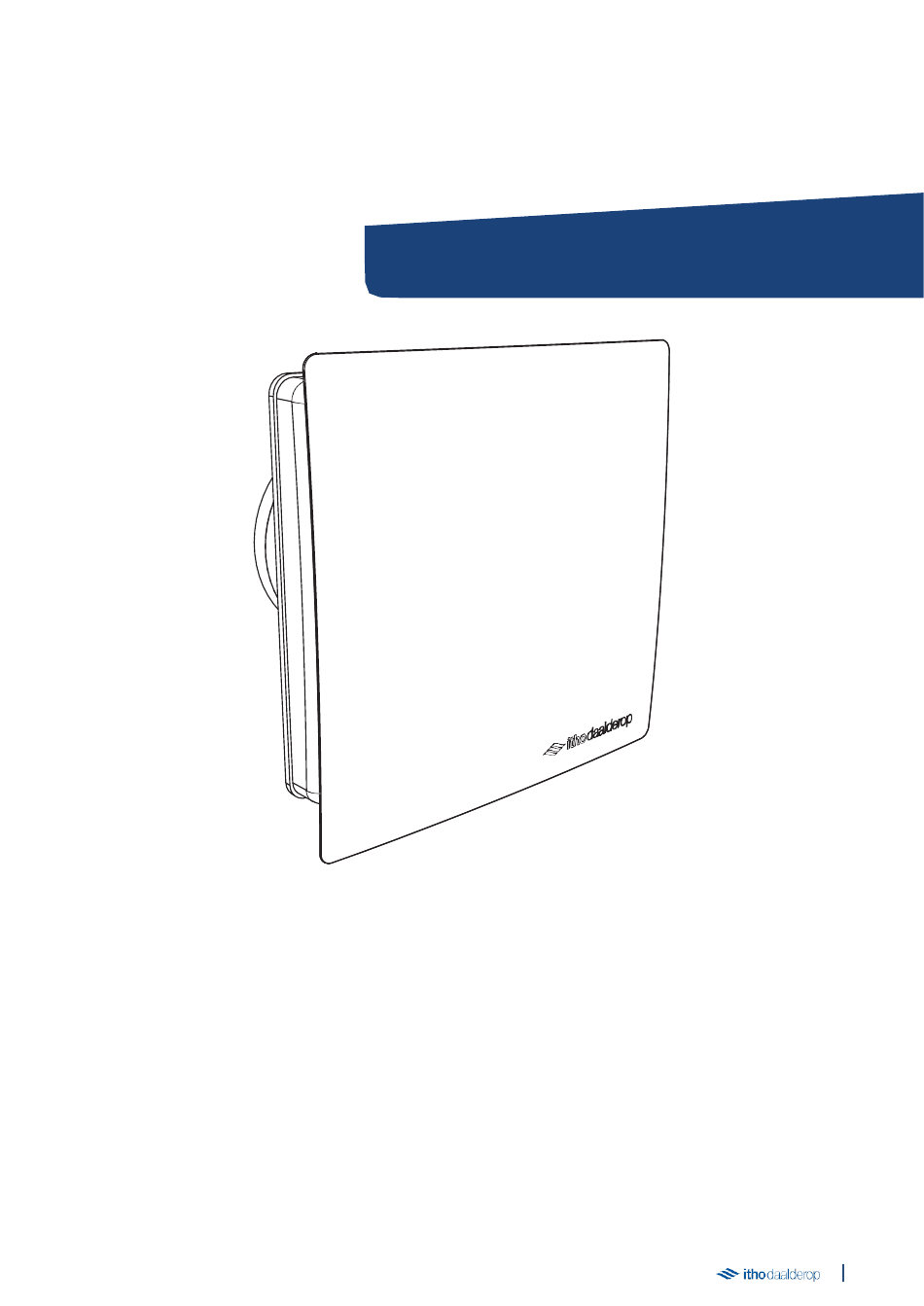

- Page 1 Itho Daalderop BTV-ssst Manual...
-
Page 2: Safety And Regulations
1. Safety & regulations The unit must absolutely NOT be used for ● the discharge of hot air into ducts intended for the flue gas of stoves or 1.1. Safety other combustion appliances. The air Work on the ventilation system may only ●... - Page 3 Safety instructions must be followed in You want to clean the product. ● order to avoid physical injury and/or Want to carry out damage to the product. maintenance on the device. Maintenance and cleaning may only ● The government advises to close be carried out after the appliance windows and doors in case of calamity.
- Page 4 1.1.1. Standards and guidelines Warning! The specifications and settings of the appliance comply exclusively with the standards and laws of the country in which the appliance is sold. Applications outside this country can lead to very dangerous situations! The installer must ensure that the entire installation meets the legal requirements, the regulations contained in this document and any other applicable manufacturer's documentation.
-
Page 5: Product Information

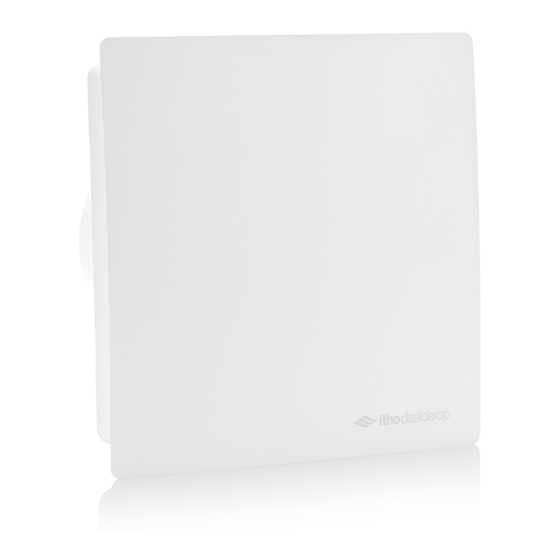

2. Product information The BTV-ssst is a fan with a propeller for direct air extraction, 2.1. Versions possibly via a short pipe, suitable for installation in the wall or ceiling. Article Type Description 53-00355 BTV-ssst Bathroom and toilet fan white,... - Page 6 2.3. Product card information Itho Daalderop Description Symbol Unit BTV-ssst BTV-ssst T BTV-ssst HT Specific energy consumption class - — - — Specific energy consumption, under cold climate conditions kWh/( Specific energy consumption, under moderate kWh/( climate conditions Specific energy consumption, under warm climate conditions kWh/(m2.a)
-
Page 7: Scale Drawings
(light) switch. 2.7.2. Timer control The BTV-ssst T and BTV-ssst HT are equipped with a time switch and are ideal for applications where post-ventilation is required, such as in toilets. The fan is switched on via the light switch or a separate switch and continues to run for approximately 10 minutes after it has been switched off. - Page 8 Upon delivery, the humidity control is set to approximately 75%. 2.7.4. Operating the fan The BTV-ssst is operated using the light switch or a separate switch. As soon as the switch is turned on, the fan switches on. As soon as the switch is turned off, the fan also switches off or continues to run temporarily, depending on the control.
-
Page 9: Installation Requirements
3.2. Installing the fan 6 mm The bathroom toilet fan BTV-ssst should be mounted in the wall or ceiling. c) Drill the necessary holes for the plugs supplied. Use the rear part of the fan itself as a marking template or use the dimensional drawings. - Page 10 Mount the cable with the supplied strain relief. Connect the wiring as indicated in the chapter "Connecting the power e) Drill a hole for the power cable in the rear of the enclosure, supply". or go to step f if a cable tray is used. Go to step h if no cable tray is used.
-
Page 11: Setting The Flow Rate
Jumper positions for the BTV-ssst 45 m³/h 75 m³/h Mounting the power cable under the strain relief Jumper positions for the BTV-ssst T and HT Connection diagram BTV- ssst Connection of light point Wiring diagram for BTV-ssst T and HT... -
Page 12: Setting The Timer
4. Set up 4.2. Setting the Hygrostat 4.1. Setting the Timer TIMER TIMER Switching on by the humidity switch takes place automatically if the humidity level in the room exceeds the set value. The switching point (relative humidity) can be set between 40% (counterclockwise) and 95% (clockwise) by means of the setting The timer (delay time) can be set. - Page 13 6. Faults Warning! The user/consumer must not open the device! The fan does not run any more Cause Solution a) The main switch is in the OFF position. ● Set the main switch to On. b) The fan is not (properly) electric ●...
-
Page 14: Warranty
7. Warranty For all Itho Daalderop products, a standard factory guarantee of two years applies. Within this period, the product or its parts will be repaired or replaced free of charge. Provisions and exclusions are included in our guarantee conditions. - Page 15 BTV-ssst: Bathroom and toilet fan choice of 2 speeds BTV-ssst T: Bathroom and toilet fan with timer and choice of 2 speeds BTV-ssst HT: Bathroom and toilet fan with timer and humidity sensor and choice of 2 speeds DirectivesHarmonised European standards...
- Page 16 Netherlands Itho Daalderop Admiraal de Ruyterstraat 2 3115 HB Schiedam E idsupport@ithodaalderop.nl I www.ithodaalderop.nl Only installers: T 010 427 85 65...
