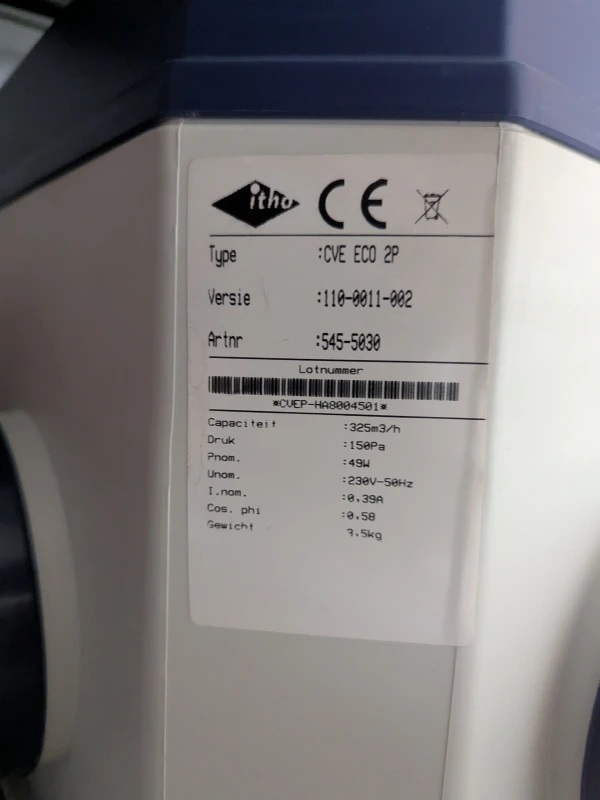

What year is Itho cve 2p 525 5030

User image 6829e8e44f900
0

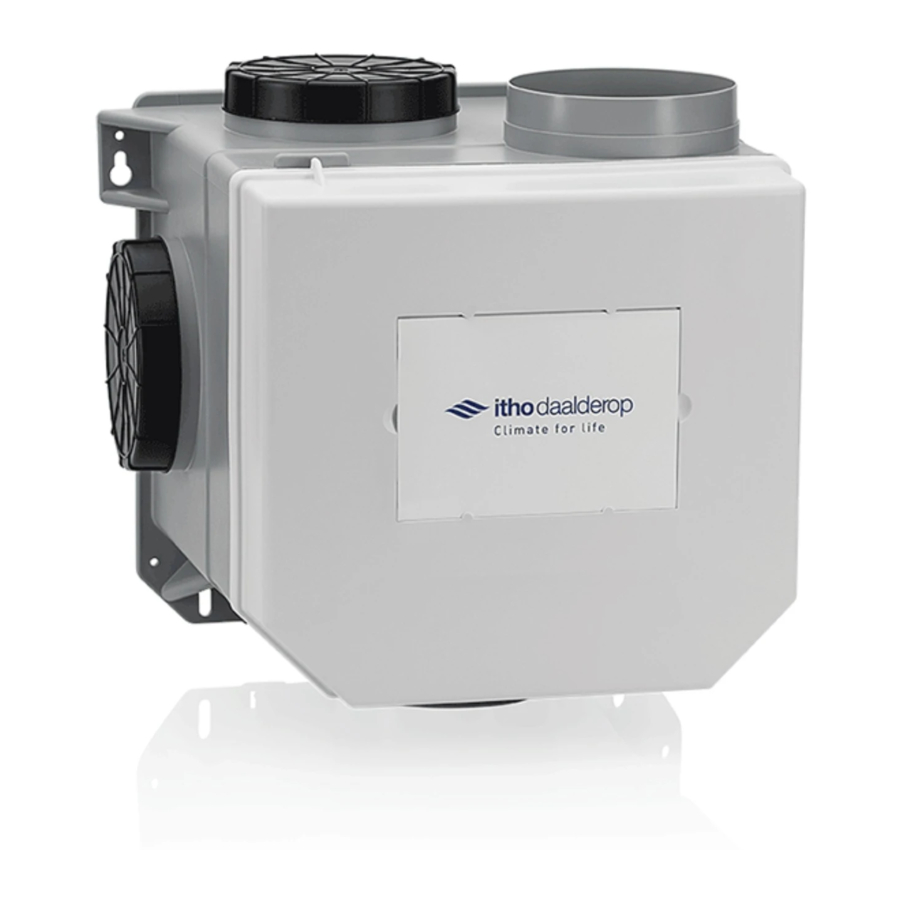

Related Manuals for Itho Daalderop CVE-S ECO

Summary of Contents for Itho Daalderop CVE-S ECO

  • Page 1 Itho Daalderop CVE-S ECO Installation & use...
  • Page 2 Original document.
  • Page 3 Foreword This manual is intended for the user and approved ä Attention installer of the product and contains important information on installation, use, maintenance and malfunctions. Instruction relevant to the installation, operation, The installer is responsible for the installation and operation or maintenance of the product.
  • Page 4 Itho Daalderop! Although this manual has been compiled with the utmost care, no rights can be derived from it. Itho Daalderop reserves the right to change products and manuals without prior notice. Due to our continuous process of improving our products, this document may differ from the product delivered to you.

  • Page 5: Table Of Contents

    Content Safety and regulations Commissioning 1.1. Security 5.1. Adjusting capacity 1.2. Standards and guidelines Inspection & Maintenance Product information 6.1. Inspection 2.1. Product description 6.2. Maintenance 2.2. Versions EN 2.3. Accessories 2.4. Technical Specifications Service parts 2.5. Capacity 2.6. Product card information 2.7.

  • Page 6: Safety And Regulations

    1. Safety and regulations ● 1.1. Security Do not use the product for ● Work on the ventilation purposes other than those system may only be carried for which it is intended, as described in this manual. out by approved installers accordance with the ●...
  • Page 7 ● ● This product and/or system Cleaning and maintenance by may be operated by children the user must not be carried aged 8 years and over and by out by children or by persons persons with reduced with reduced physical, physical, sensory or mental sensory or mental capabilities capabilities or lack of...
  • Page 8 ● ● Safety instructions must be Secure the system against followed to prevent physical unintentional reactivation. injury and/or damage to the ● Maintenance instructions must product. be followed to prevent damage ● Maintenance and cleaning and excessive wear and tear. may only be carried out after ●...
  • Page 9 Make sure that the appliance defects, switch off the product drains into a drain that is and contact your installer or suitable and laid for this the Itho Daalderop service purpose and that drains to the department immediately. outside. ●...

  • Page 10: Standards And Guidelines

    1.2. Standards and guidelines ä Warning! The specifications and settings of the appliance only comply with the standards and laws of the country in which the appliance is sold. Applications outside this country can lead to very dangerous situations! The installer must ensure that the entire installation complies with the legal requirements, the regulations contained in this document and other applicable documentation from the manufacturer.

  • Page 11: Product Information

    'stuffy' due to an increasing concentration of CO2 (carbon dioxide). Itho The CVE-S ECO is now also equipped with a built-in Daalderop develops equipment that regulates the indoor humidity sensor as standard. Thanks to its smart control,...

  • Page 13: Versions En

    2.2. Versions EN Article Type Description 03-00398 CVE-S ECO SE Ventilation unit standard, Int. Stainless steel sensor, euro plug 03-00400 CVE-S ECO SP Ventilation unit standard, Int. Stainless steel sensor, Perilex plug 03-00402 CVE-S ECO HE Ventilation unit high performance, geïnt. RH sensor, euro plug...

  • Page 14: Technical Specifications

    2.4. Technical Specifications CVE-S ECO Description Symbol Unit DIMENSIONS AND WEIGHT — Dimensions (HxWxD) 350 x 355 x 294 — Weight CONNECTIONS — Connections from home 4x Ø 124 — Connection to the outside 1x Ø 124 GENERAL — —...

  • Page 15: Capacity

    2.5. Capacity m3/h Type S Pressure (Pa) Power (W) Capacity ( Setting 1 minimum Stand 1 standard Setting 1 maximum Position 2 standard Setting 3 minimum 10,2 Stand 3 standard 18,7 Setting 3 maximum m3/h Type H Capacity ( Pressure (Pa) Power (W) Setting 1 minimum Stand 1 standard...

  • Page 16: Product Card Information

    2.6. Product card information Itho Daalderop CVE-S ECO Description Symbol Unit — — Specific energy consumption class Specific energy consumption, under moderate kWh/( climate conditions Specific energy consumption, under warm kWh/( climate conditions Specific energy consumption, under cold kWh/(m2.a) climate conditions Residential ventilation unit (RVE) —...
  • Page 17 Itho Daalderop CVE-S ECO Description Symbol Unit Percentage of external leakage for one-way ventilation — units with air ducts Instructions for the installation of regulated — — Not applicable suction/injection/injection systems. Extractor grilles in the façade for natural air inlet/outlet —...

  • Page 18: Improve Energy Label

    2.7. Improve energy label the product bears the symbol of a crossed-out dustbin. This means that at the end of its service life, the product Improve the energy label of the ventilation system by must not be disposed of with ordinary household waste. applying one or more sensors or additional components.

  • Page 19: Installation

    Installation 3.1. Installing the ventilation unit Attach the ventilation unit, preferably in a closed room, ä Warning! with the appropriate screws and the mounting holes to a (sloping) wall or ceiling/floor with sufficient load-bearing When the unit is used in a stacked construction, a capacity (>...

  • Page 20: Connecting Electrically

    3.2. Connecting electrically 3.2.2. Connecting with Perilex plug If the unit is equipped with a Perilex plug: The ventilation unit can be connected electrically in various ways: Connect the unit to a Perilex wall outlet (possibly ● in combination with a wired 3-position switch) With a Euro plug.
  • Page 21 3 2 1 Kleur Stand Functie Connection green / earth mains power yellow blue zero mains power mains supply / brown solid state switch middle / grey link switch / unit black high link switch / unit...

  • Page 22: Operation

    4. Operation > >. . > S® > . --$--- ithodaalderop...
  • Page 23 Various positions are pre-programmed in the ventilation The ventilation unit can be set to one of the following unit. A number of control switches are available for positions as required: active tuning to the correct stand/ventilation capacity: ● Position 1, position: when one person is present Wireless control switch with two positions, an during the day or night or when nobody is present.
  • Page 24 ä Attention ä Attention After the timer has elapsed, the unit will return to the last mode selected before the timer was switched on, unless Auto-Night mode is only available when one Auto-Night mode does not switch off this is the high mode. In this case, the unit switches to is used.

  • Page 25: Subscribe And Unsubscribe Rf Controls

    4.1.2. Logout RF controls Note Sign off a wireless control switch in the vicinity of the The current ventilation position can always be read on ventilation unit. the (optional) external or RH sensor. CO2 sensor Disconnect the power supply, wait 15 seconds and revive the ventilation unit.

  • Page 26: Commissioning

    Commissioning ● External and internal doors must be closed. ä Attention ● There must be sufficient flow-through space Increasing the maximum speed causes more noise under the inner doors. and higher energy consumption. ● The adjustable valves must be fully open in all rooms.
  • Page 27 If the adjustment of the valves does not produce the ä Attention desired air flow, you can increase the maximum speed of the ventilation unit by further opening the potmeter of the If an RF control or RF sensor of an adjoining house maximum speed (see section Setting the capacity).

  • Page 28: Adjusting Capacity

    5.1. Adjusting capacity are reflected in the system design calculations or flow measurements. Remove the lid by using a flat screwdriver to unlock ä Attention the clamping cams at the top and bottom. After this you can remove the lid. The capacities (high and low position) of the ventilation unit must be adjusted during commissioning!
  • Page 29 Max. m3/h m3/h m3/h CVE-S ECO S m3/h m3/h m3/h CVE-S ECO H 275 5.1.2. Adjusting low setting CVE-S ECO If necessary, adjust the low setting with the right potentiometer (L). Lowest Default setting Setting range position Min. Max. m3/h...

  • Page 30: Inspection & Maintenance

    6. Inspection & Maintenance 6.1.1. Ventilation unit inspection 6.1. Inspection The ventilation unit must remain accessible for Correct functioning of the ventilation system, efficiency maintenance at all times. The ventilation unit requires and service life can only be guaranteed if the system is little maintenance.
  • Page 31 6.1.2. Fan inspection 6.1.3. Inspection RF control Regularly check that the RF control is still working by ä Attention switching the ventilation unit to another position. Contact a qualified installer if the unit no longer reacts. Replacement of parts or cleaning of the impeller may only be carried out by a qualified fitter! 6.1.4.

  • Page 32: Maintenance

    6.2. Maintenance 6.2.2. Maintenance RF control The wireless control switch is powered by a battery. To ensure correct operation, efficiency and service Under normal use, the battery has an expected service life, the appliance must be maintained in accordance life of about 7 years. When the battery is empty, the with the following paragraphs.
  • Page 33 6.2.4. Inspecting/cleaning channels ä Attention It is advisable to check the channels in the house once When cleaning, do not adjust the setting of the every 4 years. The ducts should be cleaned once every 8 valves and put the valves back in the duct of origin. years.
  • Page 34 6.2.5. Cleaning of the impeller Remove the motor plate, complete with motor If inspection reveals that the blades are seriously soiled, and impeller and circuit board housing. the impeller must be cleaned by the installer: Disconnect the ventilation unit from the power supply. Dismantle the lid as mentioned in Setting high and low.
  • Page 35 Clean the impeller with a soft brush. Make sure that In case of severe soiling, it is advisable to clean the any balancing clips remain on the impeller. RH sensor and the housing around it (A) also with a soft brush. To do this, remove the circuit board from the housing.

  • Page 36: Service Parts

    7. Service parts Please check our website for the latest information on the service components.
  • Page 37 Article Type Description 05-00490 CVE-S LID WHITE CVE-S ECO Front lid 05-00494 CVE-S SERVICE MODULE S Service module CVE-S ECO S 05-00495 CVE-S SERVICE MODULE H Service module CVE-S ECO H 05-00489 CVE-S CAP BLACK Plastic cap black 545-5118 UK 1500 E...

  • Page 38: Malfunctions

    8. Malfunctions ä Attention Malfunctions may only be remedied by a qualified fitter! The fan is no longer running Cause Solution ● a) The plug of the ventilation unit is not plugged into a wall Plug the plug into a wall socket. socket.
  • Page 39 The fan always runs at the same speed and does not react to the remote controls Cause Solution ● a) The battery of a paired RF control, sensor is empty. Replace the battery. ● (b) The distance between the fan and the RF control is Move the RF control if the wireless signal is too great or the signal encounters too many affected by the presence...
  • Page 40 The remote control does not work (anymore) Cause Solution ● a) The battery of a paired RF control, sensor is empty. Replace the battery. ● (b) The distance between the fan and the RF control is Move the RF control if the wireless signal is too great or the signal encounters too many affected by the presence obstacles.
  • Page 41 The ventilation unit does not respond to the 3-position switch Cause Solution ● a) The plug of the ventilation unit is not plugged into a wall Plug the plug into a wall socket. socket. ● b) There is no voltage at the socket outlet. Restore the voltage at the wall socket.
  • Page 42 The fan suddenly turns much faster Cause Solution ● An increase in humidity has been detected by the RH This is not a malfunction. sensor, which automatically switches the ventilation unit to a higher position. ● An increase in concentration has been detected This is not a malfunction.
  • Page 43 The ventilation unit does not respond (anymore) to the RF sensors (PIR sensor, 230V, RV sensor). CO2 sensor Cause Solution ● a) The system is not in Auto mode. If desired, set the system to position 2/ AUTO. ● Restore tension. b) In the case of an RF-CO2 sensor 230V: the sensor has no voltage.
  • Page 44 Turning the fan does not correspond to the position of the bedieningsschakelaar Oorzaak Solution ● An increase in humidity has been detected by the RH This is not a malfunction. sensor, which automatically switches the ventilation unit to a higher position. ●...

  • Page 45: Warranty

    9. Warranty All Itho Daalderop products come with a standard two- year manufacturer's warranty. Within this period, the product or parts thereof will be repaired or replaced free of charge. Provisions and exclusions are included in our guarantee conditions. See the product page on our website for full warranty terms and/or additional warranty terms or conditions.

  • Page 46: Statements

    Electromagnetic Compatibility Directive Declare that the product | Declares that the product (EMC) 2014/30/EU Directive establishing a framework for the Ventilation unit - CVE-S ECO HE setting of ecodesign requirements for energy- Ventilation unit - CVE-S ECO SE related products 2009/125/EC...
  • Page 47 ● Commission Regulation (EU) No 1253/2014 of AND 55014-1:2007 | AND 55014-1:2007/C1:2009 7 July 2014 implementing Directive AND 55014-1:2007/A1:2009 | AND 55014- 2009/125/EC of the European Parliament and 1:2007/A2:2010 AND 55014-2:1998 | AND 55014- of the Council with regard to ecodesign 2:1998/C1:1998 requirements for ventilation units AND 55014-2:1998/A1:2002 | AND 55014-...
  • Page 48 Netherlands Itho Daalderop Admiral de Ruyterstraat 2 3115 HB Schiedam E idsupport@ithodaalderop.nl I www.ithodaalderop.nl Consult your installer if you have any questions. If you do not know the installer, please visit www.ithodaalderop.nl/dealerlocator.

This manual is also suitable for:

Cve-s eco seCve-s eco spCve-s eco heCve-s eco hpCve-s pakCve-s pak spi ... Show all
