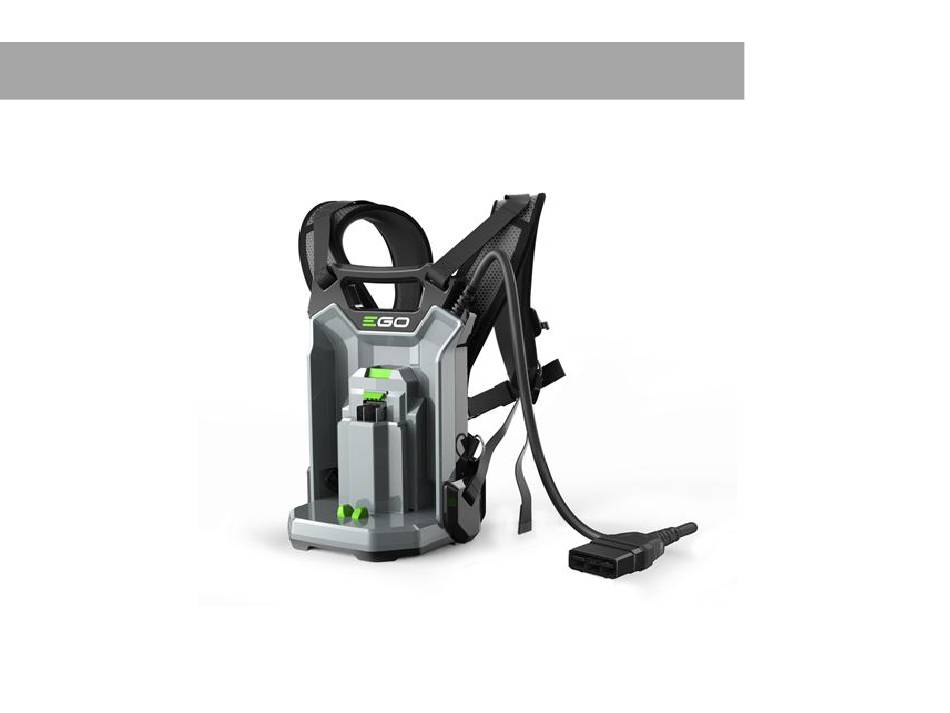

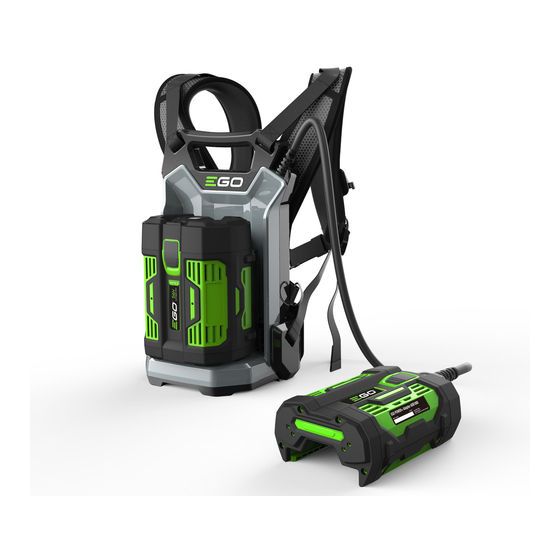

- Page 1 REPAIR GUIDELINE BACKPACK HARNESS_BH1000 Version: 1 Issue Date: 2017/09/11...
- Page 2 BH1000 Backpack Harness 1. Remove the battery from the backpack harness. 2. Remove the strap and hook from harness (refer to the operator’s manual). Backpack subassembly Strap Hook Description Part Number QTY. Backpack subassembly 2825497001 Hook 3129102001...
- Page 3 BH1000 Backpack Harness 3. Loosen and remove the 10 screws to disassemble the rear housing. Rear housing Tapping screw Description Part Number QTY. Rear housing 3322283001 Tapping screw 5610294001...
- Page 4 BH1000 Backpack Harness 4. Loosen screw 1&2 to remove cord anchor, disconnect connectors 1&2 and remove the power cord ASSY. If power cord ASSY is broken, replace it with a new one. Note : Align the wires in the Tapping screw...
- Page 5 BH1000 Backpack Harness 5. Loosen screws 3,4,5,6,11&12 then remove the cord anchor, which is attached with a sponge pad. Disconnect connectors 1&2 to totally separate the electric assembly from the front housing. Cord anchor Note: Align the wires in the...
- Page 6 BH1000 Backpack Harness 6. Loosen 7,8,9&10 to remove the dust cover. Replace the broken one in the below table. Front housing Support Spring Dust Cover Power pack button #1 Power pack button #2 Description Part Number QTY. Description Part Number QTY.
- Page 7 BH1000 Backpack Harness NOTICE: When assembling the power pack button #1 and power pack button #2 into the front housing, pre-assemble the spring onto the power pack button #1 and and then follow the steps below to locate the buttons into the groove of the housing.
- Page 8 BH1000 Backpack Harness 7. Loosen the 4 screws to remove the bottom support. Bottom support Description Part Number QTY. Bottom support 3129071001 Tapping screw 5610294001...
- Page 9 BH1000 Backpack Harness 8. Remove the white lever and torsion spring. Remove 8 screws and cord anchor to disassemble the ejection mechanism . If any part is broken, replace it accordingly. Cord anchor White lever Torsion spring Ejection mechanism Description Part Number QTY.
- Page 10 BH1000 Backpack Harness 9. Assemble all parts in reverse order. Bottom support Rear housing Note: There is no specific order for assembling the bottom support and the rear housing. Finally, assemble back the strap and the hook(refer to the operator’s manual).
