Snapper PRO Setup Instruction page 5

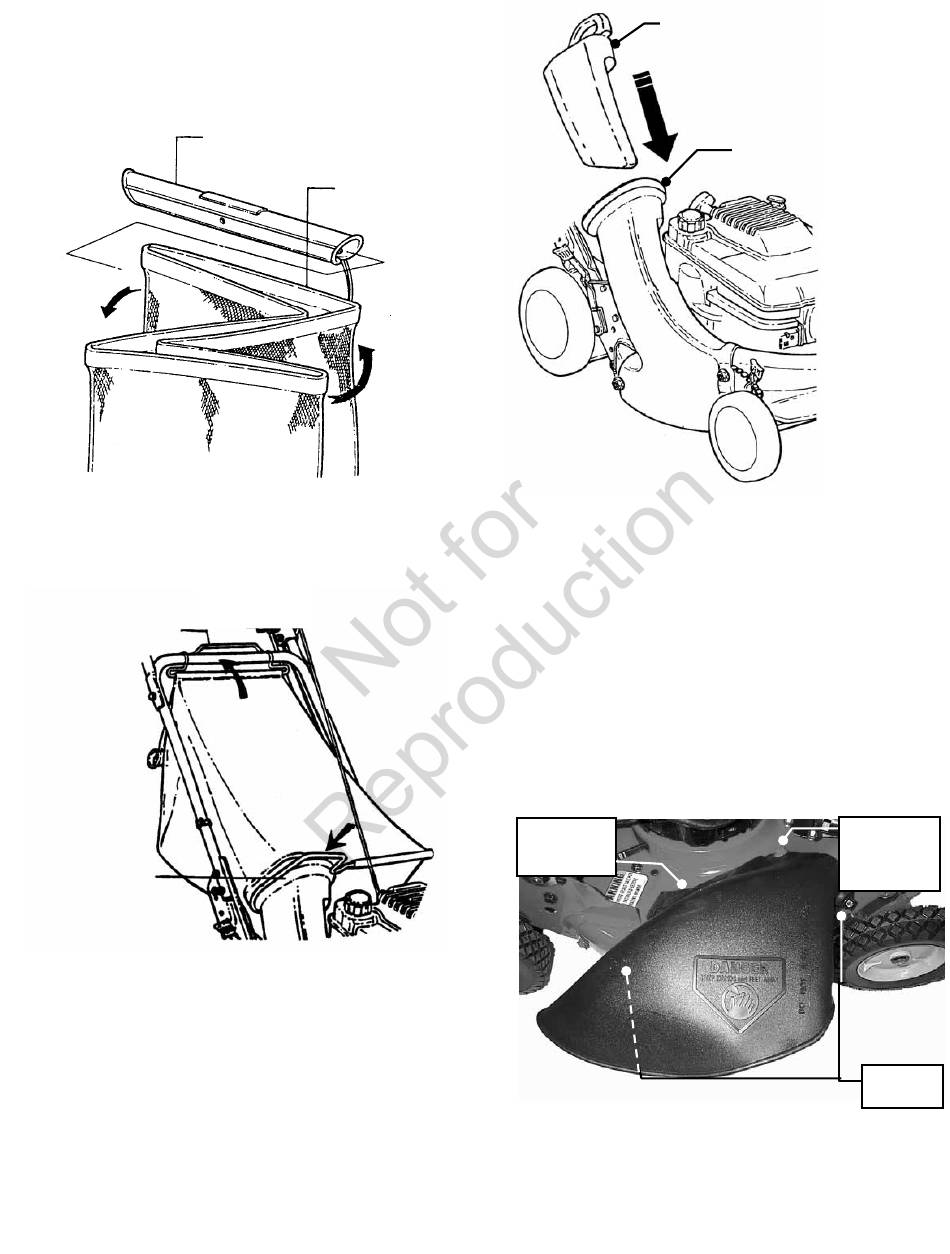

STEP 3: Install the top wire to the grass bag. Tie the
slider to the top wire. Fold bag opening into a "Z" and
install slider. See Figure 16.
STEP 4: Install grass bag on the mower as shown in
Figure 17.
HOOK BAG HANDLE
OVER MIDDLE HANDLE
SLIDE CONNECTOR
OVER END OF
ADAPTER FLANGE
RECYCLING PLUG
(Optional Accessory on Some Models)
Once grass bag assembly has been installed, recycling
may be desired. Remove grass bag. Insert recycling
plug completely and securely into adapter. See Figure
18. Reinstall grass bag as a safeguard.
BAG
SLIDER
"Z" FOLD BAG
AS SHOWN
FIGURE 16
FIGURE 17
DISCHARGE DEFLECTOR
(Optional Accessory on Some Models)
Install discharge deflector if discharging is desired:
A. Remove grass bag from handle and bag
adapter.
B. Remove front and rear nuts attaching bag
adapter to deck, and remove bag adapter.
C. Install discharge deflector and secure to deck
using hardware just removed in Step B. Slot in front
edge of discharge deflector must be under nut as
shown and both bolts protruding through holes in
the side of the deflector. Secure nuts to the side of
deflector. Tighten nuts securely. See Figure 18.
INSTALL
DISCHARGE
DEFLECTOR
5
PLUG
INSERT RECYCLING PLUG
COMPLETELY AND SECURELY
INTO ADAPTER. INSTALL
GRASS BAG.
ADAPTER
FIGURE 18
SLIDE
DEFLECTOR
SLOT
UNDER NUT
FIGURE 18
INSTALL
NUTS
