- Page 1 Complete 12 Complete 15 Specifications & rigging guide 2 Merezhna str., Bila Tserkva, Kiev oblast, 09112, Ukraine v1.1...
-
Page 2: System Application

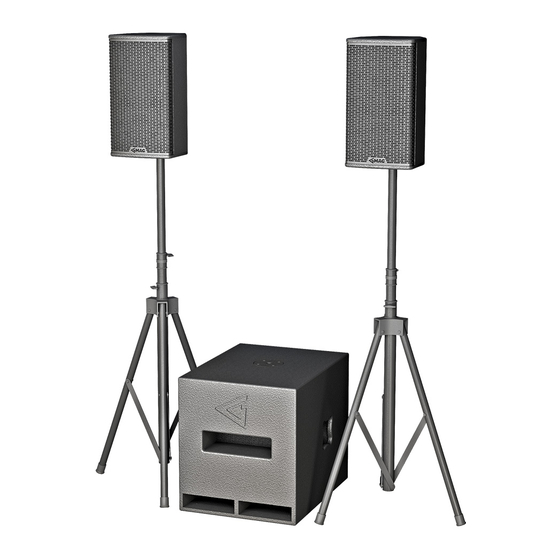

CONTENTS This contents & System application ............Complete 12 specifications ..............Complete 15 specifications ..............Installation options & Accessories ............Connections & integrated processor setups ........SYSTEM APPLICATION Complete series speaker sets offer complete sound rein- forcement solution for portable and fixed installations alike. - Page 3 Complete 12 Portable speaker set Complete 12 is small and powerfull speaker set for small installations or mobile FOH. Full-range speakers are based on 8” cone driver and 1” HF driver on a exponential horn, and are backed with effective 12” subwoof- er, housing amplification, crossover and EQ for the entire system.
- Page 4 Complete 15 Portable speaker set Complete 12’s big brother, Complete 15 is packing even more power, still remaining mobile and affordable. Satellites house 10” cone and 1” HF drivers. 15” effective subwoofers have built-in amplification, crossover and EQ for the entire system.
-
Page 5: Installation Options
Installation options Installation with tripod Installation with double stand distance pole stand Accessories Double distance 80 mm castor Tri-pod speaker pole stand wheels stand optionaly available for subwoofers Transportation bags 2 Merezhna str., Bila Tserkva, Kiev oblast, 09112, Ukraine v1.1... - Page 6 Connections Preset switch Complete 12 & Complete 15’s amplifiers are built into subwoofers, with passive satellite connection. Use XLR-XLR cables to connect amplifier’s input to signal source (e.g., mixer). Use IEC standard mains cable to power the amplifer. Use 1+ 1- Speakon - Speakon cables to connect both satellites to the subwoofer.
