- Page 1 OPERATION AND MAINTENANCE MANUAL Portable digital temperature meter Art. T063 ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of its issuance (shown in this page). On the other hand, the instrument may also be subject to important technical changes in the future, without the manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 2 December 2013...
- Page 3 MEASURING INSTRUMENTS FOREWORD INTRODUCTION ..................4 DESCRIPTION ................... 5 SPECIFICATIONS ..................7 General Characteristics ....................7 MEASURING PROCEDURE:................. 8 Using the thermocouple "K" type short.................8 Using the thermocouple "K" type medium ..............8 Page 3 of 8...

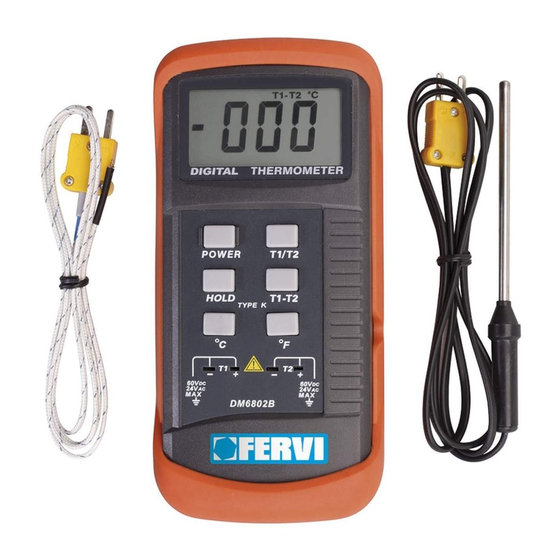

- Page 4 MEASURING INSTRUMENTS 1 INTRODUCTION The portable digital temperature meter is a high precision instrument and allows a wide range of measurements to be taken. It is equipped with a standard socket for type "K" probes. It is built with a unique microprocessor which provides high reliability and accuracy when taking measurements.
- Page 5 MEASURING INSTRUMENTS 2 DESCRIPTION Screen On / off button Data storage button Degrees Celsius Degrees Fahrenheit Resolution button T1/T2 temperature measurement button T1T2 temperature difference measurement button In the event a "1" is displayed on the screen, it could mean that the thermocouple is not inserted, or is inserted incorrectly or the temperature exceeds the allowable measurement scale.
- Page 6 MEASURING INSTRUMENTS Measured value display Degrees Celsius Degrees Fahrenheit Last item of data stored Battery charge indicator Measurement 1 Measurement 2 Temperature difference measurement Page 6 of 8...
- Page 7 MEASURING INSTRUMENTS 3 SPECIFICATIONS 3.1 General Characteristics Screen: LCD 3” 1/2 screen -50°C~1200°C ± (0.3%+2°C) -58°F~1200°F ± (0.3%+2°F) Accuracy: 1200°C~1300°C ± (0.6%+2°C) 1200°F~1999°F ± (0.6%+2°F) Resolution: 1°C/°F Scales: degrees Celsius and degrees Fahrenheit -50°C~1300°C Measurement range: -58°F~1999°F Maximum humidity: less than 85% Power supply: 9V battery Dimensions:...
- Page 8 MEASURING INSTRUMENTS 4 MEASURING PROCEDURE: Turn on the instrument after checking that the battery is charged. Pre-heat the instrument for 1 minute. Plug thermocouples into the measurement outputs T1 and T2, respectively, making sure to insert each plug in the appropriate outlet. Then press buttons "T1/T2"...
