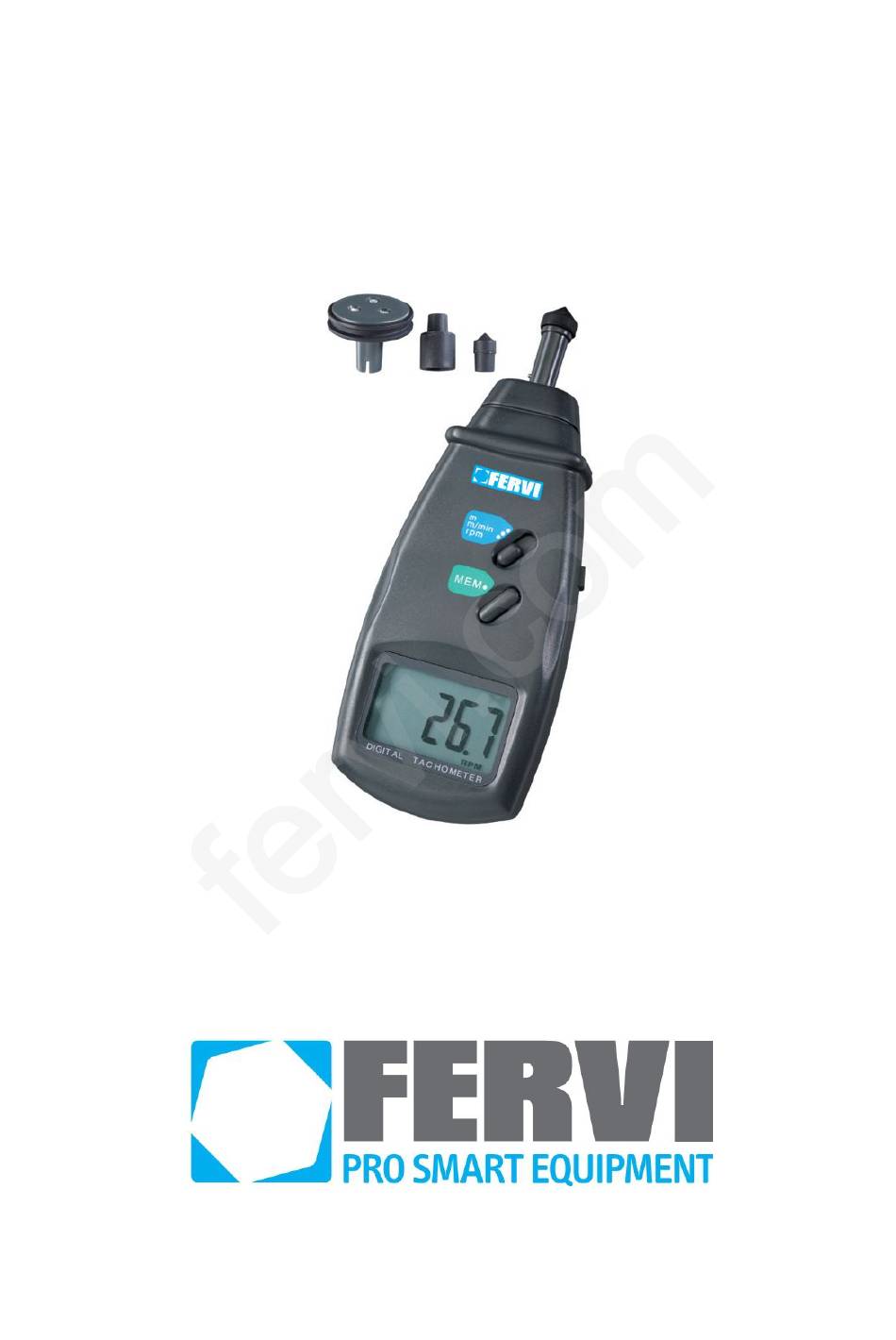

- Page 1 OPERATION AND MAINTENANCE MANUAL Contact type digital tachometer Art. C069 ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of its issuance (shown in this page). On the other hand, the instrument may also be subject to important technical changes in the future, without the manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 2 December 2013...
- Page 3 MEASURING INSTRUMENTS CONTENTS TECHNICAL SPECIFICATIONS ..............4 Technical support......................4 DESCRIPTION OF THE INSTRUMENT ............5 MEASURING PROCEDURE ................6 Measuring the number of revolutions ................6 Measuring peripheral speed ..................6 Measuring peripheral length ..................6 MEMORISED DATA DISPLAY KEY .............. 7 REMOVAL AND REPLACEMENT OF BATTERIES ........... 7 Page 3 of 7...
-
Page 4: Technical Specifications
MEASURING INSTRUMENTS 1 TECHNICAL SPECIFICATIONS Accurate measurement of speed at high resolution. The backlit screen means that the instrument can be operated in any lighting conditions. Digital screen that offers an error-free reading. Wide measuring range and high resolution. ... -
Page 5: Description Of The Instrument
MEASURING INSTRUMENTS 2 DESCRIPTION OF THE INSTRUMENT Figure 1 - Main parts of the tachometer Terminal for measuring peripheral speed Terminal for measuring revolutions per minute rpm Shaft Measuring button Function selection button Stored data display button Screen Battery compartment Socket for 6 V DC power supply Page 5 of 7... -
Page 6: Measuring Procedure
MEASURING INSTRUMENTS 3 MEASURING PROCEDURE 3.1 Measuring the number of revolutions Move the function switch to position "RPM". Install the terminal for measuring r/min, RPM Press the measuring button and lightly press the detection pin (B) against the central hole of the rotating shaft, making sure to keep it properly aligned. - Page 7 MEASURING INSTRUMENTS 4 MEMORISED DATA DISPLAY KEY Immediate reading of the last stored value and the maximum and minimum values by pressing the "F" key. "UP" indicates the maximum value and "dn" indicates the minimum value; "LA" indicates the last value read. 5 REMOVAL AND REPLACEMENT OF BATTERIES If the instrument is not going to be used for a long period of time, it is advisable to remove the batteries.
