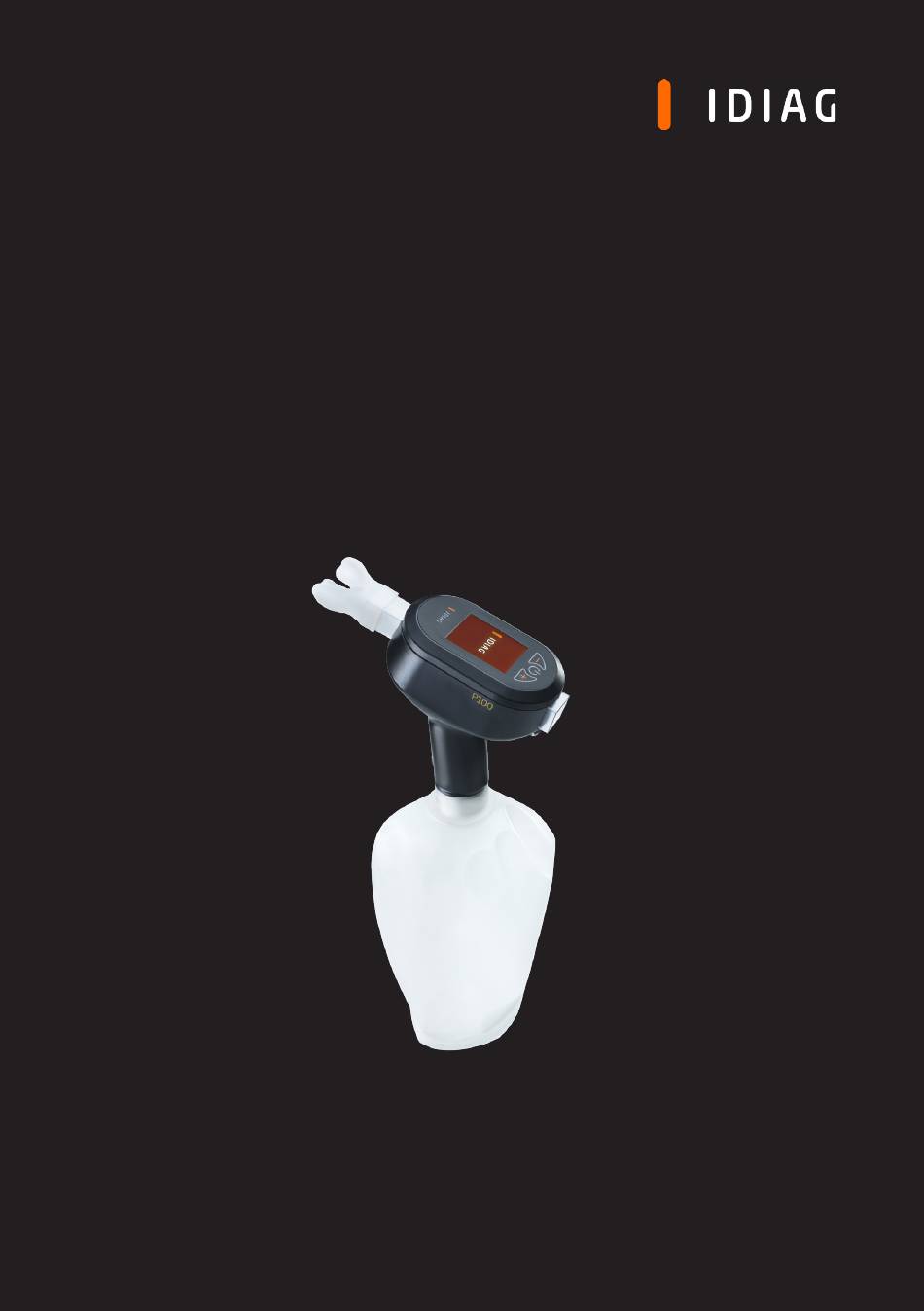

- Page 1 IDIAG P100 QUICK REFERENCE GUIDE PERFORMANCE V1.0...
-
Page 2: Before Operations
3. Insert the air guide into the base module 4. Ensure the air guide is properly inserted into the base module by pressing it into place. 4. Close the Idiag P100 by assembling the base module with the inserted air guide and the detachable module with the inserted battery 1. -
Page 3: Instructional Videos
Only use the supplied charger to charge the battery. Only use the battery supplied with the Idiag P100. Procedure Open the Idiag P100 and install the battery 1, as shown below, with the contacts facing the top. Before closing, carefully check that the battery is installed in the correct position. - Page 4 Turning the device On/Off On/Off button Press the On/Off button for at least one second to turn the Idiag P100 on and off. When turning the device on and off, hold it as still as possible or place it on a firm surface.
-
Page 5: Starting Training
• Free mode: This allows you to immediately commence free training. This mode offers free respiratory training with CO2 regulation, but without individual training settings. • QR Code to download the Idiag P100-sport app: This allows you to activate ad- ditional modes and set your individual training parameters. You can find the Idiag P100sport App in the App Store or in the Google Play Store. - Page 6 Before TRAINING FOR THE FIRST TIME an automatic ASSESSMENT TEST is perfor- med. The Idiag P100 uses this ASSESSMENT TEST to automatically determine your indivi- dual training settings. Follow the menu instructions to do this. The parameters for the various training modes can also be manually adjusted. To do...
- Page 7 3. TRAINING - VISUAL FEEDBACK DURING TRAINING Endurance - breathing depth and breathing frequency Inhale Breathing Exhale Inhale on beep frequency on beep on beep Tidal volume Tidal volume too high. Take shallower breaths! Tidal volume too low. Take deeper breaths!
- Page 8 Strength - threshold value Threshold value achieved, successful breath (is counted). Threshold value not achieved, breath must be repeated with greater force (is not counted). For additional respiratory feedback please download the Idiag P100sport App follow the instructions in the app.
-
Page 9: After Training
Scheduling training STRENGTH Reduces airway resistance by 5% Pause training by pressing >1s Increases airway resistance by 5% ENDURANCE Reduces breathing frequency by 1 breath/min Pause training by pressing >1s Increases breathing frequency by 1 breath/min Pausing training Press the On/Off button for at least 1s to pause training and e.g. adjust the training period, depth of breathing or breathing frequency settings. -
Page 10: Cleaning And Maintenance
5. CLEANING AND MAINTENANCE Cleaning The following information only provides a brief overview of cleaning and handling your Idiag P100. You can find more detailed information in the Idiag P100 User Manual (page 24). Base module / Detachable Mouthpiece / Air guide /... -
Page 11: Important Safety Instructions
• The minimum separation between electric devices with a life-preserving function (e.g. heart pacemakers) and the Idiag P100 is 5 centimetres. • Responsibility for using the Idiag P100 lies solely with the user or his healthcare professional. Idiag assumes no responsibility for the consequences of use and shall not be held liable for any damages whatsoever. - Page 12 SWITZERLAND GERMANY Idiag AG Idiag GmbH Mülistrasse 18 Romanstraße 72 CH-8320 Fehraltorf DE-80639 München +41 44 908 58 58 +49 89 2000 297 20 info@idiag.ch info@idiag.de idiag.ch idiag.de...
