dBm
Advanced Channel Emulator
Dynamic Overview Tab
The Dynamic Overview tab displays all the dynamic data parameters and selected graphs
on a single page (Figure 19).

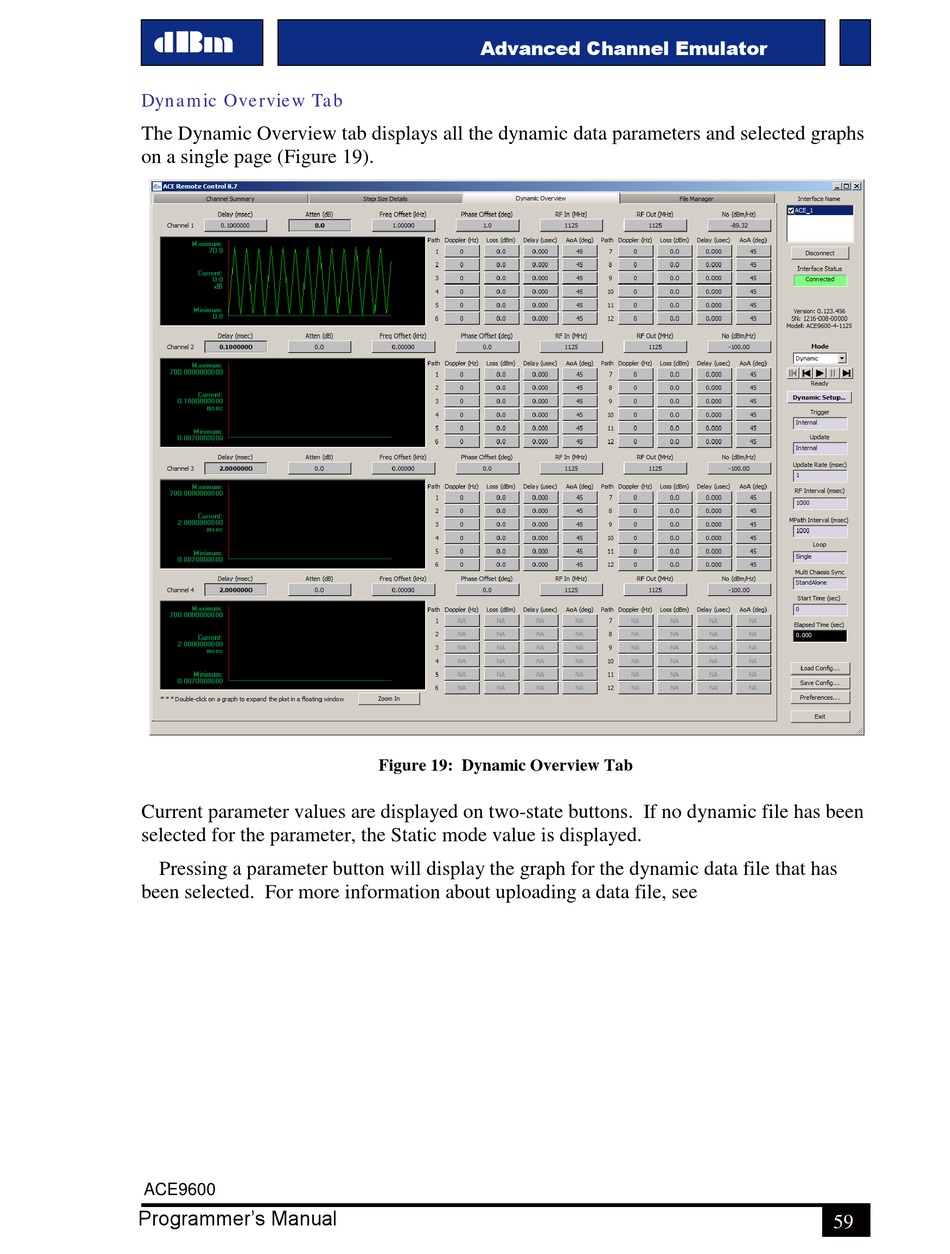

Figure 19: Dynamic Overview Tab
Current parameter values are displayed on two-state buttons. If no dynamic file has been
selected for the parameter, the Static mode value is displayed.
Pressing a parameter button will display the graph for the dynamic data file that has
been selected. For more information about uploading a data file, see
ACE9600
Programmer's Manual
59
