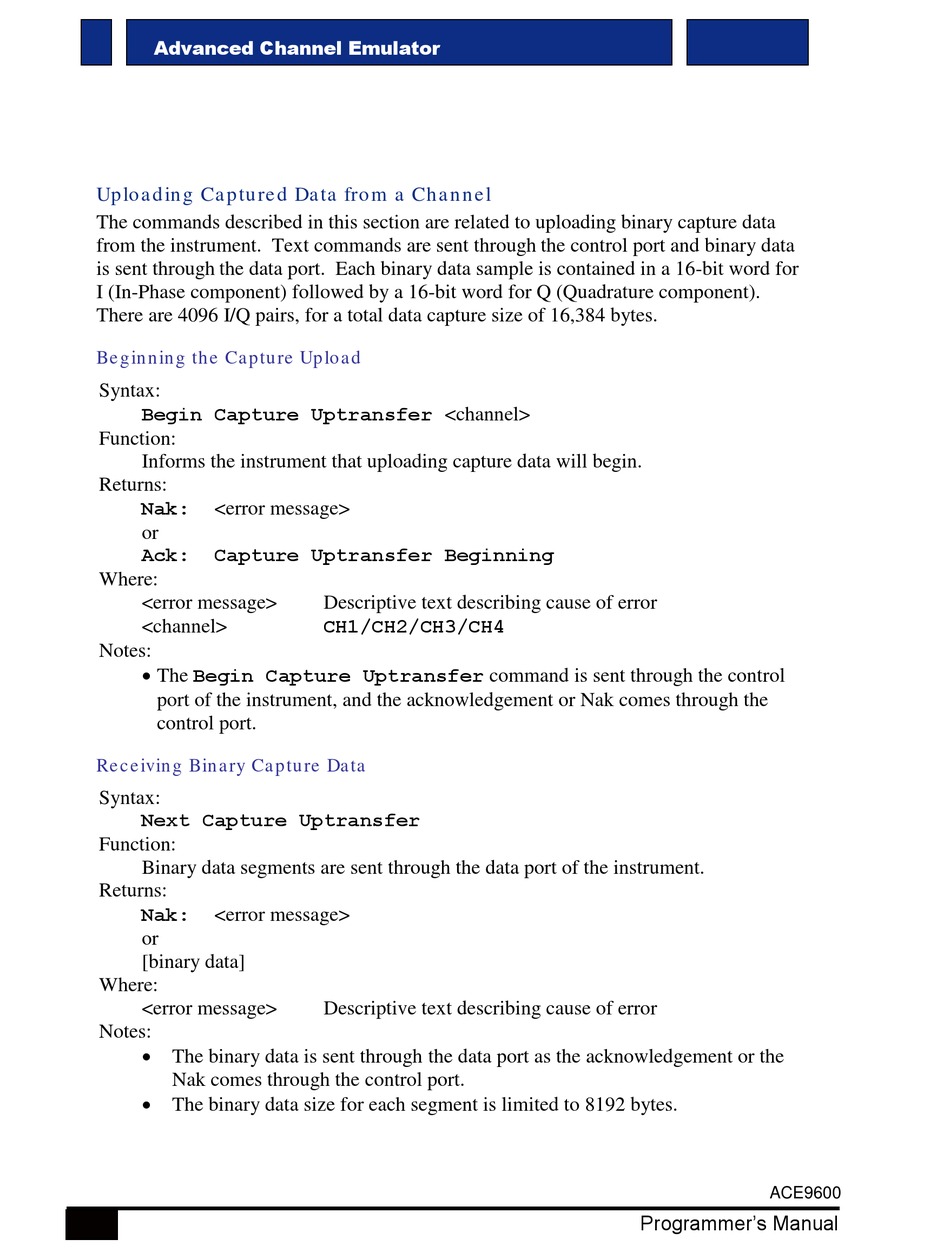

Uploading Captured Data from a Channel

The commands described in this section are related to uploading binary capture data
from the instrument. Text commands are sent through the control port and binary data
is sent through the data port. Each binary data sample is contained in a 16-bit word for
I (In-Phase component) followed by a 16-bit word for Q (Quadrature component).
There are 4096 I/Q pairs, for a total data capture size of 16,384 bytes.

Beginning the Capture Upload

Syntax:
Begin Capture Uptransfer <channel>
Function:
Informs the instrument that uploading capture data will begin.
Returns:
Nak:
<error message>
or
Ack: Capture Uptransfer Beginning
Where:
<error message>
<channel>
Notes:
 The Begin Capture Uptransfer command is sent through the control
port of the instrument, and the acknowledgement or Nak comes through the
control port.

Receiving Binary Capture Data

Syntax:
Next Capture Uptransfer
Function:
Binary data segments are sent through the data port of the instrument.
Returns:
Nak:
<error message>
or
[binary data]
Where:
<error message>
Notes:
 The binary data is sent through the data port as the acknowledgement or the
Nak comes through the control port.
 The binary data size for each segment is limited to 8192 bytes.
38
Descriptive text describing cause of error
CH1/CH2/CH3/CH4
Descriptive text describing cause of error
