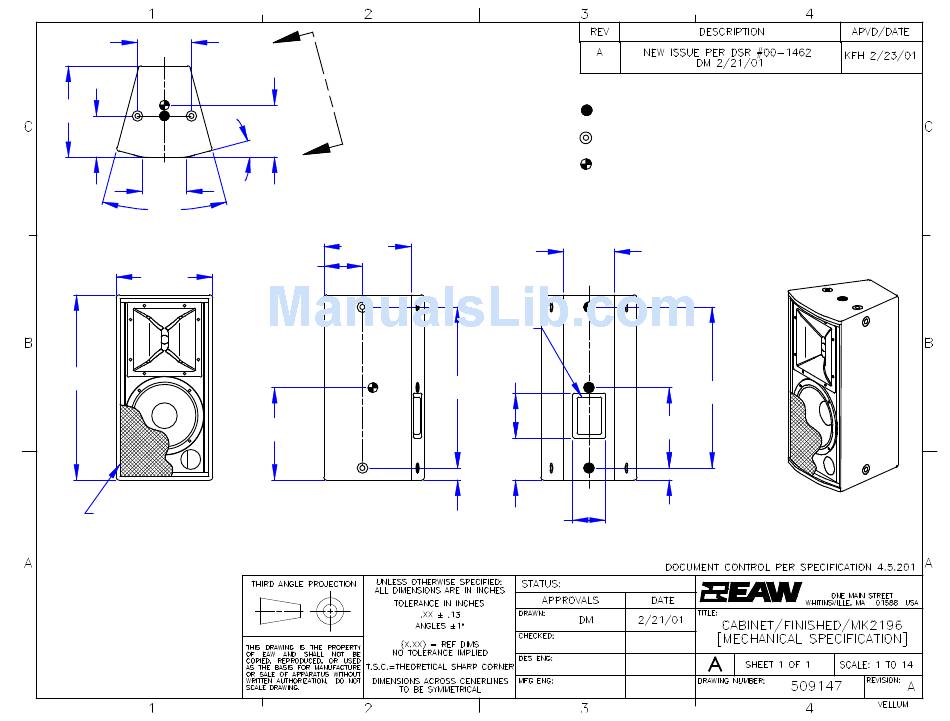

EAW MK2196 Dimensions

8.75
14.75
6.69
L C
7.23
30°
TOP
DIMENSIONS APPLY
TO TOP AND BOTTOM
15.54
30.00

GRILLE PARTIALLY SHOWN

FRONT
A
7.25
15°
A
14.12
(6.27)
15.00

VIEW A-A

DIMENSIONS APPLY
TO BOTH SIDES

NOTES:

1. SYMBOL INDICATES MOUNTING POINT 3/8-16
THREADED HOLE (NUT PLATE).
2. SYMBOL INDICATES MOUNTING POINT 3/8-16
THREADED HOLE (PI ANGLE).
3. SYMBOL INDICATES CENTER OF BALANCE.

4. WEIGHT APPROX 60 LBS.

5. SHIPPING WEIGHT APPROX 70 LBS.

(8.23)
L C
INPUT
7.25
26.10
6.81
5.25
1.95
BACK
PROTOTYPE
26.07
13.03

MK2196

1.97
EASTERN ACOUSTIC WORKS
