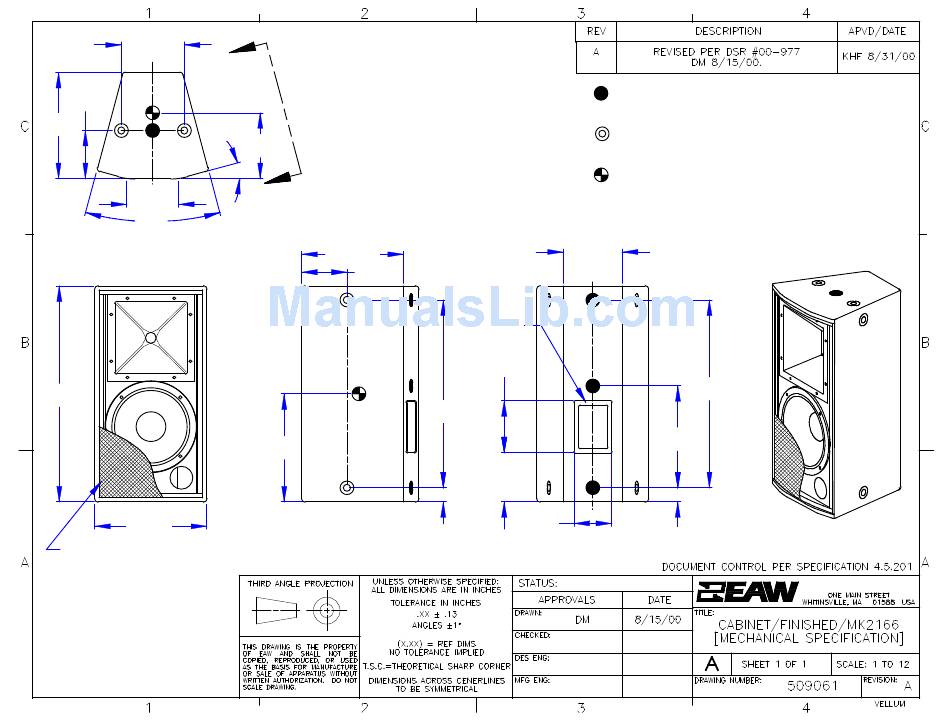

EAW MK2166 Dimensions

8.75
A
6.69
14.75
C L
7.23
30°
TOP
DIMENSIONS APPLY
TO TOP & BOTTOM
30.00
15.54

GRILLE PARTIALLY SHOWN

FRONT
7.25
15°
A
(14.12)
(6.27)
15.00

VIEW A-A

DIMENSIONS APPLY
TO BOTH SIDES

NOTES:

1. SYMBOL
3/8-16 THREADED HOLE (NUT PLATE).
2. SYMBOL
3/8-16 THREADED HOLE (PI ANGLE).
3. SYMBOL
4. WEIGHT APPROX. 60 LBS.
5. SHIPPING WEIGHT APPROX. 70 LBS.
(8.23)
C L
INPUT
7.25
26.10
6.81
5.25
1.95
BACK

PROTOTYPE

INDICATES MOUNTING POINT,
INDICATES MOUNTING POINT,
INDICATES CENTER OF BALANCE.
26.07
13.03
MK2166
1.97
EASTERN ACOUSTIC WORKS
