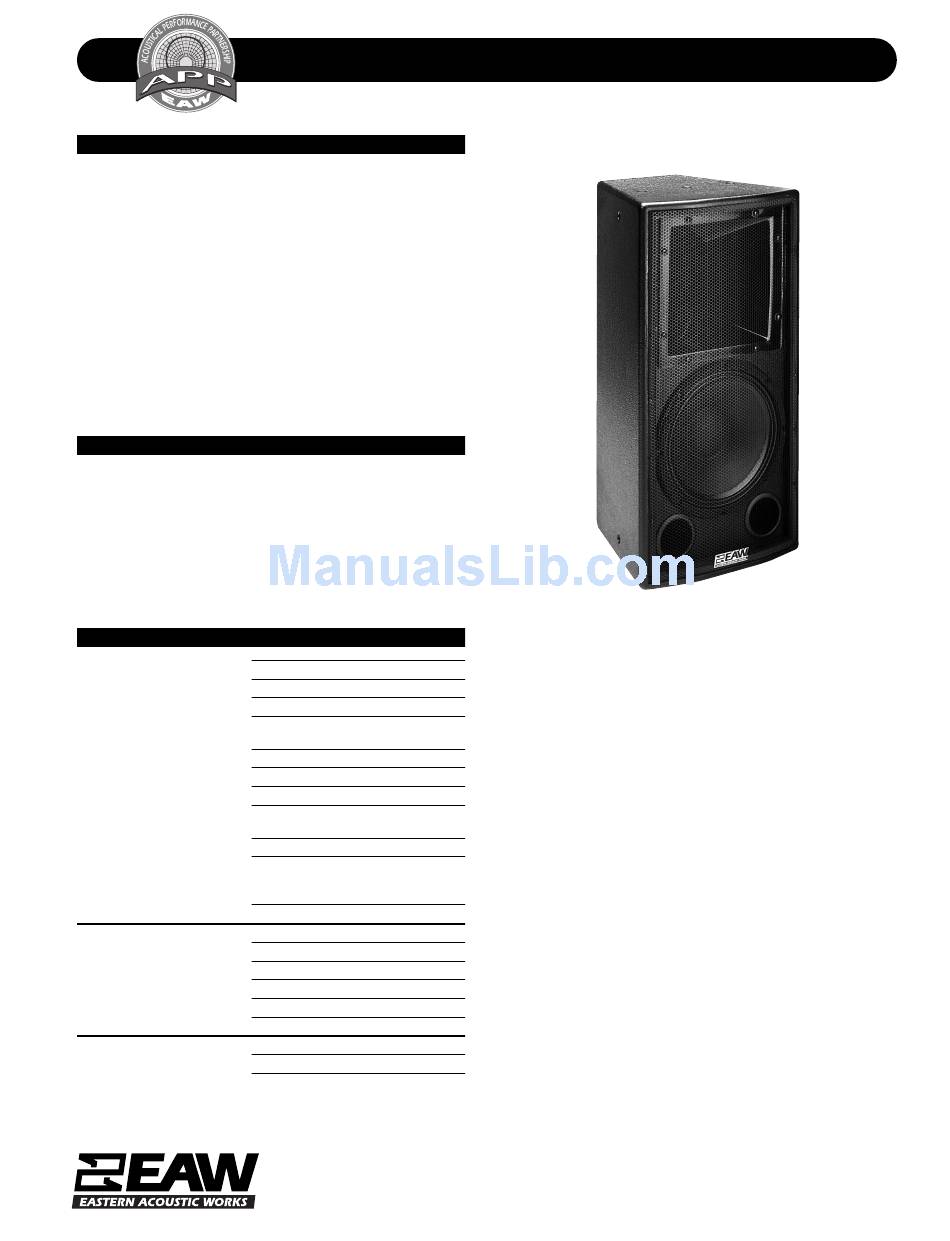

EAW MK2264 Technical Specifications

DESCRIPTION

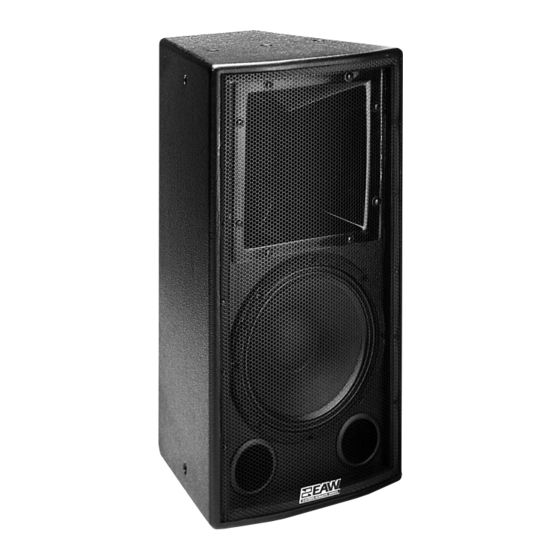

EAW's MK2264 two-way loudspeaker system provides high
output, low distortion sound reinforcement for a wide range
of permanently installed audio applications.
The 12-in low frequency cone and 1.4-in exit/75mm voice
coil high frequency compression driver provides higher out-
put and lower distortion plus enhanced power handling ca-
pabilities.
EAW's advanced beamwidth matching crossover selects a
crossover point where the HF horn's beamwidth matches that
of the woofer. The result is more even off-axis frequency
response (power response) for more complete coverage.
The MK2264 is a biamplified loudspeaker requiring the use
of pre-configured MX Series processor settings.
APPLICATION
The MK2264 was designed to support the widest possible
range of permanent installations and was optimized for use
in distributed systems.
Its high output capabilities let it cover a large seating area
in such applications as houses of worship, themed enter-
tainment venues, arenas, stadiums and nightclubs.
The comprehensive system of integral 3/8"-16 threaded
mounting points permit safe, load-rated suspension.
DESCRIPTIVE DATA
Configuration 2-way, Full Range
Powering Biamplified
LF Subsystem 1x 12-in, Vented
HF Subsystem 1x 1.4-in Exit/75mm Voice Coil
Compression Driver on CD Horn
Coverage Angles (h° x v° ) 60 x 45
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Wear-resistant Textured Black
Paint
Connectors 2x 2-Terminal Barrier Strip
Suspension Hardware (13) 3/8"-16 Threaded Mounting
Points (3 each on top and bottom,
2 per side, 3 on rear)
Grill Powder Coated Perforated Steel
Dimensions Inches
Height 30.00
Width (front) 15.54
Width (back) 8.23
Depth 14.75
Trapezoid Angle 15 Degrees per Side
Weights Pounds Kilograms
Net Weight 60
Shipping Weight 70
Acoustic Performance Partnership
