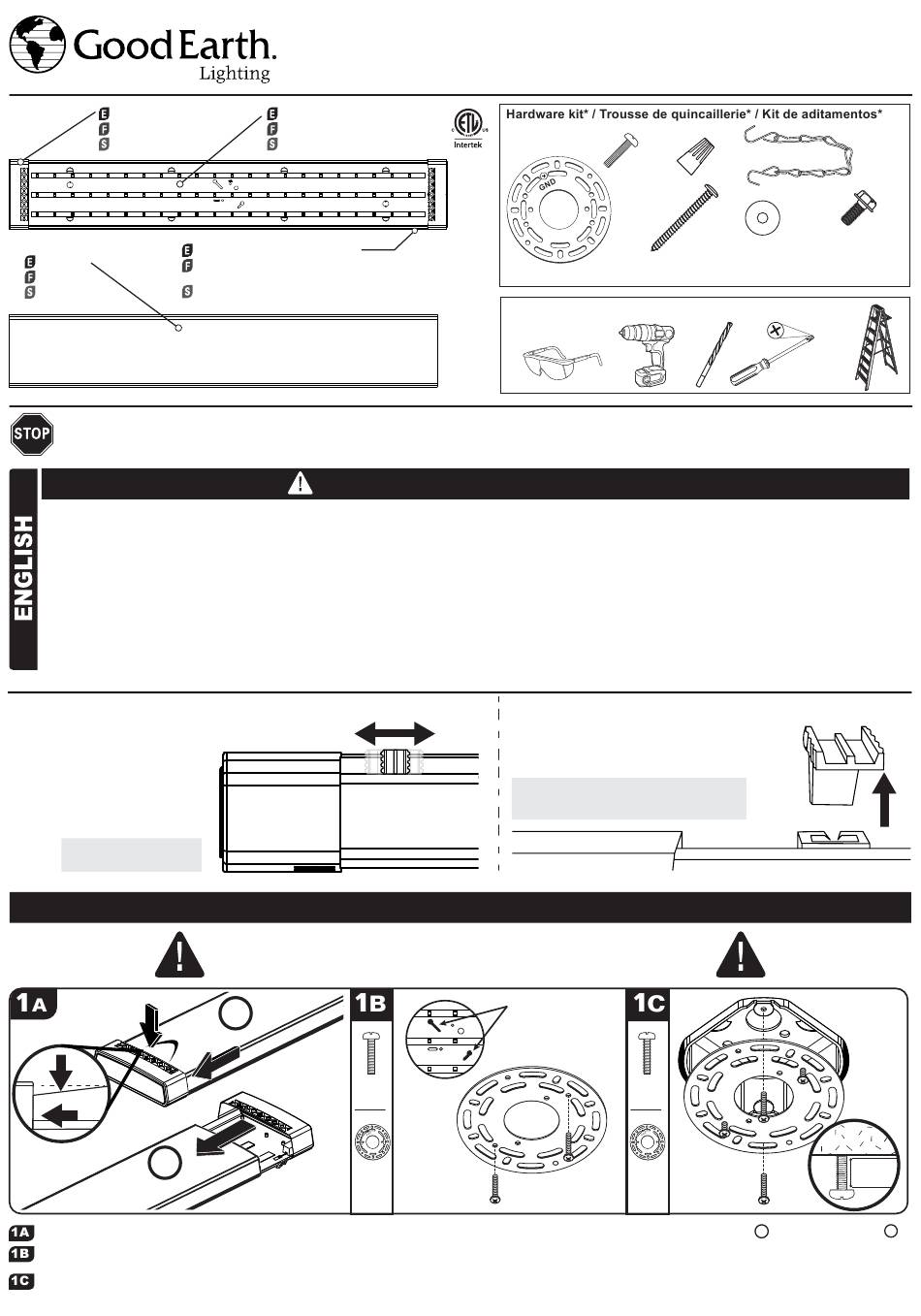

Good Earth Lighting LF1263-BK2-46LFC-G Installation Manual

End cap
Embout
Capuchón
Diffuser
Diffuseur
Difusor
WARNING: SHUT OFF POWER AT THE CIRCUIT BREAKER OR FUSE PANEL
BEFORE REMOVING THE OLD FIXTURE OR INSTALLING A NEW ONE.
READ ENTIRE INSTALLATION PROCEDURE
BEFORE YOU BEGIN!
THIS FIXTURE IS DIMMABLE BY SPECIFIC FORWARD PHASE ELECTRONIC (TRIAC)
DIMMERS. Dimmers tested to be compatible with this fixture are the Lutron: Skylark
SCL-153P, Diva DVCL-153P, Maestro
®
LECL-153P, Caseta PD-6WCL, and Eaton Halo
®
imply any guarantee or warranty of compatibility with a particular application. Dimmers not
listed do not imply non-compatibility.)
If unsure if the electrical box is properly grounded, or the box is plastic and has no
ground wire, or are unfamiliar with the methods of properly grounding fixture, consult
a qualified electrician.
3-Light Setting Slide Switch
The Slide switch is located along the
top edge side of the fixture that allows
the color temperature of the light to be
adjusted between 3 values: Warm
White: 3000K, Bright White: 4000K,
Daylight: 5000K
NOTE: Default setting is
Bright White: 4000K
2
Carefully push in on the diffuser near one end and slide the diffuser into the end cap until opposite end of the diffuser clears other end cap
Align a pair of threaded holes in universal mounting bracket (AA) with mounting keyhole slots located around the center of the fixture pan. Attach fixture mounting
screws (BB) into 2 of the threaded holes, leaving it extended about 3/8 in. below the ceiling line.
Attach mounting bracket (AA) to the electrical box, using existing electrical box screws (BB).
Lampe d'éclairage décoratif linéaire diamanté à DEL de 117 cm x 19 cm (Page 3)
Fixture Pan
Support du luminaire
Bandeja de la lámpara
3-Light Setting Slide Switch
Interrupteur coulissant pour
luminaire à trois intensités lumineuses
Interruptor deslizante de ajuste de 3 luces

WARNINGS AND CAUTIONS

MACL-153M, Toggler TGCL-153P, Lumea
® ®
SAL006P. (This list of dimmers does not
®
Installation
TURN POWER OFF AT BREAKER BOX/FUSE BOX.
TURN WALL SWITCH TO JUNCTION BOX OFF
1
BBx2
AAx1
Diamond 46" x 7.5" LED Linear Decorative Light (Page 1)
Luz LED lineal decorativa de 46 x 7.5 pulgadas Diamond (Página 5)
AAx1
* Los aditamentos reales pueden diferir de los que se muestran en la ilustración.
Required/ Nécessaire/ Obligatorio

IMPORTANT SAFETY INFORMATION

1. Do not look directly at LEDs for extended period of time.
2. For INDOOR Damp Locations.
®
3. Turn power off before servicing.
®
4. Do not leave bare wires exposed.
5. For electrical requirements, see fixture. Minimum 90°C
supply conductors.
Removable Slide Switch
Optional: To remove the slide switch
from view, pull the switch out from the
slot connected to the fixture pan.
NOTE: Save and re-install the tab to
change color temperature setting if desired.
Keyhole slots
Model #: LF1263-BK2-46LFC-G
BBx4 CCx1
EEx2 FFx2
* Actual hardware may differ from illustration.
* La quincaillerie incluse peut être différente de l'illustration.
BBx2
AAx1
1 . Remove the diffuser
DDx1
GGx1
3/8 in./
1 cm
2 .
