CyberPower Ecologic Series User Manual

YOUR ULTIMATE ALLY IN POWER
ECOLOGIC UPS SERIES
EC450G / EC550G / EC750G / EC650LCD / EC850LCD
USER MANUAL
EC450G / EC550G (8 outlets)
EC750G (12 outlets)
FEATURES
1. Battery and Surge Protected Outlets
2. Full-Time Surge Protection Outlets / ECO
Controlled Outlets
3. ECO Indicator
4. Power On Indicator (green)
5. Power Switch
Cyber Power Systems (USA), Inc.

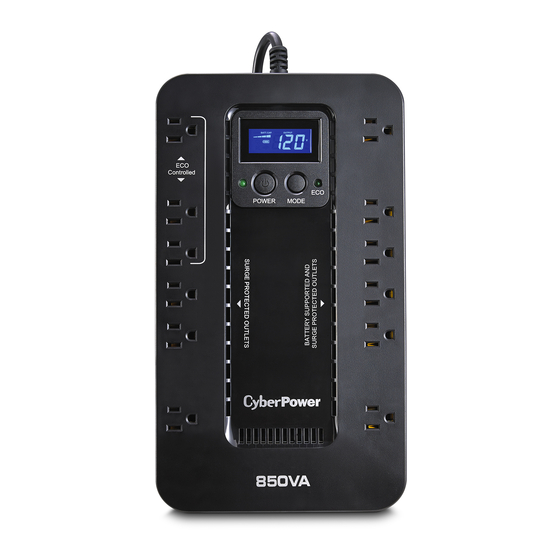

EC650LCD (8 outlets)
EC850LCD (12 outlets)
6. Mode Switch (EC650LCD and
EC850LCD only) or ECO Button
(EC450G, EC550G, and EC750G only)
7. Circuit Breaker
8. USB Port to PC
9. ECO Mode, Surge Protected Outlets
10. Widely-Spaced Outlets
PRODUCT REGISTRATION
Thank you for selecting the CyberPower UPS product. This UPS is designed to provide unsur-
passed power protection, operation and performance during the lifetime of the product. Please
take a few minutes to register your product by visiting: CyberPowerSystems.com/registration.
Registration certifies your product's warranty, confirms your ownership in the event of a product
loss or theft and entitles you to free technical support.
IMPORTANT SAFETY WARNINGS
This manual contains important safety instructions. Please read and follow all instructions carefully
during installation and operation of the unit. Read this manual thoroughly before attempting to
unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or
electric shock, install in a temperature and
humidity controlled indoor area free of
conductive contaminants. (Please see
specifications for acceptable temperature
and humidity range).
CAUTION! To reduce the risk of electric shock,
do not remove the cover. There are no user
serviceable parts inside.
CAUTION! Hazardous live parts inside can be
energized by the battery even when the AC
input power is disconnected.
CAUTION! The UPS must be connected to an
AC power outlet with fuse or circuit breaker
protection. Do not plug into an outlet that is
not grounded. If you need to de-energize this
equipment, turn off and unplug the unit.
CAUTION! To avoid electric shock, turn off the
unit and unplug it from the AC power source
before installing a computer component.
CAUTION! Not for use in a computer room
as defined in the Standard for the Protection
of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
(SAVE THESE INSTRUCTIONS)
CAUTION! To reduce the risk of fire, connect
only to a circuit provided with 20 amperes
maximum branch circuit over current protection
in accordance with the National Electric Code,
ANSI/NFPA 70.
DO NOT USE FOR MEDICAL
OR LIFE SUPPORT EQUIPMENT!
CyberPower Systems does not sell products
for life support or medical applications. DO
NOT use in any circumstance that would affect
operation and safety of life support equipment,
any medical applications or patient care.
DO NOT USE WITH OR NEAR AQUARIUMS!
To reduce the risk of fire or electric shock, do
not use with or near an aquarium. Condensa-
tion from the aquarium can cause the unit to
short out.
DO NOT USE THE UPS
ON ANY TRANSPORTATION!
To reduce the risk of fire or electric shock, do
not use the unit on any transportation such
as airplanes or ships. The effect of shock or
vibration caused during transit and the damp
environment can cause the unit to short out.
