CyberPower EC450G User Manual

EC450G / EC550G / EC750G
EC650LCD / EC850LCD
User's Manual
PRODUCT REGISTRATION
Thank you for selecting the CyberPower UPS product. This UPS is designed to provide unsurpassed power protection, operation and
performance during the lifetime of the product. Please take a few minutes to register your product by visiting:
CyberPowerSystems.com/registration. Registration certifies your product's warranty, confirms your ownership in the event of a
product loss or theft and entitles you to free technical support.
IMPORTANT SAFETY WARNINGS
(SAVE THESE INSTRUCTIONS)
This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of
the unit. Read this manual thoroughly before attempting to unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of
conductive contaminants. (Please see specifications for acceptable temperature and humidity range).
CAUTION! To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside.
CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is disconnected.
CAUTION! The UPS must be connected to an AC power outlet with fuse or circuit breaker protection. Do not plug into an outlet
that is not grounded. If you need to de-energize this equipment, turn off and unplug the unit.
CAUTION! To avoid electric shock, turn off the unit and unplug it from the AC power source before installing a computer component.
CAUTION! Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
CAUTION! To reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit over current
protection in accordance with the National Electric Code, ANSI/NFPA 70.
DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does not sell products for life support or medical
applications. DO NOT use in any circumstance that would affect operation and safety of life support equipment, any medical
applications or patient care.
DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire or electric shock, do not use with or near an aquarium.
Condensation from the aquarium can cause the unit to short out.
DO NOT USE THE UPS ON ANY TRANSPORTATION! To reduce the risk of fire or electric shock, do not use the unit on any
transportation such as airplanes or ship. The effect of shock or vibration caused during transit and the damp environment can cause
the unit to short out.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt. The box should contain the following:
(a) UPS unit (b) User's manual (c) USB A+B type cable
*PowerPanel® Personal software is available as a free download at:CyberPowerSystems.com/products/software.
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the UPS does not exceed the UPS unit's rated capacity (450VA/260W for EC450G,
550VA/330W for EC550G, 750VA/450W for EC750G, 650VA/390W for EC650LCD, and 850VA/510W for EC850LCD). If the rated
capacities of the unit are exceeded, an overload condition may occur and cause the UPS unit to shut down or the circuit breaker to
trip.
2. There are many factors that can affect the amount of power that your electronic equipment will require. For optimal system
performance keep the load below 80% of the unit's rated capacity.
HARDWARE INSTALLATION GUIDE
1. our new UPS may be used immediately upon receipt. However, after receiving
Y
a new UPS, to ensure the battery's maximum charge capacity, it is
recommended that you charge the battery for at least 8 hours. Your UPS is
equipped with an auto-charge feature. When the UPS is plugged into an AC
outlet, the battery will automatically charge whether the UPS is turned on or
turned off.
Note: This UPS is designed with a safety feature to keep the system from being turned on during shipment. The first time you turn
the UPS on, you will need to have it connected to AC power or it will not power up.
2. With the UPS unit turned off and unplugged, connect your computer, monitor, and any other peripherals requiring battery backup
into the battery power supplied outlets. Plug the other peripheral equipment (e.g. printer, scanner, speakers, etc.) into the full-time
surge protection outlets. DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum cleaner, sump pump, or other
large electrical device into the "Battery and Surge Protected Outlets". The power demands of these devices will overload and
possibly damage the unit.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is
protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air
conditioner, refrigerator, copier, etc.). The warranty prohibits the use of extension cords, outlet strips,
and surge strips in conjunction with the UPS unit.
4. Press the power switch to turn the unit on. The Power On indicator light will illuminate green and the unit will "beep" twice.
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and
unplug at least one piece of equipment from the battery power supplied outlets. Make sure the circuit breaker is depressed and
then turn the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
7. To store the UPS for an extended period of time, cover it and store with the battery fully charged. While in storage, recharge the
battery every three months to ensure optimal battery life.
Ensure the wall outlet and UPS are located near the equipment being attached for proper accessibility.
8.
BASIC OPERATION
DESCRIPTION

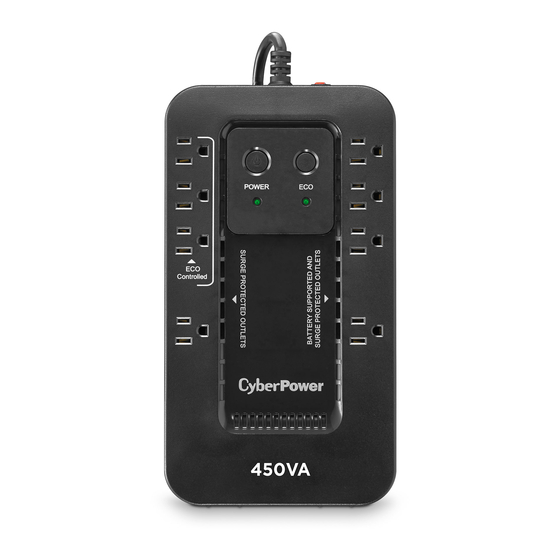

EC650LCD (8 outlets)
EC850LCD (12 outlets)
1. Battery and Surge Protected Outlets
The unit has battery powered/surge suppression outlets to ensure temporary uninterrupted operation of your equipment during a
power failure. (DO NOT plug a laser printer, paper shredder, copier, space heater, vacuum cleaner, sump pump, or other large
electrical device into the "Battery and Surge Protected Outlets." The power demands of these devices will overload and
possibly damage the unit.)
2. Full-Time Surge Protection Outlets / ECO Controlled Outlets
The unit has surge suppression outlets to provide surge and line noise protection. Three of the surge-only outlets are also ECO
controlled outlets.
3. ECO Indicator
ECO Indicator shows the condition of ECO function. For more information, refer to ECO Function Setup section.
4. Power On Indicator (green)
This LED is illuminated when the utility power is normal and the UPS outlets are providing power, free of surges and spikes.
5.
6.
K01-0000855-00
7.
8.
9.
10. Outlets Designed for AC Adapters
ECO Function
When the ECO function is active the UPS can detect whether the PC that is connected to the USB port is turned on or off. If the PC is
turned off, the UPS will turn off the ECO controlled outlets and cut power to the devices connected to them in order to save power.
Generally, these are peripherals that are not used when the PC is not turned on.
ECO Controlled Outlets
Three of the surge-only outlets are also ECO controlled outlets. When the PC that is connected to the USB port is turned off, the UPS
will turn off the ECO controlled outlets to save energy.
ECO Setup
1.
2.
3.
ECO Indicator
The LED will be blinking when the ECO function is turned ON but the PC is either off or not connected. The LED will be solid if the ECO
function is turned on and the connected PC is on. The LED is off when the ECO function is disabled. See below table for more
information.
Power ON
INPUT voltage meter: This meter measures the AC voltage that the UPS system is receiving
from the utility wall outlet. The UPS is designed to continuously supply connected equipment
with stable output voltage. In the event of a complete power loss, severe brownout, or
over-voltage, the UPS relies on its internal battery to supply consistent 110/120 output voltage.
The INPUT voltage meter can be used as a diagnostic tool to identify poor-quality input power.
OUTPUT voltage meter: This meter measures, in real time, the AC voltage that the UPS system
is providing to the computer during normal AC/Utility Power mode, and battery backup mode.
ESTIMATE RUN TIME: This displays the run time estimate of the UPS with the current battery
capacity and load.
EC450G / EC550G (8 outlets) NORMAL icon: This icon appears when the UPS is working under normal conditions.
EC750G (12 outlets)
BATTERY icon: During a severe brownout or blackout, this icon appears and an alarm sounds (two short beeps followed by a pause) to
indicate the UPS is operating from its internal battery. The alarm will continue to sound during a prolonged brownout or blackout. The
BATT.CAPACITY meter will show one 20% capacity segment remaining to indicate the UPS's battery is nearly out of power. You should
save files and turn off your equipment immediately.
OVER LOAD icon: This icon appears and an alarm sounds to indicate the battery-supplied outlets are overloaded. To clear the
overload, unplug some of your equipment from the battery-supplied outlets until the icon turns off and the alarm stops.
BATT. CAPACITY meter: This meter displays the approximate charge level of the UPS's internal battery in 20% increments. During a
blackout or severe brownout, the UPS switches to battery power (the BATTERY icon appears) and the battery charge level decreases.
LOAD CAPACITY meter: This meter displays the approximate output load level of the UPS battery outlets in 20% increments.
Power Switch
To turn the UPS ON, press the power button for approximately 2 seconds - you will hear a constant tone (1 second) - and release
after a short beep.
To turn the UPS OFF, press the power button for approximately 2 seconds - you will hear a constant tone (1 second) - and release
after two short beeps.
Alarm setting: The audible alarm can be turned Off or On by double click the POWER button. The default setting is for the Alarm
On. To turn the Alarm Off, double click the button. You will hear two short beeps when the Alarm is turned off. To turn the Alarm
back On, double click the button. You will hear a single short beep when the Alarm is turned on. *When the Alarm is turned Off,
there will be no audible notification when the UPS reaches a low battery state.
Mode Switch (EC650LCD and EC850LCD only)
Press the Mode Switch for approximately 3 seconds to enter setup mode to select four functions: Utility High Voltage Range,
Utility Low Voltage Range, ECO ON/OFF, and LCD sleep ON/OFF. When a function is selected, press Mode Switch for 3 seconds to
view options. When an option is selected, wait for 8 seconds for the setting to be confirmed. After the setting has been
confirmed the LCD screen will leave setup mode and go back to status display. If there is no action for 8 seconds during setup, the
LCD will also leave setup mode and go back to the status display.
a. Utility High Voltage Range: Adjust the value of high voltage range.
b. Utility Low Voltage Range: Adjust the value of low voltage range.
c. ECO: Eon/EoF (ON/OFF): Turn on or turn off ECO function. For more information, refer to ECO Function Setup section.
d. LCD: L1/L0 (ON/OFF):
* When LCD is set to L1, LCD will be always ON. When LCD is set to L0, LCD will dim if untouched for 1 minute.
* In battery mode, LCD is always on regardless if the setting is L1 or L0.
ECO Button (EC450G, EC550G, and EC750G only)
Press ECO button for 3 seconds to turn on or turn off ECO function in line mode.
Circuit Breaker
Located on the side of the UPS, the circuit breaker serves to provide overload and fault protection.
USB Port to PC
The USB port allows connection and communication between the USB port on the computer and the UPS unit. The UPS
®
communicates its status to the PowerPanel Personal software. The USB port is also used for operating the UPS in ECO mode. For
more information, refer to ECO Function Setup section.
ECO Mode, Surge Protected Outlets
ECO Mode outlets automatically cut power to peripherals when your computer is in Sleep mode or is turned off (USB connection
required).
The UPS unit has 4 widely-spaced outlets so AC power adapters can be plugged into the UPS without overlapping or blocking
adjacent outlets.
ECO FUNCTION SETUP
The factory default setting is OFF. ECO mode can only be enabled/disabled and will only be active when the UPS is receiving
utility power and not in battery mode.
For the EC650/850LCD, press the Mode switch for approximately 3 seconds to enter setup mode and select the ECO function.
When the ECO function is selected, press the Mode switch for 3 seconds to turn the function ON or OFF. Once ON or OFF is
selected, wait 8 seconds for the setting to be confirmed and the LCD screen will return to status mode. For the EC450/550/750G,
press the ECO button for 3 seconds to turn ON or OFF the ECO function.
When the ECO function is OFF, utility power from the ECO outlets will always be on. When the ECO function is ON, utility power
from the ECO outlets will turn off if the PC connected to the UPS via the USB port is turned off or if there is no PC is connected to
the UPS via USB.
ECO Indicator ECO Function ECO Outlet Status
Solid (green) ON With Utility Power
Blinking ON Without Utility
Power
OFF OFF Always with Utility
Power
DEFINITIONS FOR ILLUMINATED LED INDICATORS
Alarm
On
Off Normal
Utility Failure- The UPS is providing power to battery power-supplied outlets from its
Beep twice
On
every 30 seconds
battery.
Rapid Beeping every Utility Failure- The UPS is providing battery power. Rapid beeping indicates the unit will
On
1/2 second run out of power shortly.
Battery Overload - Occurs when connected equipment exceeds the listed capacity of the
Off
Constant tone UPS. Turn the UPS off, unplug at least one piece of equipment from battery outlets, wait
10 seconds, reset the circuit breaker and turn the unit on.
DEFINITIONS FOR ILLUMINATED LCD INDICATORS
Condition
When PC is ON and USB port on the UPS is connected,
Peripherals will receive power to operate.
When PC is OFF or the USB port on the UPS is not connected,
power to the Peripherals will be turned off.
When PC is ON/OFF, Peripherals is always ON.
CONDITION
The LCD display indicates a variety
of UPS operational conditions. All
descriptions apply when the UPS is
plugged into an AC outlet and turned
on or when the UPS is on battery.
