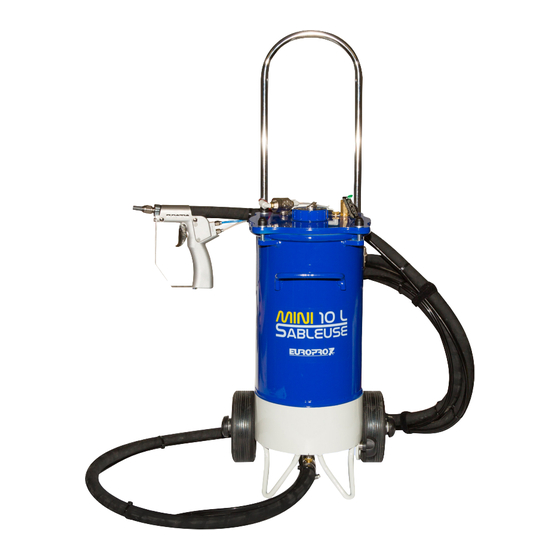

EUROPRO Mini-Sandblaster 10L User Manual
  1. Manuals
  2. Brands
  3. EUROPRO Manuals
  4. Paint Sprayer
  5. Mini-Sandblaster 10L
  6. User manual

EUROPRO Mini-Sandblaster 10L User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Mini-Sandblaster 10L
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
Edition of 07/04/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini-Sandblaster 10L and is the answer not in the manual?

Questions and answers

Related Manuals for EUROPRO Mini-Sandblaster 10L

Summary of Contents for EUROPRO Mini-Sandblaster 10L

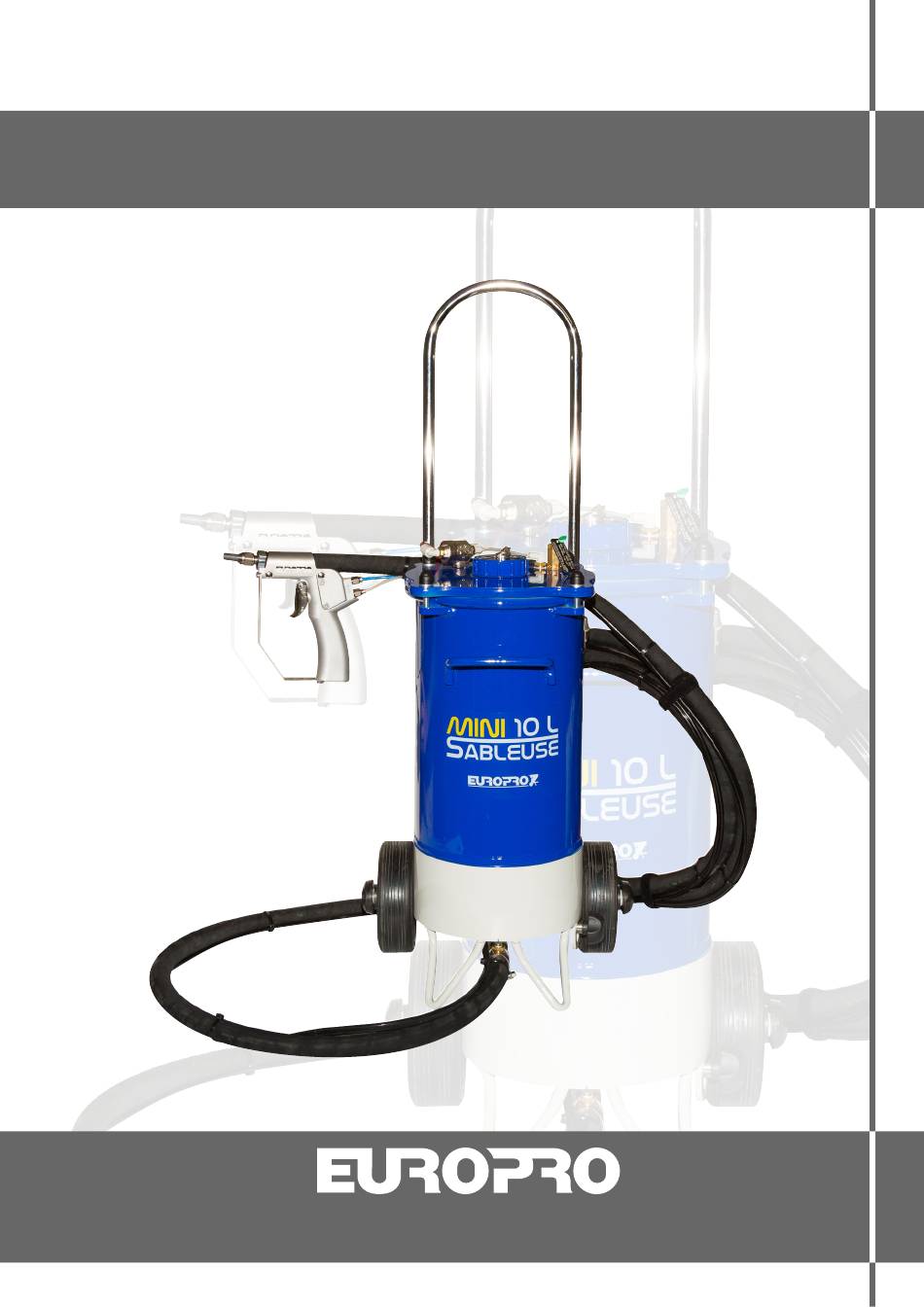

  • Page 1 User manual Mini-Sandblaster 10L EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510...
  • Page 2 INSTRUCTIONS AND MAINTENANCE MANUAL...

  • Page 3: Table Of Contents

    SANDBLASTER 0701AREN10MAS INDEX THANK YOU .............................. 3 1. PURPOSE OF THIS MANUAL ......................4 2. INFORMATION NOTE ........................... 4 3. WARRANTY............................5 4. WASTE AND ENVIRONMENT ......................5 5. EQUIPMENT DESCRIPTION ........................ 5 5.1. GENERAL DESCRIPTION ..........................5 5.2. MAIN COMPONENTS ............................ 6 5.3.

  • Page 4: Purpose Of This Manual

    INSTRUCTIONS AND MAINTENANCE MANUAL 1. PURPOSE OF THIS MANUAL EUROPE PROJECTION has prepared this Instructions and maintenance manual as a document that has to be attached to the precision sandblaster during its entire useful life, being considered as one of its components. This guide is intended for the end user and it contains all relevant information on safety in regard to: ...

  • Page 5: Warranty

    SANDBLASTER 0701AREN10MAS 3. WARRANTY The acquired equipment is covered with a 2-year warranty from the invoice date. Warranty covers against manufacturing faults and components defects. Only repairs and elements substitution carried out by technical staff of are covered. Faulty pieces will be sent freight paid. Warranty does not cover direct or indirect damages caused by our machine on people or things, or repairing operations carried out directly by the client or a third party.

  • Page 6: Main Components

    INSTRUCTIONS AND MAINTENANCE MANUAL  Swimming pool stripping  Graffiti removing  Concrete cleaning and sanitation  Plastic cleaning  Cleaning and removal of pavement markings  Metal surfaces preparation  Tanks and metal containers cleaning and stripping This sandblaster allows us the application of the following types of abrasives: corundum, steel grit, glass, aluminum silicate, garnet, calcium carbonate and silica sand.

  • Page 7: Identification Plate

    SANDBLASTER 0701AREN10MAS Exploded view 1 – Main parts 5.3. IDENTIFICATION PLATE The equipment comes with an identification plate that, under no circumstances, can be removed or manipulated. The identification plate provides the following information:  Manufacturer name  Serial number and manufacturing date...

  • Page 8: Technical Features

    INSTRUCTIONS AND MAINTENANCE MANUAL  Main features  Other mandatory data, according to the implementing legislation To make any enquiry related to the equipment to EUROPE PROJECTION, it will be necessary to make reference to the serial number on the identification plate. 5.4.

  • Page 9: Inspection At Reception

    SANDBLASTER 0701AREN10MAS never exceeded (6 kg/cm ). If it is exceeded, the valve will be discharged and the excess pressure will be released. The manipulation of the safety valve or its seal is forbidden. Any valve alteration can cause serious injuries to the user and alter the correct device performance. EUROPE PROJECTION is exempt from any responsibility arising from any manipulation of the valve carried out by the user, declining in him all responsibility.

  • Page 10: Previous Operations

    INSTRUCTIONS AND MAINTENANCE MANUAL 7.1. PREVIOUS OPERATIONS Before starting the equipment, the following operations have to be carried out:  Drain the air supply hose to eliminate possible water condensation.  Check that the compressor is able to supply the required air flow. The air flow depends on the type of work to be done (working pressure), between 250 –...

  • Page 11: Abrasive Product Outlet Flow Regulation

    SANDBLASTER 0701AREN10MAS  Turn the control until the manometer shows that the appropriate working pressure has been reached.  Press the control down to lock the regulator. The working pressure must never exceed 6 kg/cm (this is the maximum pressure on the safety valve).

  • Page 12: Dismantling Of The Tank Lid

    INSTRUCTIONS AND MAINTENANCE MANUAL  Separate the hose from the fitting. To assemble the hose again, proceed in the opposite direction to the steps described above. 8.3. DISMANTLING OF THE TANK LID This operation should only be carried out for maintenance or regular cleaning. Abrasive product loading must be done through the product filling cap [Exploded view 2 –...

  • Page 13: Exploded View With Parts List

    SANDBLASTER 0701AREN10MAS 3. WARRANTY The acquired equipment is covered with a 2-year warranty from the invoice date. Warranty covers against manufacturing faults and components defects. Only repairs and elements substitution carried out by technical staff are covered. Faulty pieces will be sent freight paid. Warranty does not cover direct or indirect damages caused by our machine on people or things, or repairing operations carried out directly by the client or a third party.
  • Page 14 INSTRUCTIONS AND MAINTENANCE MANUAL Posit. Reference Description 52216 ASSEMBLED LID 52056 FINISHED LID FILLING CAP O-RING 550571B 52007B COVER O-RING 55021B SAFETY VALVE COMPLETE CAP 52054 52055 COMPLETE SCREWS KIT (4 UNITS) SPRING (2 UNITS) 52004B 52026MB MECHANIZED FILLING LID 52CUERAREN10MASB SANDBLASTER WELDED BODY 550411B FIX WHEEL (2 Units)
  • Page 15 SANDBLASTER 0701AREN10MAS 52075B AIR DISTRIBUTOR FAST DISCHARGE VALVE 1/8 52073B SWIVEL ELBOW 1/8 A 8 52074B 52076B 6x8 POLYURETHANE PIPE 50057JUNTA JOINT CAP 1/8 55258B 52168B 25 x 28 CLAMP 52115B FILLING CAP STUD 52116B SPRING AXLE FILLING LID 52113B FILLING LID BRACKET KIT 52117B FILLING LID BUSHING...
  • Page 16 INSTRUCTIONS AND MAINTENANCE MANUAL Exploded view 2 – Spare parts (0701AREN10MAS) (Rev1)

  • Page 17: Troubleshooting

    SANDBLASTER 0701AREN10MAS 11. TROUBLESHOOTING ANOMALY POSSIBLE CAUSE CHECKING POINTS SOLUTION I. Air does not come A) The compressor is not Feed air compressor Connect the compressor to the out of the nozzle connected or turned off sandblaster and start it B) Blocked nozzle Nozzle Disassemble the nozzle from the...

  • Page 18: Storage Of The Equipment

    INSTRUCTIONS AND MAINTENANCE MANUAL ANOMALY POSSIBLE CAUSE CHECKING POINTS SOLUTION VII. Lack of tightness A) Presence of strange Lids Clean the contact surfaces of the in the lids particles or objects that lids prevent the correct closing of the lids B) Worn or damaged joints Joints Replace...

  • Page 19: Declaration Of Conformity

    DECLARATION OF CONFORMITY AUTHORIZED REPRESENTATIVE: EUROPE PROJECTION 228, avenue Olivier Perroy 13790 ROUSSET DECLARES THAT THE EQUIPMENT DESIGNATED BELOW: Model : MINI-SABLEUSE 10 L Reference : 70470 COMPLIES WITH THE STANDARDS: • UNE-EN 13445 ROUSSET, JANUARY 20th 2020 Patrick BOREL President EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET Tél : +33 (0)4 42 29 08 96 –...
  • Page 20 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510...
