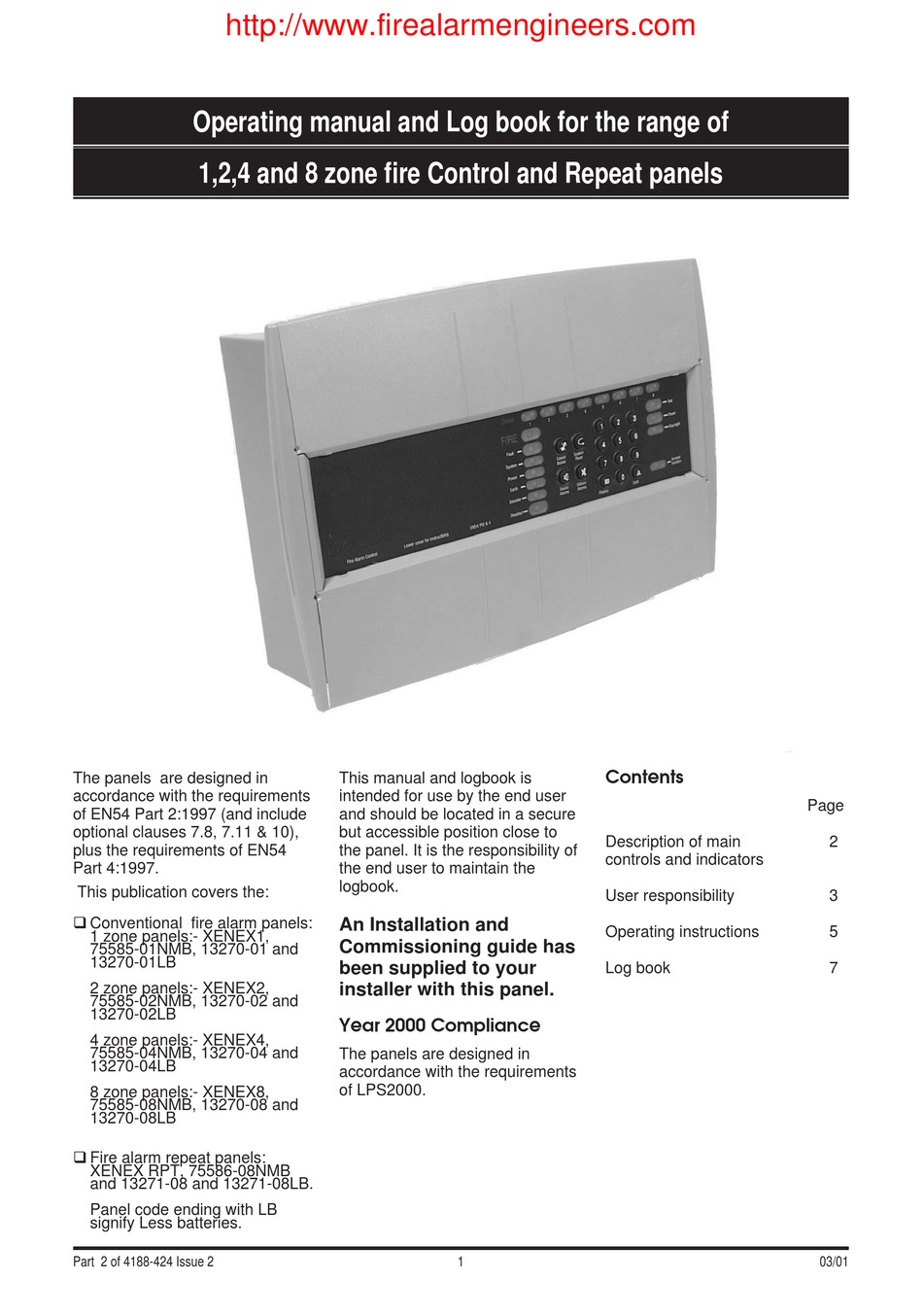

Gent Xenex1 Operating Manual And Log Book

http://www.firealarmengineers.com
Operating manual and Log book for the range of
1,2,4 and 8 zone fire Control and Repeat panels
The panels are designed in
accordance with the requirements
of EN54 Part 2:1997 (and include
optional clauses 7.8, 7.11 & 10),
plus the requirements of EN54
Part 4:1997.
This publication covers the:
q Conventional fire alarm panels:
1 zone panels:- XENEX1,
75585-01NMB, 13270-01 and
13270-01LB
2 zone panels:- XENEX2,
75585-02NMB, 13270-02 and
13270-02LB
4 zone panels:- XENEX4,
75585-04NMB, 13270-04 and
13270-04LB
8 zone panels:- XENEX8,
75585-08NMB, 13270-08 and
13270-08LB
q Fire alarm repeat panels:
XENEX RPT, 75586-08NMB
and 13271-08 and 13271-08LB.
Panel code ending with LB
signify Less batteries.
Part 2 of 4188-424 Issue 2
This manual and logbook is
intended for use by the end user
and should be located in a secure
but accessible position close to
the panel. It is the responsibility of
the end user to maintain the
logbook.
An Installation and
Commissioning guide has
been supplied to your
installer with this panel.
Year 2000 Compliance
The panels are designed in
accordance with the requirements
of LPS2000.
1
Contents
Description of main
controls and indicators
User responsibility
Operating instructions
Log book
Page
2
3
5
7
03/01
