Gent COMPACT-RPT Installation And Operation

Installation and Operation

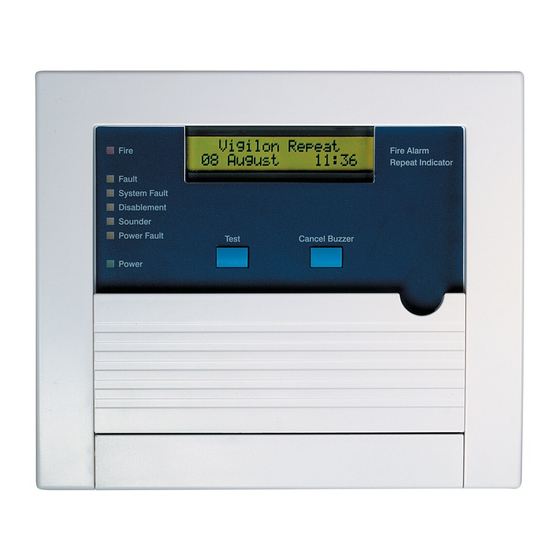

Repeat indicator panel
(COMPACT-RPT / SENADV-IND)
These instructions cover the installation and
operation of the repeat indicator panel.
Installation
Open the outer cover
a.
Insert the external cable into the backbox
b.
assembly at the required entry point.
Mark the fixing points and secure the backbox
c.
to the wall.
Connect the cable to terminals.
d.
Refit the front cover and flap.
e.
UP TO 4 REPEAT INDICATOR
PANELS MAXIMUM
REPEAT INDICATOR PANEL 4
b
RS485
a
+
24V
-
earth
If there is only
one repeat indicator
panel connected
then use the 24V
supply on the
Master control board.
REPEAT INDICATOR PANEL 1
b
RS485
a
+
24V
-
earth
Terminals P15 is PORT 0 of
Master Control Board
(Card 0)
The factory default
setting of PORT 0 is
Repeat mode
to allow connection to
repeat indicator panel
4188-760 issue 4_01-10_Rept ind.
POWER
SUPPLY UNIT
24V
-
+
The factory default setting of PORT 0
is set for
repeat indicator panel connection
24V
0V B A
P15
REPEAT RS485
MASTER CONTROL
BOARD
PANEL
Thinned sections
on sides of enclosure for
cable entry
All outstanding work is carried out during the
commissioning of the system.
b
RS485
a
+
24V
-
earth
REPEAT INDICATOR PANEL 1
Terminals P15 is PORT 0 of
Master Control Board
(Card 0)
Repeat mode to allow
END STATION LINK SETTING
REPEAT INDICATOR PANEL 4
ON
1 2 3 4 5 6 7 8
RESET
S24
REPEAT INDICATOR PANEL 3
ON
1 2 3 4 5 6 7 8
RESET
S24
REPEAT INDICATOR PANEL 2
ON
1 2 3 4 5 6 7 8
RESET
S24
REPEAT INDICATOR PANEL 1
ON
1 2 3 4 5 6 7 8
RESET
S24
J6 J5 J7
b
a
+
-
ON
1 2 3 4 5 6 7 8
1 2 3
4 5 6
7 8 9
0
Back cable entry point
4 enclosure fixing points
24V 0V B A
P15
REPEAT RS485
MASTER CONTROL BOARD
PANEL
SWITCH
J6 J5 J7
POSITIONS
ON
J2 J3 J4
ON
ON
J6 J5 J7
ON
J2 J3 J4
1 2
J6 J5 J7
J2 J3 J4
J6 J5 J7
J2 J3 J4
S24
1 & 2
9600 baud
4800 baud
2400 baud
1200 baud
1
