6. TECHNICAL FEATURES
Class D control panel (control panel with detectors) according to prEN 12101-9:2008.
Designed for use in class 1 environments, according to the classification contained in EN 12101-10 (clean, indoor environ-
ments, temperature –5°C to +40°C).
Mains power supply (for primary power supply): 100-250 Vac, 50 – 60Hz.
Nominal power consumption: 480 W. Standby power consumption: 10 W
Secondary power supply from 2 lead acid batteries: 12V, 9 Ah or 2 lead acid batteries: 12V, 7 Ah, in series. Maximum interrup-
tion time when switching between the two power supply sources: 0,2 s.
Maximum current required of the batteries, when the primary power supply is unavailable: 20,05 A.
Motor outputs: 24 Vdc +/- 25%. 2 lines – max 10 A each.
Visual signals: n° 3 LEDs: GREEN, YELLOW, RED, on board, for diagnostics.
OUTPUTS:
N° 2 x 24 Vdc polarity inversion motor outputs, each with a maximum load of 10 A (2 natural ventilation zones, 1 smoke extraction
zone)
N° 1 x 24 Vdc auxiliary output. This output is disconnected automatically if a blackout or an emergency occurs. In standby mode,
you must subtract the power consumption of this output from the available power on the two motor outputs.
N° 1 output with clean (NC/NO) switching contact, to display emergencies (EM. SIG.).
N° 1 output with clean (NC/NO) switching contact, to display emergency closing (EM. CL. SIG.);
N° 1 output with clean (NC/NO) switching contact, to display anomalies/faults (AUX. SIG.).
INPUTS:
Input for smoke sensors (up to 10 sensors).
Input for emergency push buttons (up to 10 push buttons).
Input for emergency signal from any external alarm system.
Input for emergency closing command.
AUX1 input driven by an external voltage (24 Vdc +/- 25%) for the activation of EMERGENCY INTERLOCK command (by default,
the input is disabled).
2 inputs for manual control of the 2 natural ventilation zones.
Thermostat input. 1 weather management zone.
Inputs for wind, rain and CO2 sensors. 1 weather management zone.
Input for disabling weather functions (thermostat, wind, rain, CO2).
ITEMS INCLUDED:
2 lead batteries: 12 V, 9 Ah (*) or 2 lead acid batteries: 12V, 7 Ah (*) (LxHxD: mm. 151 x 95 x 65 – Code 41921C);
Extractable input / output connectors for easy wiring.
WARNING
WARNING
(* )If the batteries are not supplied by UCS, follow the connection diagram on page 49.
Charging time: for 100% discharged batteries, maximum 10 hours.

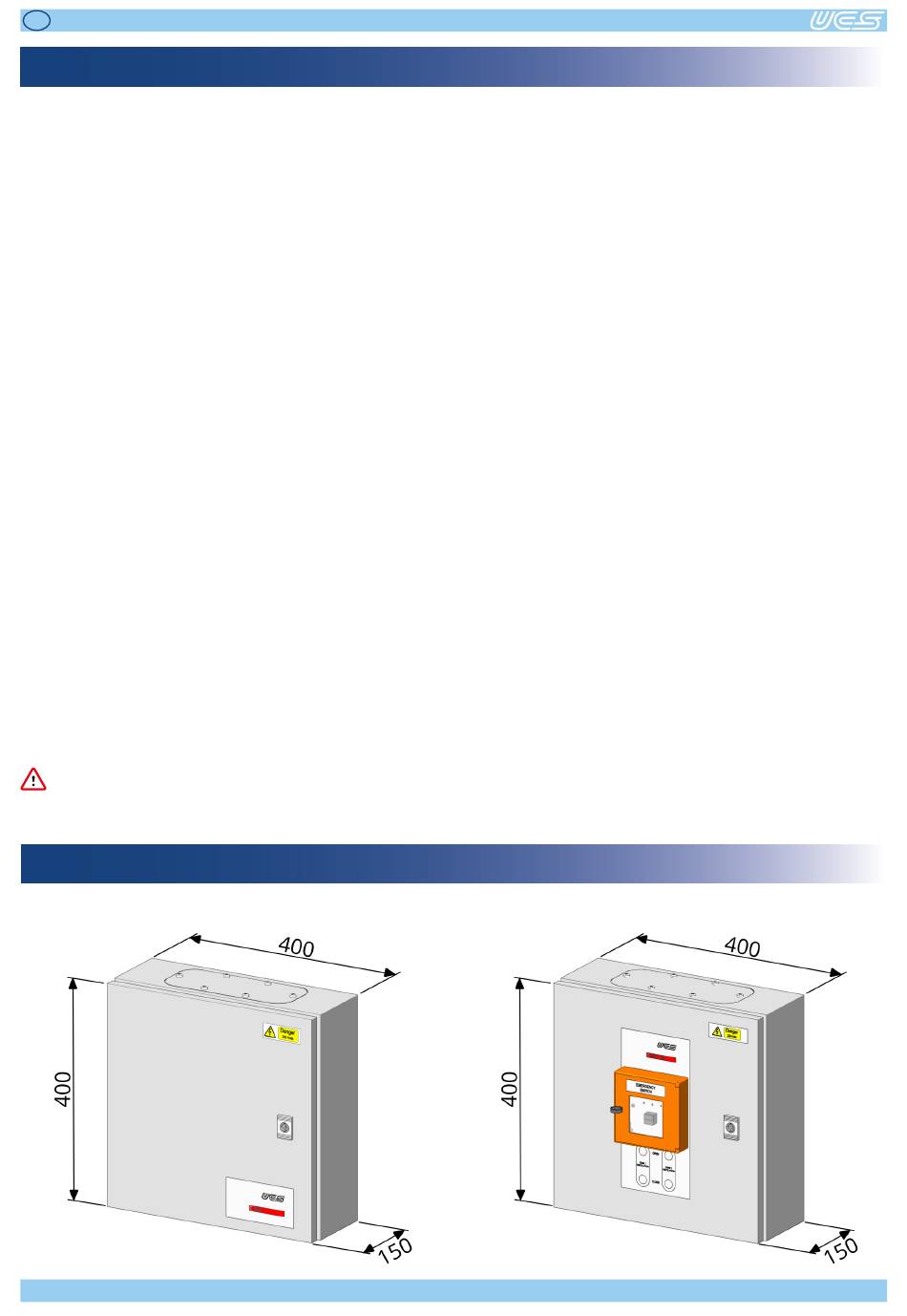

6.1 Dimensions

C-SV 20A
Doc. 85860I - Rev. 22/10/2020
10/54
C-SV IB 20A
Drw. / Dis. 33942/h
