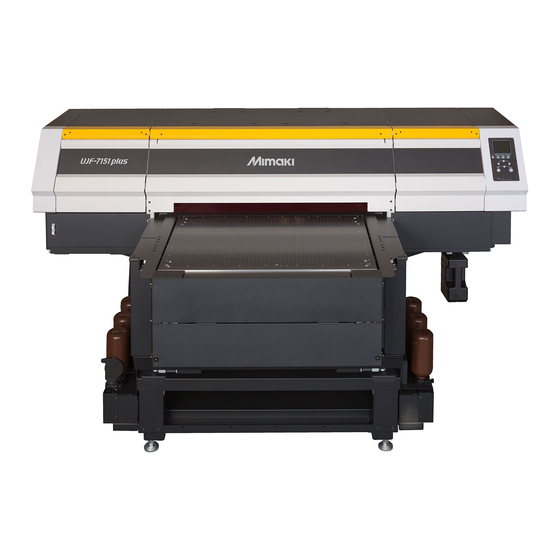

MIMAKI UJF-7151 Plus Daily Care

UJF-7151Daily Care
With a view to using this machine in a better condition, please be sure to the following daily care after at the end of the daily
work. Please refer to "Daily care manual" for the detail.
Tools required
for maintenance

Cleaning of around the heads

1. Clean around the nozzle surface.
Wipe off the ink of around the head with a clean
stick containing the cleaning solution for
maintenance.
Wipe off the ink which attached to the black part
and the gap around the head.
• During cleaning, please be careful not to touch absolutely the nozzle surface (the red part of the photo).
• When you leave during maintenance, please make sure to complete the cleaning by pressing the [ENTER] key.
Without completing the cleaning, the nozzle part is left uncovered and then outside light makes the ink cure,
which causes nozzle clogging or the like.

Cleaning of the station

1. Clean the cap.
(1) Wipe off the ink adhered to the edge of the cap rubber with a UJ
swab containing the cleaning solution for maintenance. Clean
until the state, such as a photograph.
(2) Make sure that no dust attached on the edge of the cap rubber.
• When the dust had been attached, it may cause poor
image quality (missing nozzle) and ink drop.
2. Clean the wiper.
Wipe off the ink of the wiper and its surroundings with UJ
swab containing the cleaning solution for maintenance.

Clean the UV unit

1. Clean the underside of the UV lamp.
(1) If the ink is attached to the underside of UV lamp, wipe off with a
clean stick or a soft cloth containing alcohol.
(2) Wipe off so that alcohol will not remain.
• If alcohol remains, it may cause ink drops and
curing failure.
Indispensability • F-200/LF-200 Cleaning solution for maintenance
Indispensability • Clean stick
Indispensability • Cap/UJ swab
Indispensability • Alcohol
Indispensability • Gloves
Indispensability • Goggles
Voluntarily • Bottle for maintenance liquid 11 (option)
Make sure to wear the attached
goggles and glove
Do not touch
【Before】
the nozzle surface
Black
part
Cap rubber
Wiper
when you work.
SPC-0568
SPC-0527
SPC-0386
C-ML011-Z-B2-1-KW
(For EU: C-ML011-Z-B2-1-KE)
【After】
Gap around
the head
【Before】 【After】
【Before】 【After】
UV lamp
