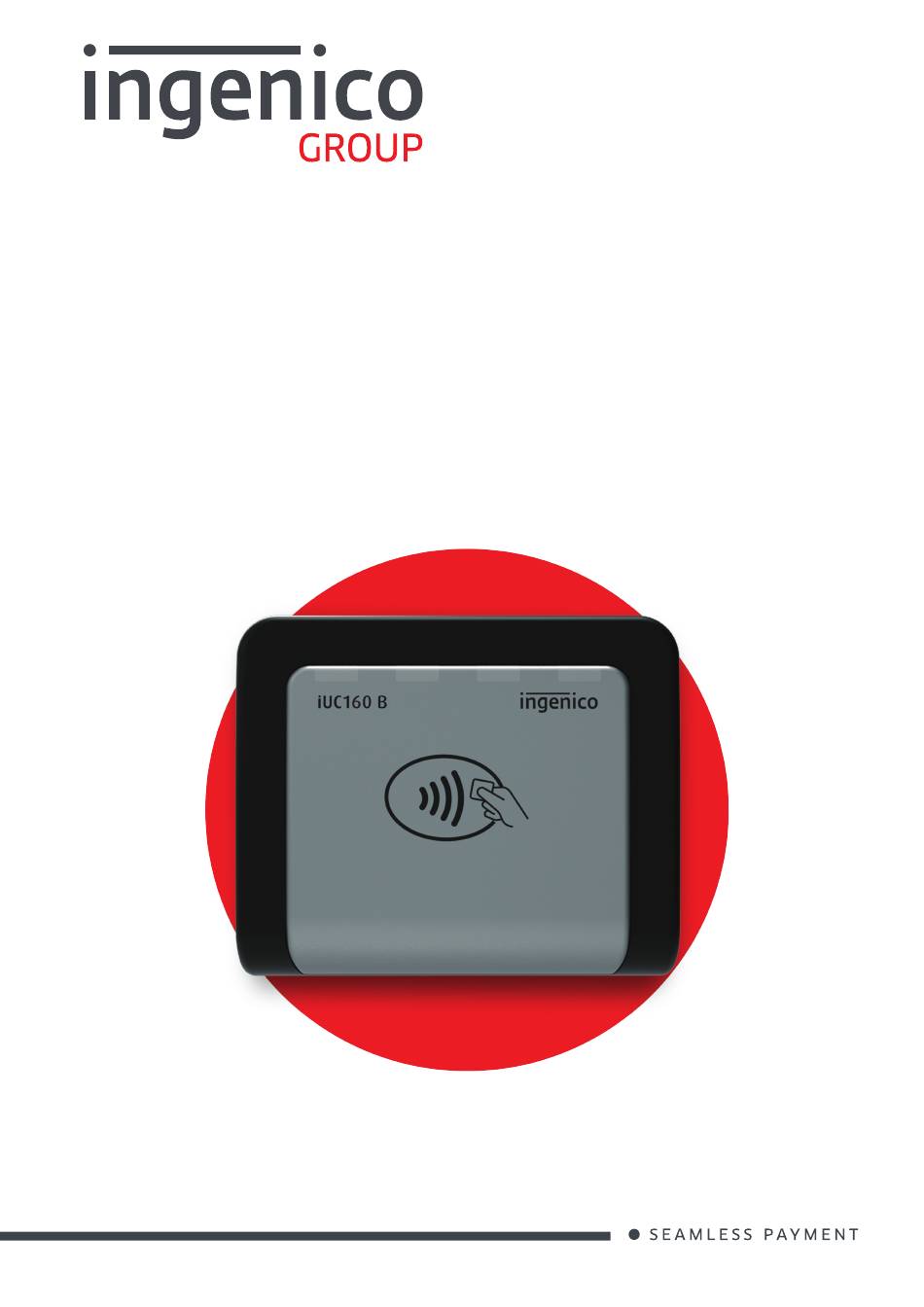

Compact

contactless reader

iUC150B & iUC160B

Integration guide

www.ingenico.com

28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35

Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre

Need help?

Do you have a question about the iUC150B and is the answer not in the manual?

Questions and answers

Summary of Contents for Ingenico iUC150B

Page 1 28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35 Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre...
Page 2 In addition, INGENICO can also offer a technical assistance service for iSELF integration and commissioning to any Partner who requests it. In light of the information above, INGENICO cannot be held responsible for any iSELF integration that is not compliant with the criteria above, into a Terminal by one of its Partners.
Page 3 Certifications. For example, INGENICO is aware of the importance of the quality of design of the electrical circuit (e.g. input filtering) and cabling (including earthing of components) for compliance with rules on electrical radiation.
Page 4 1_4_6 Maintenance button and led 1_4_7 Buzzer 1_4_8 Contactless LEDs & Contactless Logo 1_5 Professional installation Requirement 1_6 Wake-up function 1_6_1 Wake-up mechanism 1_6_2 Recommended circuit implementation Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 5 4_1 Software Architecture 4_2 Software security management 4_3 Operating system 4_4 Telium manager 4_5 Software downloading 5_Requirements for iUC150B & iUC160B installation 5_1 Security requirement 5_2 Kiosk mechanical requirements 5_3 General installation recommendations 5_4 Additional information for non-voluntary contactless reading...
Page 6 UC150B Components and materials requiring selective treatment / Composants et matériaux nécessitant un traitement sélectif 9_1_3 UC160B Components and materials requiring selective treatment / Composants et matériaux nécessitant un traitement sélectif 9_1_4 iUC150B Product disassembly process / Processus de démontage du produit 10_Standard 10_1 Electrical consumptions 10_2...
Page 7 Secure Access Module – the chips storing the electronic cash register in a stored value scheme such as Moneo, Proton or VISA Cash. SubMiniature version A Universal Serial Bus Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 8 1_2 Payment solution presentation The iSelf Series is the new range of Ingenico unattended devices to offer payment into any kiosk through any segments (petrol, transport, vending, parking, etc.). The iUC150B & iUC160B are compact readers offering contactless card processing, keeping an “High tech”...
Page 9 User licence for applications software User licence for M²OS Softwares / Licences Licence for software signature tool, SAT Licence for «EMV Level 2 package « Licence for TCP/IP … Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 11 1_3_2 iUC150B technical Hardware characteristics 87 gr Mass Dimensions 61 x 73 x 23 mm (height x width x depth) Power Supply 5V Max 500mA Telium2 Platform Contactless cards reader Buzzer Functionality Go cless link wake-up + serial link 1x USB device...
Page 12 >< Function Wake-up 1_3_3_3 Go cless link This connector is used for Wake-up mechanism. Pin N° Function HZ Stand-by authorized "0" Wake-up / Stand-by unauthorized Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 13 The device handle 4 green LEDs dedicated for contactless application. Green LEDs 1_3_6 Cable holder USB, go cless and Wake up cable can be hold thanks to a silicone cable holder. (provided) Cable holder Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 15 1x USB device Link 1_4_3 iUC160B output connectors description µSD card SAM1 card Go cless Link SAM2 card Serial link + wake up cable USB Device Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 16 >< Function Wake-up 1_4_3_3 Go cless link This connector is used for Wake-up mechanism. Pin N° Function HZ Stand-by authorized "0" Wake-up / Stand-by unauthorized Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 18 The buzzer is controlled by application. The frequency depends of software. 1_4_8 Contactless LEDs & Contactless Logo The device handle 4 green LEDs dedicated for contactless application. Green LEDs Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 19 1_5 Professional installation Requirement Ingenico only sells its products, to qualified partners and integrators. They are in charge of professionally resell, integrate, and install these products inside complete solution for end customers. These end customers solution can be: Petrol station.
Page 20 Wake up mechanism for IUC150B iUC150B iUP250 iUI120 COM0 COM0 1 - GND 1 - GND HZ => Stand-by HZ => Stand-by 2 - Wake-up 2 - Wake-up "0" => Wake-up "0" => Wake-up Any devices design to be compliant.
Page 21 As the pin is high impedance in stand by mode, any current leakage can wake up the product so please be careful to choose component with ultralow leakage current for wake up circuit. 2_Main accessories For complete description of Ingenico Accessories, please refer to iUN accessories catalog. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B...
Page 22 / output handling, simultaneous management of all the peripherals is ensured. Data can be loaded in the internal flash memory of the processor. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 23 3_2 Software security management iUC150B is designed so that only authenticated software can be run in a ranked context. iUC150B checks the authenticity of the software by checking its signature with the RSA algorithm with 2048 bits key size. Copyright© 2015 Ingenico Integration guide iUC150B &...
Page 24 Tamper proof Application / System management: the operating system offers the devices described in the data security section. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 25 The inputs and outputs are managed by interrupts. This provides for simultaneous processing of peripherals, thus increasing system unit performance. It is downloadable to FLASH memory. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 26 The terminal is designed to execute authentic software only and to do this in a ranked context. The terminal checks the authenticity of the software by checking its signature with the RSA algorithm with 2048 bits key size. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 27 Inter-application isolation is managed by the Memory Management Unit (MMU). Application download management: The operating system offers the downloading services described in the « Software download » section. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 28 Data is compressed in accordance with an algorithm derived from the Lempel-Ziv method ensuring compression rates of the order of 40 %. The downloaded software is run in a secure context by authenticity check. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 29 When the LED near the button becomes fix red, release the button. Trigger the LLT and follow the instructions given in the « LLT User’s guide v4 » to load the software. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 30 The iUC150B complies with EVA compact module standard. There are 2 ways of installation: The iUC150B & iUC160B can mounted directly on the kiosk from outside. In that case, the kiosk panel thickness must be between 2 mm and 14 mm according to EVA standard.
Page 31 5_4 Additional information for non-voluntary contactless reading Sensitive area (in blue) must be kept free in order to avoid non voluntary contactless reading 8 cm 8 cm 8 cm Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 32 Products can be mounted directly on kiosk panel. It requires a cut out in the kiosk to the dimensions detailed in the diagram below (all dimensions are in millimeters). 6_1_1 Installing the iUC150B product iUC 150B Installation : footprint and cutout (front side)
Page 33 (IP65 standard) Rubber joint at the rear of the product guarantees waterproofness between kiosk panel and product. 3D step files are also available upon request. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 34 6_1_2 Installing the iUC160B product iUC 160B Installation : footprint and cutout (front side) Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 35 (IP65 standard). Rubber joint at the rear of the product guarantees waterproofness between kiosk panel and product. 3D step files are also available upon request. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 36 6_2 Product mounted onstandard EVA plate Product can be mounted on standard EVA plate. EVA plate is not provided by INGENICO. See the dimension detailed in the diagram below (all dimensions are in millimeters) CAUTION It is required by security regulation that EVA plate must be permanently mounted on the kiosk (i.e.
Page 37 Waterproofness between EVA plate and kiosk panel should be guarantee by installer. 3D step files are also available upon request. 6_2_1 Installing the iUC150B product EVA EPS standard mounting plate (front side) Surface must be flat and without burrs No sharp edge Copyright©...
Page 38 M4 screw (x4) Length of screw=5mm (+0/-1mm) + thickness of the equipment front face (thread depth of the product insert=5.9mm) Picture product installation rear vue Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 39 Device requires standards hexagonal nuts for integration into a kiosk. Screw the 4 nuts M4 with a 1.0-1.2 N.m torque. It is recommended to use washers. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 40 M4 screw (x4) Length of screw=5mm (+0/-1mm) + thickness of the equipment front face (thread depth of the product insert=5.9mm) Picture product installation rear vue Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 41 6_3 Product mounted onstandard EVA plate Product can be mounted on compact EVA plate. EVA plate is not provided by INGENICO. See the di- mension detailed in the diagram below (all dimensions are in millimeters) CAUTION It is required by security regulation that EVA plate must be permanently mounted on the kiosk (i.e.
Page 42 6_3_1 Installing the iUC150B product EVA EPS compact mounting plate (front side) Surface must be flat and without burrs No sharp edge Device requires standards hexagonal nuts for integration into a kiosk. Screw the 4 nuts M4 with a 1.0-1.2 N.m torque. It is recommended to use washers.
Page 43 EVA standard mounting plate M4 screw (x4) Length of screw=5mm (+0/-1mm) + thickness of the equipment front face (thread depth of the product insert=5.9mm) Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 44 Screw the 4 nuts M4 with a 1.0-1.2 N.m torque. It is recommended to use washers. Product requires four M4 screws. Length of screw is depending of panel thickness. See picture below. Torque is 0.6-0.75 N.m Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 45 EVA standard mounting plate M4 screw (x4) Length of screw=5mm (+0/-1mm) + thickness of the equipment front face (thread depth of the product insert=5.9mm) Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 46 (local/host) and the position of the host (COMx). To change configuration, you must load a new parameter definition file (supplied by Ingenico). This operation can be performed using the LLT or a USB key (see § Loading by USB key) For more information concerning configuration, contact Ingenico Technical Support.
Page 47 Ce document est destiné aux installations de traitement et de recyclage. Il fournit les instructions de base pour le démontage de produits Ingenico afin de retirer les composants et matériaux nécessitant un traitement sélectif, tel que défini par la directive européenne 2002/96/CE, sur les Déchets d’Equipements Electriques et Electroniques (DEEE).
Page 48 Composants contenant des substances radioactives Electrolyte capacitors measuring greater 2,5 cm in diameter or height Condensateurs électrolytiques mesurant plus de 2,5 cm de diamètre ou de hauteur Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 49 9_1_3 iUC160B Components and materials requiring selective treatment / Composants et matériaux nécessitant un traitement sélectif The following components and materials, if present in the Ingenico product(s), have to be removed and selectively treated. Les composants et matériaux suivants, si présents dans le(s) produit(s) Ingenico, doivent être retirés et faire l’objet d’un traitement sélectif.
Page 50 Electrolyte capacitors measuring greater 2,5 cm in diameter or height Condensateurs électrolytiques mesurant plus de 2,5 cm de diamètre ou de hauteur 9_1_4 iUC150B Product disassembly process / Processus de démontage du produit Basic steps to remove components and materials previously identified and requiring selective treatment.
Page 51 Disassemble the 2 part of front cover : transparent lens and cover mask. Dissocier les 2 pièces de la face avant : vitre transparent et masque. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 52 - Endurance 30 mn on each resonance frequency - Shock resistance: NF EN 60068-2-27 - Each direction, 500 drops 1/2 sinus 25g - 6ms Natural events: - Water and dust resistant IP65. Copyright© 2015 Ingenico Integration guide iUC150B & iUC160B All rights reserved 900021059 R11 000 04/0416...
Page 53 28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35 Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre Copyright© 2015 Ingenico Integration guide iUC150B &...
