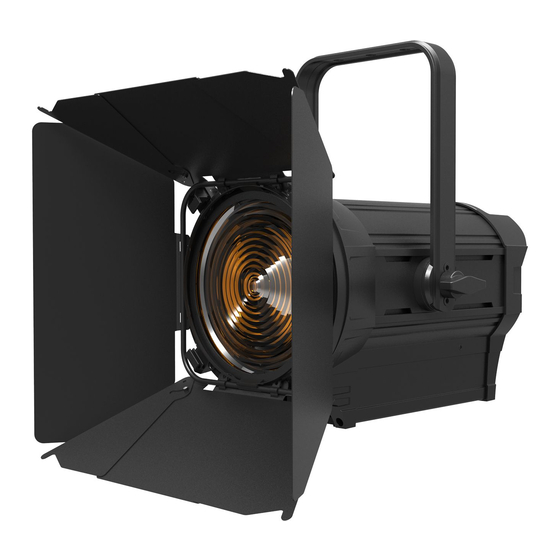

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions .................. 2 2. Technical Specifications ................4 3. The Plate for Color Filter & Barn Door Installation ......... 5 4. How To Set The Unit ................6 4.1 Control panel ..................6 4.2 Main Functions ................. 7 5.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed  during its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or maintenance as it could be very hot. Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut ...

  • Page 5: Technical Specifications

    2. Technical Specifications  Power Voltage: AC 100~240V, 50/60Hz  Power Consumption: 190W  Light Source: TS-150 CW/TS-1504 CW: C117C1222-150-011 TS-150 WW/TS-1504 WW: C117W1222-150-011  Color Temperature: 3150±150K, 5600±150K(optional)  Optical: CRI: WW≥94, CW≥90 CQS: WW≥94, CW≥91 TLCI: WW≥96, CW≥96 ...

  • Page 6: The Plate For Color Filter & Barn Door Installation

     Dimensions/Weight: 437×340×417mm, 8.6kgs 17"x13"x16"in, 19lbs  Photometric Diagram: Distance(m) ° ° ° 14 Lux 6920 2300 1175 6240 2380 1215 ° 55 Lux 2240 2000 3. The Plate for Color Filter & Barn Door Installation Fig. 1 At first, please push the Lock Cap button by hand as the arrow ①, and move away the Lock as the arrow ②;...

  • Page 7: How To Set The Unit

    Fig. 2 Secondly, please insert the Barn Door into the outside slot from topside as arrow ④, and fasten the lock (Note: the Barn Door must be fastened into the inside of the lock’s hook ); then flip down the lock cap again as arrow⑤. 4.

  • Page 8: Main Functions

    3. Button: MENU To select the programming functions DOWN To go forward in the selected functions To go backward in the selected functions ENTER To confirm the selected functions 4. Dimmer: Manual adjust the dimmer value 5. Zoom: Manual adjust the zoom value 6.
  • Page 9 DMX Setting Enter menu mode, select DMX Setting, press ENTER button to confirm, use UP/DOWN button to select DMX Address, Art-Net Setup or Channel Mode.
  • Page 10 DMX Address Select DMX Address, press the ENTER button to confirm, the present address will blink on the display. Use the UP/DOWN button to adjust the DMX address from 1 to 512. Once the address has been selected, press the ENTER button to save. Hold and press the MENU button about one second or wait for one minute to exit the menu mode.
  • Page 11 Square Law: Light intensity control is finer at low levels and coarser at high levels. Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels. Linear: The increase in light intensity appears to be linear as DMX value is increased. S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
  • Page 12 Invert Display Select Invert Display, press the ENTER button to confirm. Use the UP/DOWN button to select the No(normal display) or Yes(inverse display), press the ENTER button to save. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Language Select Language, press the ENTER button to confirm.

  • Page 13: Control By Universal Dmx Controller

    5. Control By Universal DMX Controller 5.1 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 14: Address Setting

    5.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Setting, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blinking the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.

  • Page 15: Troubleshooting

    2 Channels (Mode 2): CHANNEL VALUE FUNCTION DIMMER 0-255 0  100% DIMMER FINE 0-255 0  100% 6. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1.

  • Page 16: Fixture Cleaning

    7. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
  • Page 20 Innovation, Quality, Performance...
