Memory Card Reader only for Hi-MD Walkman

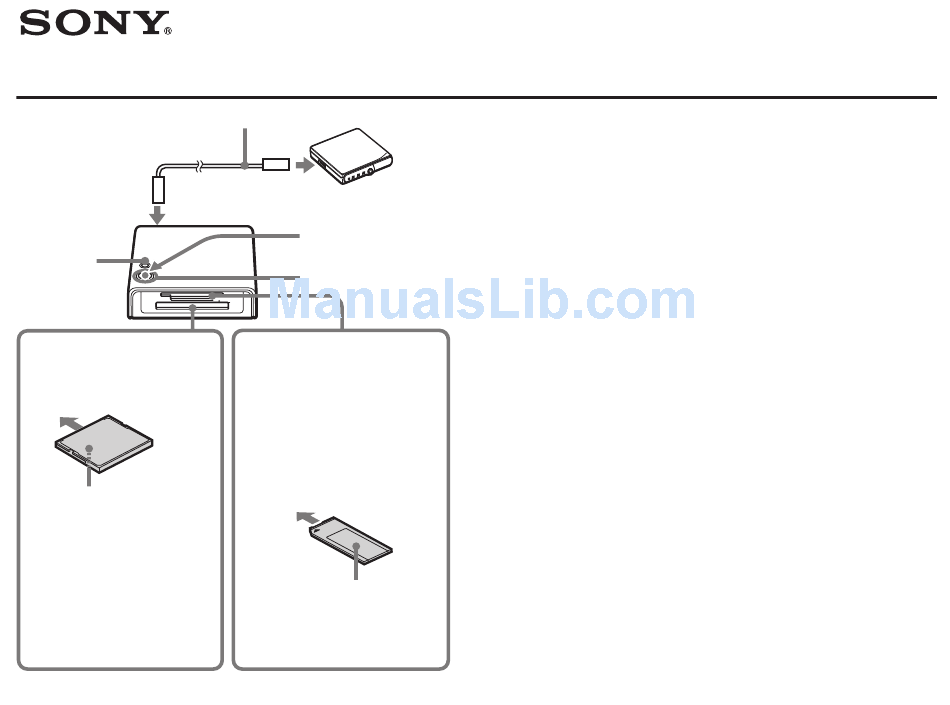

MCMD-R1 Operating Instruction Card
The USB cable supplied with the
Hi-MD Walkman
To Hi-MD
connector
CHECK
button
Compact flash slot
Compact flash
Insert a memory card
with the front side
downward.
 2004 Sony Corporation Printed in Japan
2-541-855-11(1)
To USB jack
Access lamp
COPY button
5-in-1 slot
• All kinds of Memory
Stick
• All kinds of SD cards
• xD-Picture Card
• Smart Media
• Multimedia Card
Insert a memory card
with the front side
upward.
For more details, refer to Operating Instructions.
Copying the data from a memory card
to a disc in Hi-MD mode
Insert four size-AAA alkaline dry batteries in
the memory card reader.
1
Insert a battery and a disc in Hi-MD mode
(1GB Hi-MD disc or 60/74/80- minute
standard disc) with a sufficient free space in
the Hi-MD Walkman.
2
Connect the memory card reader to the
Hi-MD Walkman.
3
Insert a memory card in the slot.
4
Press the COPY button.
The memory card reader is turned on to start
copying (the access lamp flashes in green).
When copying is complete, the access lamp
stays lit in green. The memory card reader is
automatically turend off about 10 seconds after
completion of copying.
5
After turned off the memory card reader,
press the CHECK button to check the result
according to access lamp indication.
When copying was complete, the access lamp
stays lit in green (refer to the label on the
bottom of the memory card reader).
