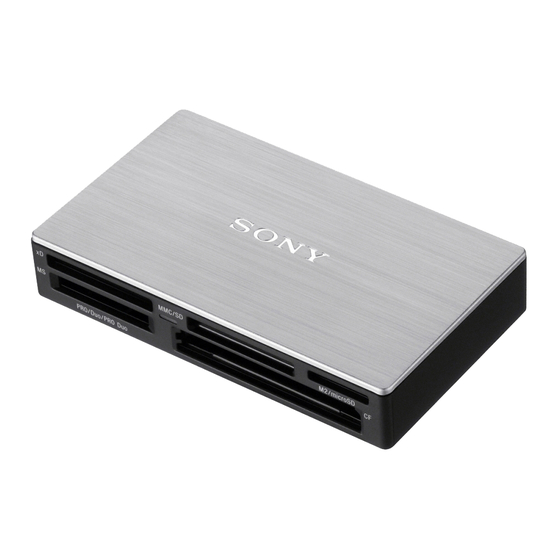

Sony MRW-EA7 Operating Instructions Manual

Multi card reader/writer.
Hide thumbs

Advertisement

IT
Multi-Card
Reader/Writer
Operating Instructions
Before operating the unit, please read this document
thoroughly, and retain it for future reference.
MRW-EA7
© 2010 Sony Corporation
4-262-026-21 (1)
JP
FR
DE
ES
IT
CS

Advertisement

Table of Contents

   Related Manuals for Sony MRW-EA7

   Summary of Contents for Sony MRW-EA7

  • Page 1 Multi-Card Reader/Writer Operating Instructions Before operating the unit, please read this document thoroughly, and retain it for future reference. MRW-EA7 © 2010 Sony Corporation 4-262-026-21 (1)
  • Page 2: Safety Regulations

    Refer servicing to qualified personnel only. Notice for the customer in the countries applying EU Directives The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.
  • Page 3: Table Of Contents

    Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of...
  • Page 4: Overview

    Overview The MRW-EA7 (hereafter referred to as the “reader/writer”) has the following features: • Quick and simple data transfer – easily transfer images from camera and mobile phone to PC • Compatible with “Memory Stick”, “Memory Stick Duo”, “Memory Stick Micro”...
  • Page 5: Supported Media

    • “Memory Stick PRO-HG Duo” • “Memory Stick Micro” (“M2”) “MagicGate” is the general name of a copyright protection technology developed by Sony. Recording or playback of MagicGate data that uses MagicGate technology is not supported. 4-bit parallel data transfer is supported and the data read/write timing will vary depending on the medium.
  • Page 6: Parts And Functions

    Parts and Functions Front Access Indicator This indicator is always lit. The indicator blinks when the reader/writer accesses data on a memory card. xD-Picture Card Slot Insert xD-Picture Card here. “Memory Stick” Slot Insert a “Memory Stick” media here. CompactFlash/Microdrive Slot Insert either a CompactFlash or Microdrive memory card here.
  • Page 7: Connecting The Reader/writer To A Computer

    Connecting the Reader/Writer to a Computer Simply connect the reader/writer to a computer using the supplied USB cable. Start the computer. Connect the smaller connector of the USB cable to the USB port on the rear of the reader/writer. Connect the larger connector of the USB cable to the USB port on the computer.
  • Page 8: Using The Reader/writer

    • If a memory card is inserted incorrectly, you may not be able to remove it. In the unlikely event that a memory card becomes stuck in the reader/ writer, consult your local Sony dealer. Insert one of the following cards in this slot: •...
  • Page 9: Reading And Writing Data On A Memory Card

    Reading and Writing Data on a Memory Card x For Windows other than Windows 7 The following explanation is illustrated with screens from Windows XP. The screens may differ for other versions of Windows. Open [My Computer]. Make sure the removable disk icons appear in [My Computer].
  • Page 10: Removing A Memory Card

    Doing so many cause damage to the data stored on the memory card. • Be sure to follow the steps described below. Sony accepts no responsibility for any damage or loss that results from removing a memory card without following the procedure described below.
  • Page 11: Reading The Access Indicator

    x For Macintosh Close the files saved on the memory card, and exit any currently running applications. Make sure the access indicator is not blinking. Drag the removable disk icon to the [Trash]. Alternatively, select the removable disk icon, access the [File] menu on the menu bar, and select [Eject “Untitled”] * Depending on the memory card, a different label than “Untitled”...
  • Page 12: Disconnecting The Reader/writer From The Computer

    Doing so may cause damage to the data stored on the memory card. • Be sure to follow the steps described below. Sony accepts no responsibility for any damage or loss that results from disconnecting the reader/ writer without following the procedure described below.
  • Page 13: Installing The Drive Letter Recognition Software (windows Only)

    User License Agreement.” (Page 19) Download the installer file from the web site. The installer file can be downloaded from the following URL http://support.sony-europe.com Close all programs that are still running. Double click the installer file. (For windows Vista and windows 7, User Account Control window will appear, click on [Allow].)
  • Page 14: About "memory Stick" Media

    Notes on Icons Once the Drive Letter Recognition Software is installed, the Removable Disk icons and their descriptions change. For example, if the computer has an A:, C:, and D: drive before connecting the reader/ writer, the drive letters will be assigned as follows when the reader/writer is connected: Corresponding Computer drive name...
  • Page 15: Usage Notes

    Usage Notes “Memory Stick” Media Notes on using “Memory Stick” media Terminal Write- Protected switch Label area • Do not remove “Memory Stick” media while data is being read or written. • Data may be damaged if: – You remove “Memory Stick” media or disconnect the USB cable while data is being read or written.
  • Page 16 Standby The reader/writer supports standby functions based on the PC2000 standard, which may not cover the standby function of all computers. Disable the standby function of your computer if it causes any problems. While the computer is in standby, do not insert or remove any media.
  • Page 17: Troubleshooting

    Troubleshooting Before consulting your Sony representative, verify the following. If the problem still persists, consult your local Sony dealer. Problem Solution The computer does not detect c Your computer and the reader/writer may not be properly connected. the reader/writer. The removable disk icon does c Your computer and the reader/writer may not be properly connected.
  • Page 18: Specifications

    (excluding protrusions) Mass Approx. 57 g (2 oz.) Consumption may be higher when using Microdrive Technical Support • For customers in Europe Refer to “Sony at your service” of the EUROPEAN GUARANTEE INFORMATION DOCUMENT or check on-line under ❑ http://www.sony-europe.com/...
  • Page 19: End User License Agreement

    LICENSE AGREEMENT.” END USER LICENSE AGREEMENT This is a legal agreement between you (hereafter referred to as the User) and Sony Corporation (hereafter referred to as Sony) pertaining to the right to use the software (hereafter referred to as the PROGRAM).
