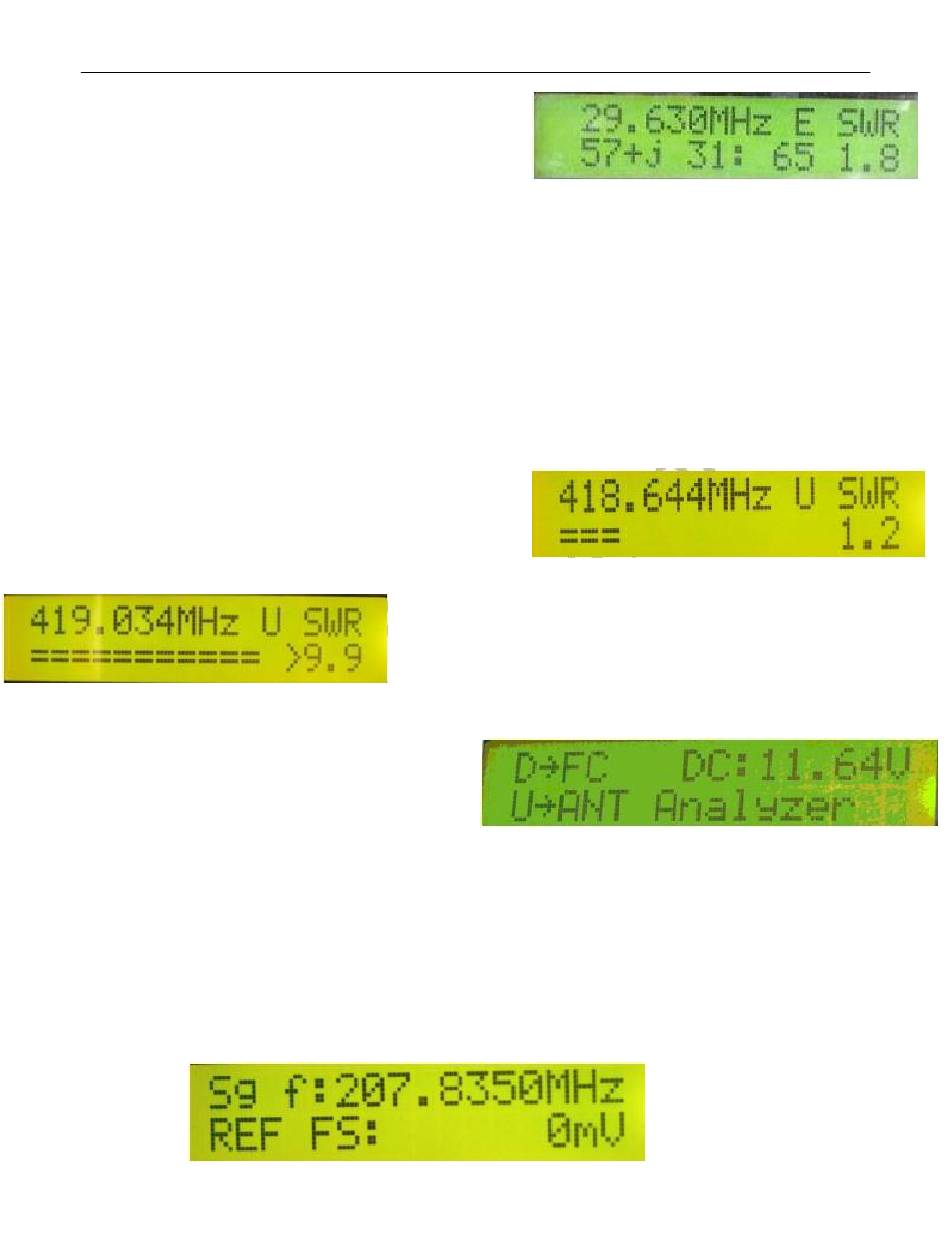

Please see the picture below as an example.
"29.630MHz" is the resonant frequency
"E "is the band in HF
"57+j" represents "Rs+j", Rs=57 ohms
"31:" represents the reactance component value, jx=31 ohms
"65" is the Z value, is the complex impedance, Z=65 ohms
"1.8" is the SWR value

UHF test:

1. TURN ON your analyzer (It will show the power on message)
2. Press "Up" for the backlight on or off
3. Press "Up" to enter the Antenna Analyzer Mode
4. Switch to the band you want to operate (See the band selecting part)
5. Turn the "Tuning Konb" to your frequency point to see the tested results (SWR only).
Please see the picture below as an example.
"418.644MHz" is the resonant frequency
"U "is the band in UHF
"1.2" represents the SWR value
"===" is the bargraph display of the SWR
Frequency Counter Mode:
Press the "Down" key on "SWR
Analyzer or Frequency Counter" menu will
enter the Frequency Counter Mode.
In this mode, it will test and show the frequency of input signal source.

FREQUENCY TEST EXAMPLES:

1. TURN ON your analyzer (It will show the power on message)
2. Press "Up" for the backlight on or off
3. Keep the "HF/UV" switch UP.
4. Press "Down" to enter the Frequency Counter Mode
5. Connect the signal source to your AW07A
Please see the picture below as an example.
The left example shows the SWR status when no
antenna connected to AW07A
