System Overview

The SV-INTERCOM-2S is a two-place stereo intercom for
Although it is designed to seamlessly complement a SkyView system, its flexible design allows
it to be used in any experimental or light sport aircraft panel that does not required a TSO'd
intercom.
The SV-INTERCOM-2S features:
• Ample Inputs — provide connection to EFIS systems, stereo music, and other
technology in your panel.
• High-Fidelity Audio Circuitry — no more scratchy, garbled voices. Stereo music output
that sounds fantastic!
• Dual Radio Capability — dual radio outputs allow two third-party radios, or a third-party
radio and a Dynon SV-COM-T25/T8 radio, to operate alongside one another.
• Fail-Safe — immediate pilot headset switch-over to primary radio, allowing
communication without intercom power.
• Horizontal and Vertical Faceplates — both configurations, plus headset jack, included
in kit.
• Selectable Auto Mute — turns down the music volume when a radio or other non-muting
input (like an EFIS alert) receives audio. A single knob press toggles whether intercom
speech also mutes the music.
• Independent Intercom Voice Activation — reduces background noise, talking on one
headset will not open squelch on the other. Radio broadcasts are also isolated so that
only the person pressing the PTT is heard over the air.

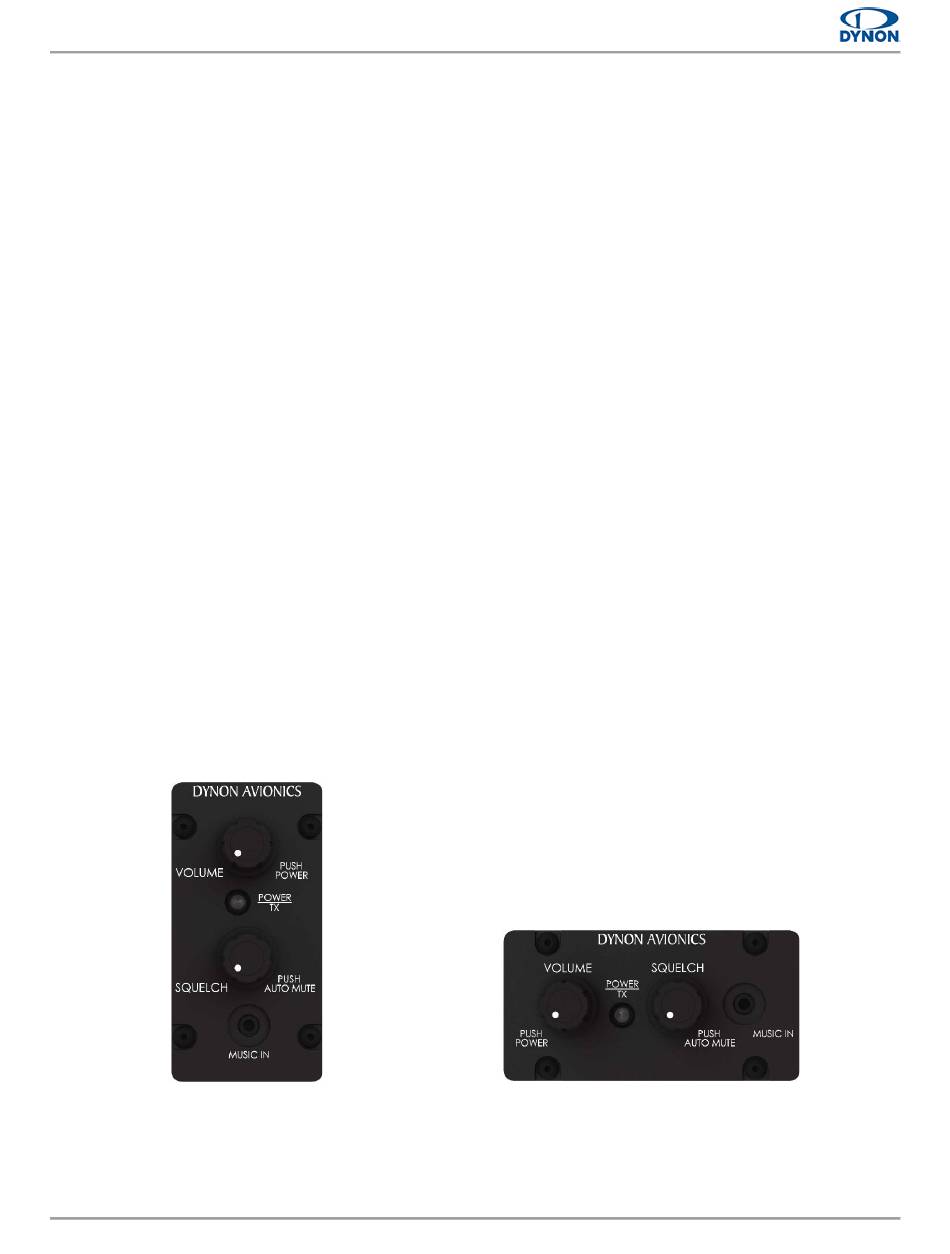

Figure 1: Vertical Faceplate / Mounting
SV-INTERCOM-2S - Installation and User Guide, Revision B
experimental and light
Figure 2: Horizontal Faceplate /
Mounting
aircraft.
