Summary of Contents for EASTMAN DYNAFIX DF 4800

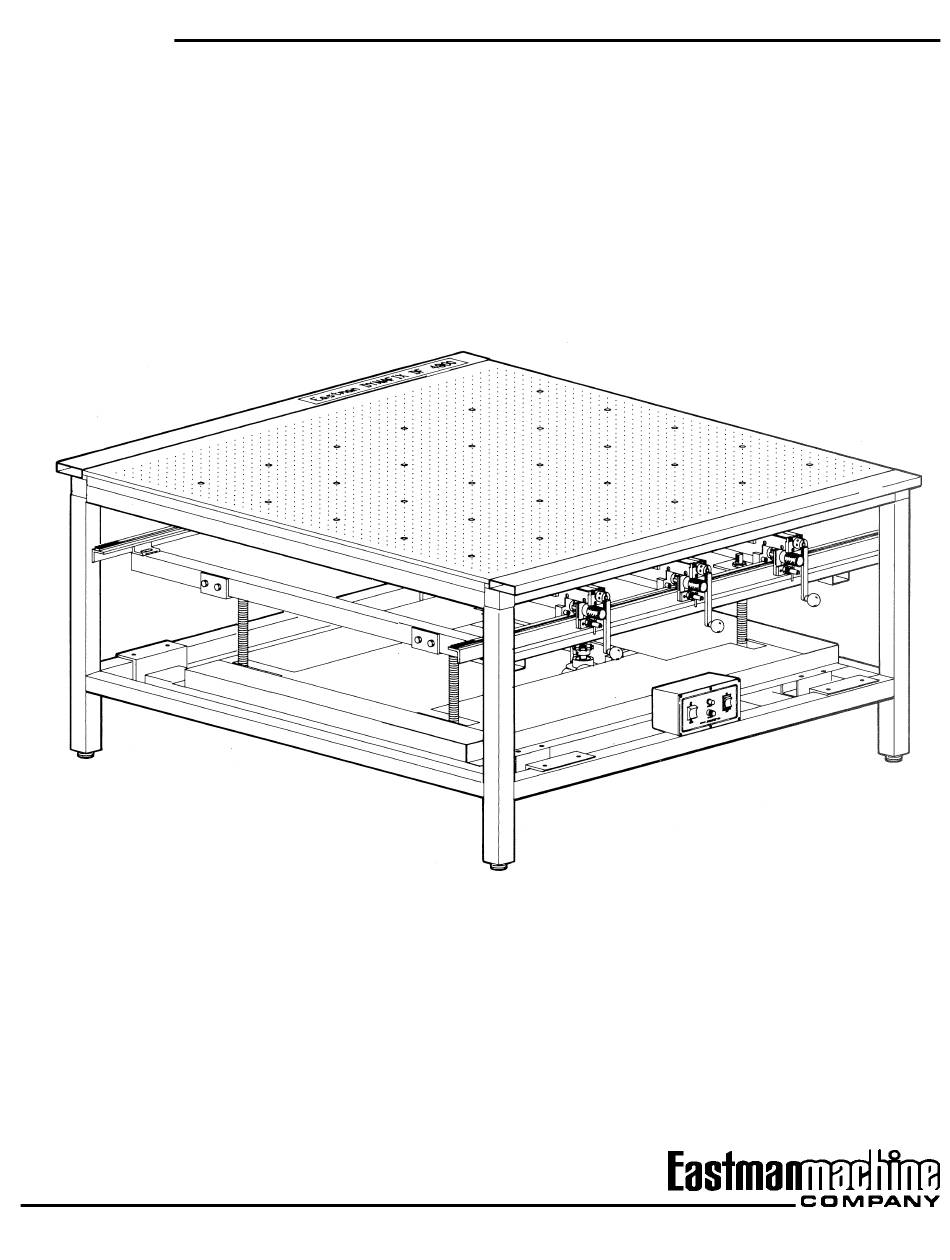

- Page 1 ® DYNAMIC - PIN TABLE DYNAFIX DF 4800 Patent #5,090,669 Instruction Manual & Illustrated Parts List 779 Washington St., Buffalo, N.Y. 14203-1396 U.S.A. (716)856-2200 Telex 4432018 Cable EMCO BUF Fax (716)856-1140 Manufacturers of Eastman Cloth Cutting and Cloth Spreading Machines...
-
Page 2: Table Of Contents
If you do not have qualified operators to instruct new persons, contact your EASTMAN sales representative or EASTMAN factory direct. Electrical connections and servicing to this equipment should be made by a qualified electrician who is familiar with applicable codes and regulations. -
Page 3: Installation
Operators must be cautioned that improper use of this equipment can cause bodily injury. If you do not have qualified operators to instruct new persons, contact your Eastman sales representative or write to Eastman Machine factory direct. Installation Pin Bar Installation Move shipping crate to new table location. -
Page 4: Operation
The optional Servo Cutter each hole). If the index bar is not centered, loosen the (2) two offered by Eastman is equipped with a small base plate to screws on the rail bracket (operator’s side) and slide the rail allow for cutting on the pin table with the pins installed. -
Page 6: Maintenance
EASTMAN Before spreading the next stack of material the operator has the option of removing all the pins or relocate some of the existing pins. To remove pins, raise the pins up to the top position. Unlock the pin bars by sliding the eccentric cam in and swinging the clamp handle to the unlocking position. -
Page 7: Pin Table Assembly
Pin Table Assembly ITEM PART NO. DESCRIPTION QTY. PT-12220-5-60 Pin, 5/64 x 7 1/2 PT-12637 Pin, Bulb Type 11-4147 Switch, Main ON/OFF 11-1342 Thermal Overload Unit (not shown) 11-4149 Starter 11-1343 Thermal Overload Unit (not shown) 11-4148 Blower Switch, START/STOP 11-6000 Blower, 60HZ. -
Page 8: 4' End Section Pt-04294-Ms
EASTMAN 4' End Section PT-04294-MS ITEM PART NO. DESCRIPTION QTY. PT-40184-MS Table Top 9124-053 Decal PT-12191 Top Rail PT-12192 Upper Side Rail PT-21135 Corner Connector, L.H. PT-12189-MS Cross Rail 331-34-10 Screw, Hex Head 1/4-20 x 5/8 PT-12179 Table Top Support... -
Page 10: 8' End Section (Pt-04277-Ms, Pt-04290-Ms)
EASTMAN 8' End Section PT-04277-MS (Left) shown PT-04290-MS (Right) ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. PT-04182-MS Table Top PT-12194 Elbow 9124-053 Decal PT-12203 4" PVC, 6" Long PT-12188 Top Rail (Left End only) PT-12187 Upper Side Rail PT-12204 4"... -
Page 12: 8' Middle Section (Pt-04292-Ms)
EASTMAN 8' Middle Section PT-04292-MS ITEM PART NO. DESCRIPTION QTY. PT-40183-MS Table Top 9124-053 Decal PT-12188 Top Rail PT-12190 Upper Side Rail 335-36-12 Screw, Socket Head 5/16-18 x 3/4 PT-30351-MS Manifold Bar 363-12-12 Screw, Self Tap #12 x 3/4 PT-12179... -
Page 14: 8' Additional Section Pt-04293-Ms
EASTMAN 8' Additional Section PT-04293-MS ITEM PART NO. DESCRIPTION QTY. PT-04183-MS Table Top PT-12188 Top Rail PT-12190 Upper Side Rail 335-36-12 Screw, Socket Head 5/16-18 x 3/4 363-12-12 Screw, Self Tap #12 x 3/4 PT-12179 Table Top Support 331-34-10 Screw, Hex Head... -
Page 16: Middle Section Kit (Pt-04291-Ms)
EASTMAN Middle Section Kit PT-04291-MS ITEM PART NO. DESCRIPTION QTY. PT-21133 Center Connector PT-12201 Sleeve Tube PT-30351-MS Manifold, 2 Sided 205-38 Nut, Hex 3/8-16 402-38 Washer, Lock 3/8 331-38-40 Screw, Hex Head 3/8-16 x 2 1/2 PT-12195 4" Adapter PT-12194... -
Page 18: Lifty Assembly (Pt-04283-Ms, Pt-04284-Ms)
EASTMAN Lift Assembly PT-04284-MS (4' Lift) PT-04283-MS (8' Lift) ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. 332-93-6 Screw, Flat Head 8-32 x 3/8 402-44 Washer, Lock 1/2 9013-006 Track 16 ft. 331-38-48 Screw, Hex Head PT-12176 Track Spacer (4' only) -
Page 20: Sprocket Assembly (Pt-03150-Ms)
EASTMAN Sprocket Assembly PT-03150 ITEM PART NO. DESCRIPTION QTY. 217-52 Nut, Elastic Hex 3/4-16 410-51 Washer, Flat 3/4 PT-21124 Screw Bracket 331-38-48 Screw, Hex Head 3/8-16 x 3 402-38 Washer, Lock 3/8 203-38 Nut, Hex 3/8-16 PT-21125 Screw Shaft PT-12218... -
Page 21: Cam Assembly Pt-02392-Ms
Cam Assembly PT-02392-MS ITEM PART NO. DESCRIPTION QTY. 335-102-8 Screw, Socket Head 10-32 x 1/2 402-010 Washer, Lock #10 410-010 Washer, Flat #10 PT-12226 Bracket, Cam Rod PT-21122 Cam Rod 205-34 Nut, Hex 1/4-20 402-34 Washer, Lock 1/4 PT-12171 332-34-16 Screw, Flat Head 1/4-20 x 1... -
Page 22: Limit Switch Assembly Pt-03152)
EASTMAN Limit Switch Assembly PT-03152 ITEM PART NO. DESCRIPTION QTY. 335-102-20 Screw, Socket Head 10-32 x 1 1/4 402-010 Washer, Lock #10 PT-21123 Limit Switch Cover 313-86-20 Screw, Round Head 6-32 x 1 1/4 410-010 Washer, Flat #10 11-1167 Cover, Limit Switch... -
Page 23: Control Box (11-2500)
Control Box 11-2500 ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. 313-86-8 Screw, Round Head 11-1312 Fuse Holder 6-32 x 1/2 11-1336 Fuse, 15 amp 11-1797 Receptacle 313-86-8 Screw, Round Head 11-1797-1 Pins, Male 6-32 x 1/2 203-86 Nut, Hex 6-32 9124-054 Decal, Control Box... -
Page 24: Pin Bar (Pt-03141-Ms)
EASTMAN Pin Bar PT-03141-MS ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. 9078-006 Index Pin PT-21096-MS Nut Bar 206-43 Nut, Hex 1/2-13 PT-21094-2-MS Pin Guide, Left 335-34-10 Screw, Socket Head PT-21097-MS Pin Support 1/4-20 x 5/8 PT-21094-1-MS Pin Guide, Right... - Page 25 Patent No. 5,090,669...
-
Page 26: Wiring Diagram (11-2550)
EASTMAN Wiring Diagram 11-2550... -
Page 27: Service Record And Notes
Service Record Machine Serial No.: Machine Voltage: Date of Purchase: Date Type of Service Performed Notes:... - Page 28 This guarantee does not include making good for damages caused by misuse, neglect or normal wear; and is void if other than genuine EASTMAN parts are used in the machine. 779 Washington St., Buffalo, N.Y. 14203-1396 U.S.A. (716)856-2200 Telex 4432018 Cable EMCO BUF Fax (716)856-1140 Manufacturers of Eastman Cloth Cutting and Cloth Spreading Machines ©...
