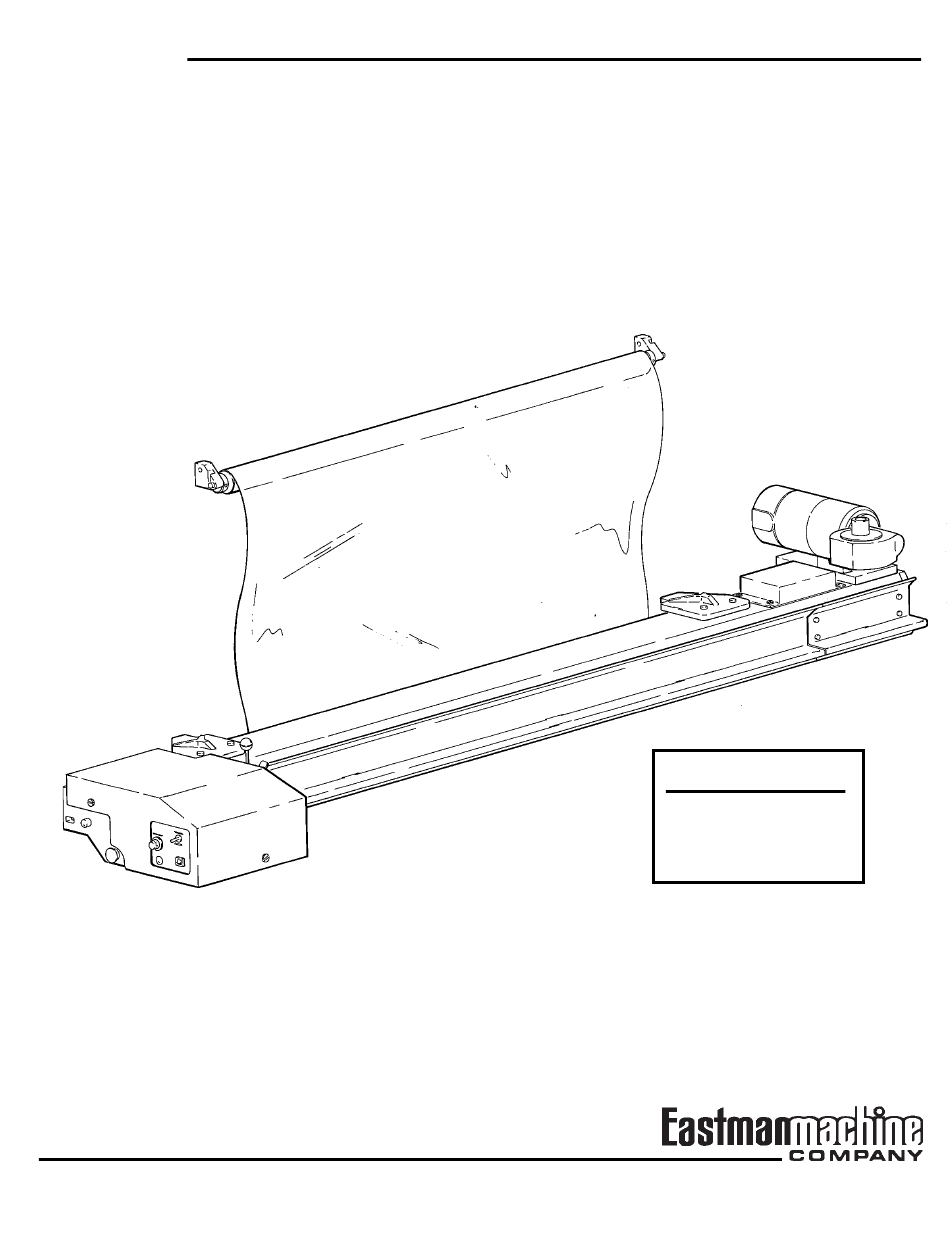

EASTMAN
TRIGGER PLUS
Knifebox
IMPORTANT
The purchaser must instruct all operators on the proper use of this equipment. All standard industrial
safety measures and equipment should be provided to protect the operator. Operators must be cautioned
that improper or careless use of this equipment may cause personal injury. If you do not have qualified
operators to instruct new persons, contact your EASTMAN sales representative or EASTMAN factory
direct.
779 Washington St., Buffalo, N.Y. 14203 U.S.A. (716)856-2200 Telex 4432018 Cable EMCO BUF Fax (716)856-1140
Manufacturers of Eastman Cloth Cutting and CRA Cloth Spreading Machines
Form CR-50-0086
.
.
Instruction
Manual &
Parts List
CAUTION
Machine Equipped
With
Sharp Blade
.
.
Advertisement
Related Manuals for EASTMAN TRIGGER PLUS Knifebox
Summary of Contents for EASTMAN TRIGGER PLUS Knifebox
- Page 1 Operators must be cautioned that improper or careless use of this equipment may cause personal injury. If you do not have qualified operators to instruct new persons, contact your EASTMAN sales representative or EASTMAN factory direct.
- Page 2 EASTMAN CAUTION This machine is equipped with a sharpe knife. Keep hands away from bottom of knifebox at all times. When machine is not in operation the knifebox should be kept at lowest point in elevator travel. Be sure power supply is disconnected before beginning any service, adjustment or repair.
- Page 3 MAINTENANCE Replace Sharpening Stones Sharpen Knife Bring knife block to operators' end of machine and raise elevator to top of travel. Disconnect knifebox power plug from Bring knife block to operators' end of machine and raise socket in front cover. Remove cutting block assembly by elevator to top of travel.
- Page 4 Schematic & Wiring To order Full Size drawing, request Blue Print Diagram Name and Diagram Number. 11-3164 Note Engineering changes may have occurred after publication date. Check with your factory repre- sentative or Eastman direct if any deviations are found. Form CR-50-0086...
- Page 5 Trigger Plus Knifebox CHTP-04150-MS ITEM PART NO. DESCRIPTION QTY. W/Windscreen WCH-40126 Front Motor Guard 320-99-8 Screw, Binding Head 10-24 x 1/2 CHTW-03084-MS WCH-11242 Panel Stand-Off 313-86-4 Screw, Round Head 6-32 x 1/4 318-86-3 Screw,Pan Head 6-32 x 3/16 CH-328 Cover, Connector Form CR-50-0086...
- Page 6 EASTMAN Cutter Box ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. 11-1241 Motor, Knifebox CH-194 Spacer, Front Guard 335-34-16 Screw, Socket Head Cap CH-193 Spacer, Back Guard 1/4-20 x 1 9094-002 410-34 Washer, Flat 1/4 342-34-4 Setscrew, 1/4-20 x 1/4...
- Page 7 Machine Size Part No. 48" 9140-264-002 60" 9140-326-002 66" 9140-336-002 72" 9140-360-002 78" 9140-384-002 Form CR-50-0086...
- Page 8 EASTMAN Cutter Block Assembly CH-1006 ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. CH-1023 Bracket, Stabilizer Ass'y 503-3-8 Groove Pin 211-102 Nut, Elastic Hex, 10-22 CH-121 Gear, Spur, Modified 402-010 Washer, Lock #10 532-6-28 Pin, Dowel 410-010 Washer, Flat #10...
- Page 9 Form CR-50-0086...
- Page 10 EASTMAN Knifebox Door ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. M-85 Knob 320-99-6 Screw, Binding Head SY-10768 Handle, Latch 10-24 x 3/8 SY-11580 Block, Latch 410-010 Washer, Flat #10 335-102-12 Screw, Socket Head Cap E-120-4 Chain, 4-Link...
-
Page 11: Control Panel
Control Panel ITEM PART NO. DESCRIPTION QTY. 11-1563-1 Control Panel, Cutter Box 313-86-6 Screw, Round Head 6-32 x 3/8 11-3954 Toggle Switch 11-1904 P.C. Board Support 11-107 Circuit Board 11-1818 Potentiometer WCH-11243 Motor Guard Support 203-34 Nut, Hex 1/4-20 411-48-1 Fiber Washer 11-1803 Resistor... - Page 12 This guarantee does not include making good for damages caused by misuse, neglect or normal wear; and is void if other than genuine EASTMAN parts are used in the machine.
