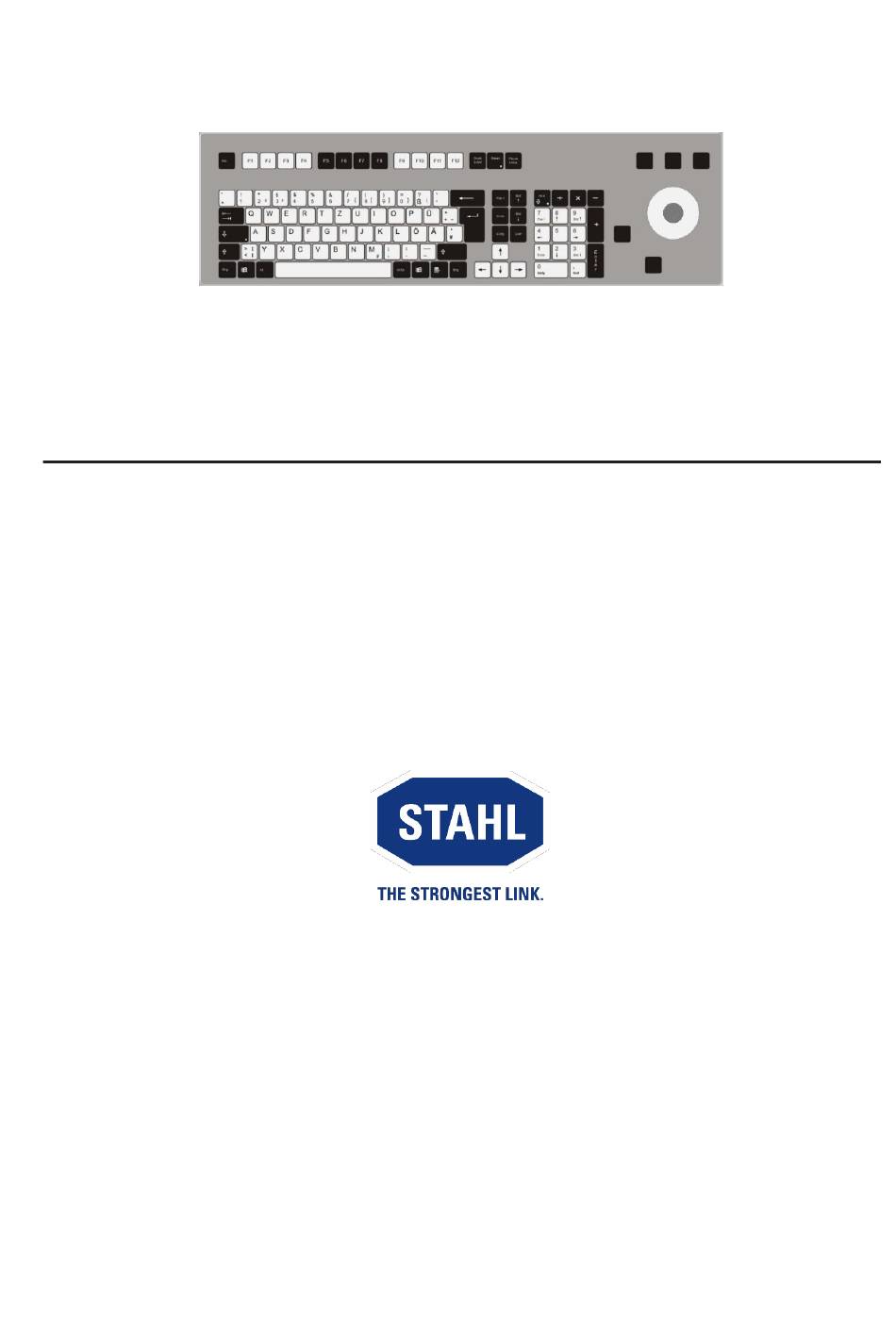

- Page 1 Operating Instructions KBD-USB Keyboards Version KBD-USB-TB50-* Version KBD-USB-M-* Version KBD-USB-P-* Version KBD-USB-J-* Operating Instructions Version: 01.00.03 Issue: 17.05.2021...
-
Page 2: Disclaimer
Trademarks The terms and names used in this document are registered trademarks and / or products of the companies in question. Copyright © 2021 R. STAHL HMI Systems GmbH. Subject to alterations. Page 2 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021... -
Page 3: Specific Markings
! Warnings Caution ! In ambient temperatures exceeding +45 °C the surface of the devices may heat up. Caution when touching ! R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021 Page 3 of 16... -
Page 4: Table Of Contents
Disposal / Restricted substances 13.1 Declaration of substances and restricted substances 13.1.1 Declarable substance groups 13.1.2 RoHS directive 2011/65/EC 13.1.3 IMO Resolution MEPC.269(68) Declaration of EC conformity Release Notes Page 4 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021... -
Page 5: Preface
The touchpad uses resistive technology and can therefore be operated with a touch pen or with gloved fingers. The keyboards can be mounted inside a front panel or a desktop housing. R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021 Page 5 of 16... -
Page 6: Type Allocation
Dimensions (W x H x D) [mm] / [ft] 581 x 186 x 50 / [1.91] x [0.61] x [0.16] Weight [kg] / [lbs] 3.0 / [6.6] Page 6 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021... -
Page 7: Conformity To Standards
KBD-USB-aa-DE Lanugage: German (QWERTZ) KBD-USB-aa-US Language: American (QUERTY) KBD-USB-aa-FR Language: French (AZERTY) KBD-USB-aa-FR-BE Language: French, Belgian version (AZERTY) KBD-USB-aa-CH Lanugage: German, Swiss layout KBD-USB-aa-ES Language: Spanish R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021 Page 7 of 16... -
Page 8: Safety Information
National safety and accident prevention rules apply. Use the device for its intended purpose only. No changes to the device are permitted. The enclosure may only be opened by R. STAHL HMI Systems GmbH. Cautionary note This is an EN 55022 Class A product. -
Page 9: Mechanical Dimensions
Mechanical dimensions Operating Instructions KBD-USB Keyboards Mechanical dimensions Dimensions in mm, [inch] Cut-out R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021 Page 9 of 16... -
Page 10: Connections
– if requested – have been authorized by the manufacturer. 12.1 Repairs / hazardous substances An error description must be enclosed with any units returned to R. STAHL HMI Systems GmbH for repairs. Remove all material residues. Please pay particular attention to the seal grooves and slits where material residues may be lodged. -
Page 11: Disposal / Restricted Substances
2018-08-15 Category SG4 Large equipment >50 cm R. STAHL HMI Systems GmbH meets the requirements of directive 2012/19/EU (WEEE) and is registered under the number DE 15180083. We shall take back our devices according to our General Terms and Conditions. -
Page 12: Declaration Of Ec Conformity
Operating Instructions KBD-USB KeyboardsKBD-USB Keyboards Declaration of EC conformity 14 Declaration of EC conformity Page 12 of 16 R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021... -
Page 13: Release Notes
Safety Information" Adaption and changing of section "Disposal" and "Material declaration" Renew EU declaration of conformity Adaption address field verso Formal changes R. STAHL HMI Systems GmbH / OI_KBD_USB_en_V_01_00_03.docx / 17.05.2021 Page 13 of 16... - Page 16 R. STAHL HMI Systems GmbH Adolf-Grimme-Allee 8 D 50829 Köln (Sales Support) +49 221 768 06 - 1000 (Technical Support) +49 221 768 06 - 5000 +49 221 768 06 - 4100 (Sales Support) sales.dehm@r-stahl.com (Technical Support) support.dehm@r-stahl.com r-stahl.com exicom.de...
