SainSmart Coreception Troubleshooting Manual page 4

7. Print stops halfway and reports as complete.
·The most common cause is that there was a filament jam/runout. Or clogged nozzle.
·Check for tangled filament on the spool.
·Check and make sure the filament is seated properly in the extruder.
·Heat the nozzle and ensure the filament is flowing as expected using the load filament
menu.
8. What is the motor amps for all 5?
1.0 A for X, Y, Z, E1 motors; 0.8A for E0 motor.
9. Can the extruder be mounted remote/long/Bowden configuration?
·There are many configurations to do this. The easiest is to remove the extruder assembly
from the top of the hot end gantry assembly. This is a simple process of removing the 2
screws to left side near the motor connector.
·Once that has been accomplished you can use t-slot screws to mount the entire
assembly in any location around the perimeter of the printer.
·Lastly you will need a cable to connect the extruder motor. The coreception default
configuration has the motor cable coming off the VGA breakout box. You will need a cable
that will reach from the board under the machine. To the selected location of the remote

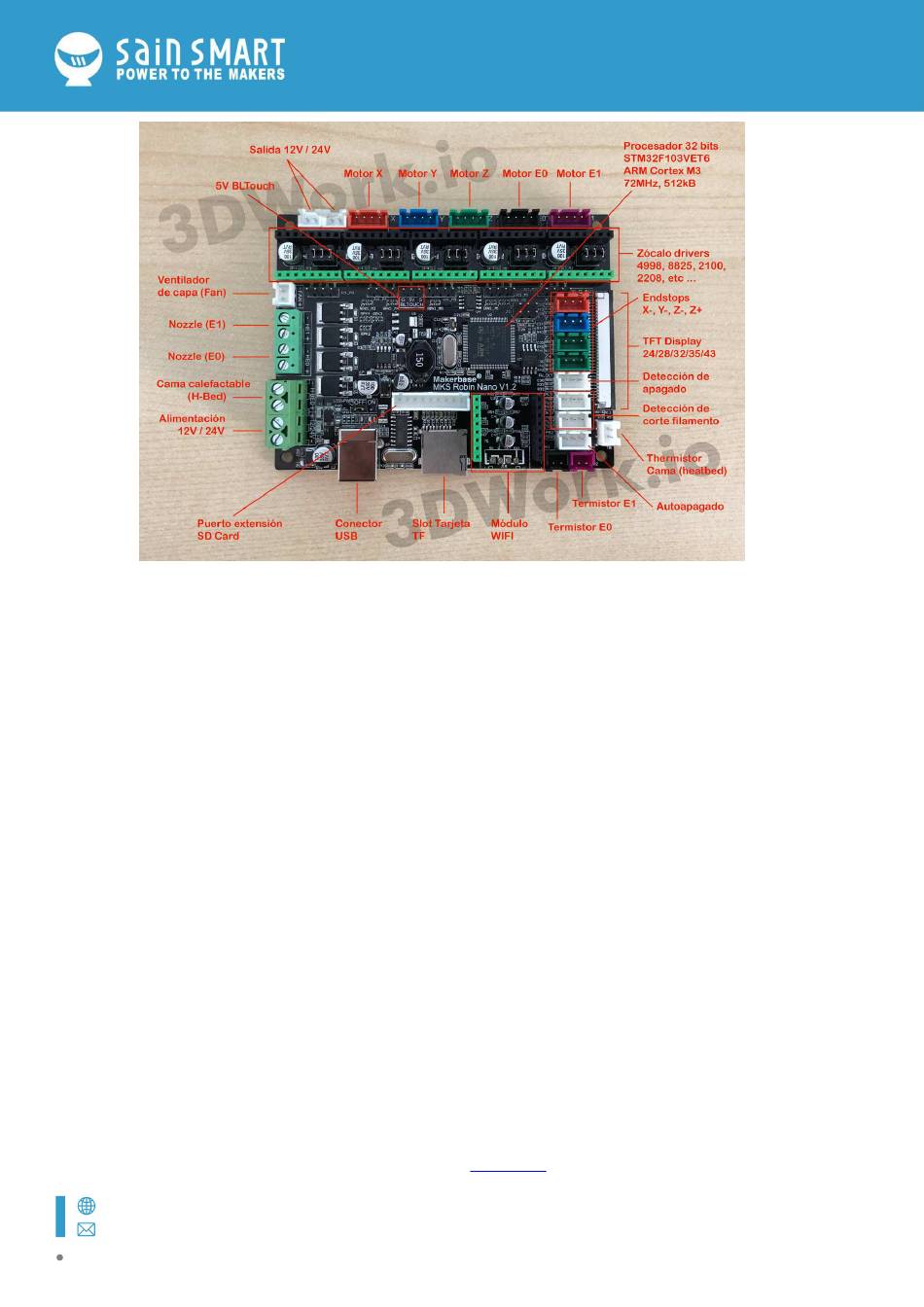

extruder. The new cable should connect to the Motor e0 pictured below.
·Example T-slot nut assortment from amazon.
