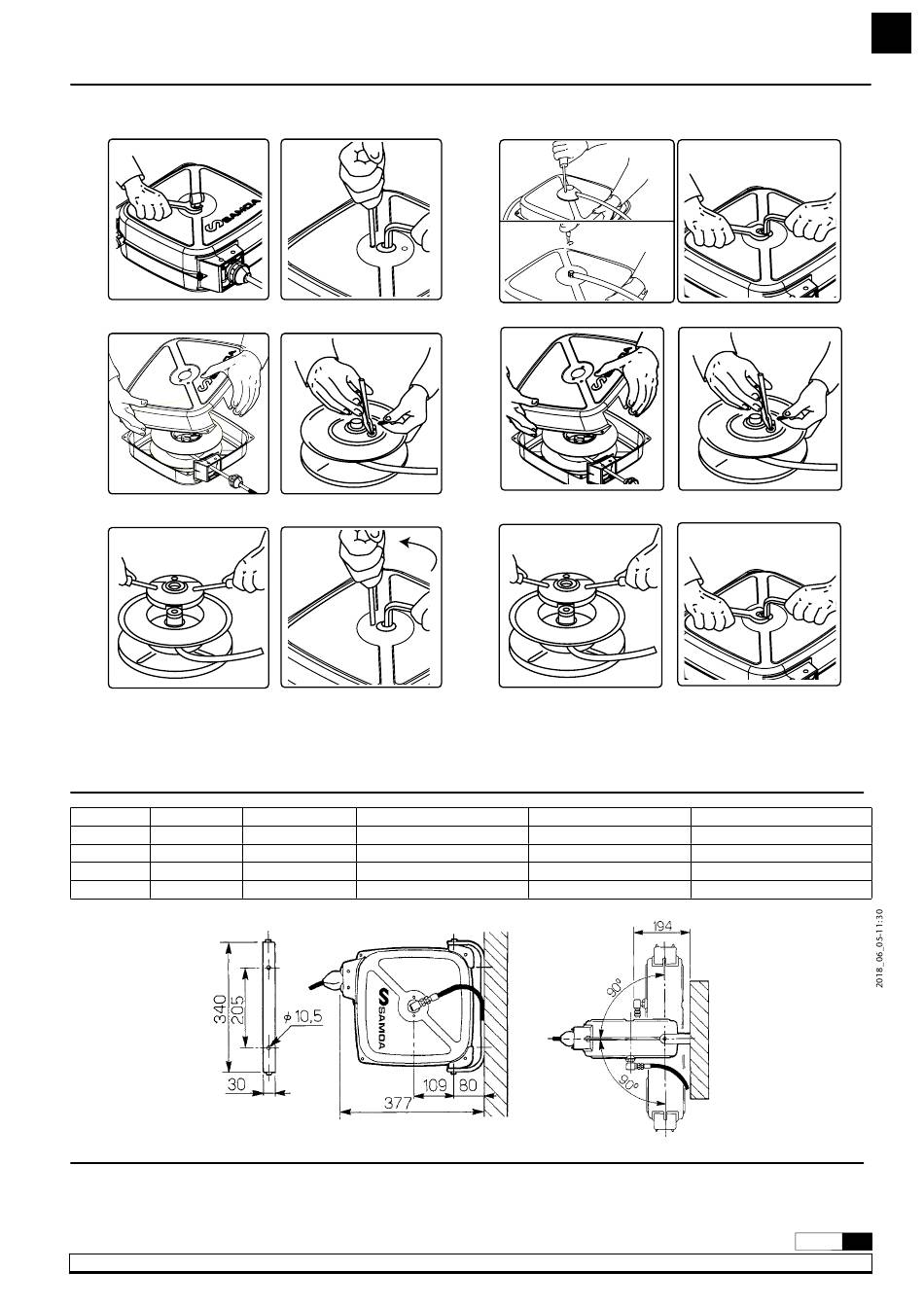

HOSE REPLACEMENT
Versión 500110, 500111
fig. 4a
fig. 4c
fig. 4e

TECHNICAL DATA

Part No. Application
500110 Air
500111
Air
500115 Air
500116 Air

SPARE PARTS

SEE PAGES, 14 AND 15
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
fig. 4b
fic. 4d
fig. 4f
Max. pressure Inlet - outlet thread
20 bar/ 280 psi 3/8"- 1/4" BSP M
20 bar/ 280 psi 3/8"- 3/8" BSP M
15 bar/ 220 psi 3/8"- 1/4" BSP M
15 bar/ 220 psi 3/8"- 3/8" BSP M
Versión 500115, 500116
fig. 5a fig. 5b
fig. 5c fic. 5d
fig. 5e fig. 5f
Hose diameter
Ø8 x Ø12 mm
Ø10 x Ø14 mm
Ø8 x Ø12 mm
Ø10 x Ø14 mm
EN
Hose length
12 m
10 m
15 m
12 m
3
R. 06/18 850 809
