Hilti HIT-RE 500 V3 1400 Jumbo Instruction for use Gebrauchsanweisung Mode d‘emploi Istruzioni per l‘uso Instrucciones de uso Instruções de utilização Handleiding Οδηγίες χρήσης (A, B) Kullanma talimatı 取扱説明書 使用说明 사용설명서 إرشادات االستخدام (A, B) Danger Arahan untuk penggunaan ms Contains: 2,2‘-[(1-methylethylidene)bis(4,1-phenyle-...
Page 3

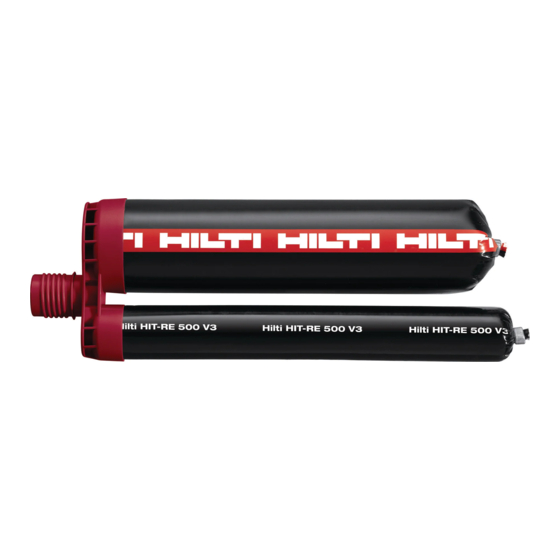

Hilti HIT-RE 500 V3 1400 Jumbo Adhesive anchoring system for rebar and anchor fastenings in concrete. Read the safety instructions, 42/43 general informations and warnings before using the product. Verbundmörtel für Betoneisen- und Dübelbefestigungen in Beton. Vor der Anwendung die Sicherheits- 44/45 vorschriften, die allgemeinen Informationen und die Warnhinweise lesen.
Page 4
Hilti HIT-RE 500 V3 1400 Jumbo 14…55 mm 70…250 mm 16 17 18 19 14…55 mm 70…3200 mm 20 21 14…40 mm 70…250 mm 22 23 14…40 mm 70…640 mm 24 25 14…40 mm 70…640 mm 26 27 14…35 mm 70…250 mm 28 29...
Page 5
Hilti HIT-RE 500 V3 1400 Jumbo 30 31 14...35 mm 70...1000 mm 32 33 18…35 mm 80…250 mm 34 35 36 37 18…35 mm 80…600 mm 38 39 14…55 mm 110…250 mm 22 23 24 25 14…55 mm 70…640 mm 40 41...
Page 6
Hilti HIT-RE 500 V3 1400 Jumbo Dry concrete Water saturated concrete Waterfilled borehole in Submerged borehole in concrete concrete Trockener Beton Wassergesättigter Beton Wassergefülltes Bohrloch Unterwasser-Bohrloch in Beton in Beton Béton sec Béton saturé d’eau Trou dans le béton rempli Trou dans le béton...
Page 7
Hilti HIT-RE 500 V3 1400 Jumbo Hammer drilling Diamond coring Hollow drill bit Roughening tool Hammerbohren Diamantbohren Hohlbohrer Aufrauwerkzeug Perçage avec percussion Forage au diamant Foret creux Outil de rugosification Foratura con percussione Foratura con punta Punta cava Utensile di irruvidimento...
Page 9
Hilti HIT-RE 500 V3 1400 Jumbo work cure, ini cure, full roughen Working time Initial curing time Curing time Roughening time Verarbeitungszeit Montagefestigkeit Aushärtezeit Aufrauzeit Temps de manipulation Stabilité du montage Temps de durcissement Temps de rugosification Tempo di lavorazione...
Page 10
Hilti HIT-RE 500 V3 1400 Jumbo HAS-U, -HDG, -A4, -HCR / HIT-V, -F, -R / HAS / HAS-E HIT-V Ø d Ø d [mm] [mm] [mm] [Nm] Ø d [mm] 70…240 80…320 90…400 100…480 110…540 120…600 1 inch = 25,4 mm...
Page 11
Hilti HIT-RE 500 V3 1400 Jumbo HIS (-N, -RN) Ø d Ø d [mm] [mm] [mm] [mm] [Nm] Ø d [mm] 8…20 10…25 12…30 16…40 20…50...
Page 14
Hilti HIT-RE 500 V3 1400 Jumbo [°F] [°C] work cure, ini cure, full -5 ... -1 48 h 168 h 23 ... 31 0 ... 4 24 h 48 h 32 ... 40 5 ... 9 16 h 24 h 41 ...
Page 15
Hilti HIT-RE 500 V3 1400 Jumbo Rebar - h ≥ 20d -5 °C ... 40 °C 5 °C ... 40 °C HIT-P 8000D ...40mm ...3200mm 23 °F ... 104 °F 41 °F ... 104 °F -5 °C ... 40 °C 5 °C ...
Page 16
14…55 mm 70…250 mm 10...12 6 bar / 6 bar / 90 psi 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D ~ ⁄...
Page 17
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Page 18
14…55 mm 70…3200 mm 10...13 6 bar / 6 bar / 6 bar / 90 psi 90 psi 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D HIT-SZ ⁄ HIT-RE-M...
Page 19
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Page 20
14…55 mm 70…3200 mm 10...13 6 bar / 6 bar / 6 bar / 90 psi 90 psi 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D ⁄ HIT-OHC HIT-SZ HIT-OHW HIT-RE-M...
Page 21
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Page 22
14…40 mm 70…250 mm 14…52 mm 10...13 ≥2x ≥2x 6 bar / 6 bar / 6 bar / 90 psi 90 psi 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D...
Page 23
Hilti HIT-RE 500 V3 1400 Jumbo ~ ⁄ work work cure, ini cure, full cure, full 10 11...
Page 24
14…40 mm 70…640 mm 14…52 mm 70…3200 mm 10...13 ≥2x ≥2x 6 bar / 6 bar / 6 bar / 90 psi 90 psi 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D...
Page 25
Hilti HIT-RE 500 V3 1400 Jumbo HIT-SZ ⁄ HIT-RE-M work work cure, ini cure, full cure, full 10 11...
Page 26
14« 40 mm 70« 640 mm 1400 ml / 47.3 fl. oz ‘ 50 mm 35 mm P 8000 UW 8000 D HIT-SZ HIT-RE-M...
Page 27
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Page 28
14...35 mm 70...250 mm TE-CD TE-YD 10 13 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D ~ ⁄...
Page 29
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Page 30
14...35 mm 70...1000 mm TE-CD TE-YD 10 13 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D HIT-SZ ⁄ HIT-RE-M...
Page 31
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Page 32
14...35 mm 70...1000 mm 10 13 TE-CD TE-YD 1400 ml / 47.3 fl. oz Ø 50 mm P 8000 D 35 mm ⁄ HIT-OHC HIT-SZ HIT-OHW HIT-RE-M...
Page 33
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Page 34
18…35 mm 80…250 mm roughen TE-YRT 10...13 ≥2x 6 bar / 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D...
Page 35
Hilti HIT-RE 500 V3 1400 Jumbo ~ ⁄ work work cure, ini cure, full cure, full 10 11...
Page 36
18…35 mm 80…600 mm roughen TE-YRT 10...13 ≥2x 6 bar / 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D...
Page 37
Hilti HIT-RE 500 V3 1400 Jumbo HIT-SZ ⁄ HIT-RE-M work work cure, ini cure, full cure, full 10 11...
Page 38
18…35 mm 80…600 mm 10...13 roughen TE-YRT ≥2x 6 bar / 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D ⁄ HIT-OHC HIT-SZ HIT-OHW HIT-RE-M...
Page 39
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Page 40
14…52 mm 70…3200 mm 10...13 ≥2x ≥2x 6 bar / 6 bar / 6 bar / 90 psi 90 psi 90 psi 1400 ml / 47.3 fl. oz Ø 50 mm 35 mm P 8000 D ⁄ HIT-OHC HIT-SZ HIT-OHW HIT-RE-M...
Page 41
Hilti HIT-RE 500 V3 1400 Jumbo work work cure, ini cure, full cure, full 10 11...
Hilti HIT-RE 500 V3 1400 Jumbo Adhesive anchoring system for rebar and anchor fastenings in concrete Prior to use of product, follow the instructions for use and the legally obligated safety precautions. ▶ See the Safety Data Sheet for this product.
– Hilti hollow drill bits TE-CD, TE-YD must be used in conjunction with a properly maintained Hilti vacuum cleaner with model and suction capacity (volumetric flow rate) as specified in the accessory table.
Hilti HIT-RE 500 V3 1400 Jumbo Verbundmörtel für Betoneisen- und Dübelbefestigungen in Beton Vor der Verwendung diese Gebrauchsanleitung lesen und die Sicherheitsvorschriften einhalten. ▶ Sicherheitsdatenblatt des Produkts beachten. ▶ Hilti HIT-RE 500 Enthält: 2,2-Bis(4-hydroxyphenyl)propan-bis(2,3-epoxypropyl)ether (A); Trimethylolpropantriglycidylether (A); 2-methyl- 1,5-pentanediamine (B); m-Xylylenediamin (B);...
Page 45
Bohrklein, Staub, Wasser, Eis, Öl, Fett oder anderen Verunreinigungen sein. – Die Hilti Hohlbohrer TE-CD und TE-YD müssen in Verbindung mit einem fachgerecht gewarteten Hilti Staubsauger eingesetzt werden. Angaben zu geeigneten Modellen und zur Saugleistung (Volumenstrom) entnehmen Sie der Zubehörtabelle.
Page 46
Hilti HIT-RE 500 V3 1400 Jumbo Mortier de scellement pour ancrage de chevilles et d'armatures dans le béton Avant toute utilisation, bien lire le présent mode d'emploi ainsi que les directives de sécurité qui y sont mentionnées. ▶ Se reporter à la Fiche de données de sécurité.
Garantie: pour tous détails concernant la garantie, consulter les conditions de vente Hilti. Le non respect de ces instructions de pose, l’utilisation de chevilles autres qu’Hilti, la pose dans un béton faible ou matériau ou des applications particulières peuvent avoir un impact sur la sécurité et la performance de la fixation.
Hilti HIT-RE 500 V3 1400 Jumbo Resina ad iniezione per fissaggi con tondini per cemento armato e con tasselli nel calcestruzzo Prima dell'utilizzo, leggere le presenti Istruzioni per l'uso ed attenersi alle norme di sicurezza. ▶ Consultare la scheda tecnica dati di sicurezza di questo prodotto.
Page 49
– Le punte per perforatori Hilti TE-CD, TE-YD devono essere utilizzate in combinazione con un aspiratore Hilti correttamente mantenuto, con modello e capacità di aspirazione (portata volumetrica) come specificato nella tabella degli accessori.
Page 50
Hilti HIT-RE 500 V3 1400 Jumbo Resina de inyección para la fijación de anclajes y tacos en hormigón Lea estas instrucciones de uso y observe las indicaciones de seguridad antes de utilizar el producto. ▶ Consulte con las Hoja de datos de seguridad para este producto.
– Las brocas huecas TE-CD, TE-YD de Hilti deben utilizarse con una aspiradora de Hilti en buen estado de funcionamiento del modelo y la capacidad de succión (tasa de flujo volumétrico) que se especifican en la tabla de accesorios.
Page 52
Hilti HIT-RE 500 V3 1400 Jumbo Sistema de ancoragem química para a fixação de ferros de armadura e ancoragens em betão Antes de utilizar este produto, siga as instruções de utilização e as precauções de segurança obrigatórias por lei. ▶...
Page 53
água, gelo, óleo, gordura ou outras impurezas antes de efectuar a injecção. – A brocas de perfuração ocas Hilti TE-CD e TE-YD têm de ser usadas em conjunto com um aspirador Hilti em boas condições de funcionamento e com o modelo e capacidade de aspiração (débito volumétrico) especificados na tabela dos acessórios.
Page 54
Hilti HIT-RE 500 V3 1400 Jumbo Ankermortel voor bevestiging van betonijzer en pluggen in beton Voor gebruik deze gebruiksaanwijzing lezen en de veiligheidsvoorschriften aanhouden. ▶ Het veiligheidsgegevensblad van het product in acht nemen. ▶ Hilti HIT-RE 500 V3 Bevat: 2,2-bis(4-hydroxyfenyl)propaan-bis(2,3-epoxypropyl)ether (A); Trimethylolpropane triglycidylether (A); 2-methyl- 1,5-pentanediamine (B);...
Page 55
– Hilti TE-CD en TE-YD holle boren moeten worden gebruikt met een goed onderhouden Hilti-stofzuiger van het model en met het zuigvermogen (debiet) zoals omschreven in de accessoiretabel.
Page 56
Hilti HIT-RE 500 V3 1400 Jumbo Χημικό αγκύριο για στερεώσεις αναμονών οπλισμού και κοχλιών αγκύρωσης σε σκυρόδεμα Πριν από τη χρήση, διαβάστε αυτές τις οδηγίες χρήσης και ακολουθήστε τις προδιαγραφές ασφαλείας. ▶ Προσέξτε το δελτίο δεδομένων ασφαλείας του προϊόντος. ▶...
Page 57
ακαθαρσίες. – Τα ειδικά τρυπάνια Hilti TE-CD και TE-YD πρέπει να χρησιμοποιούνται σε συνδυασμό με σωστά συντηρημένη ηλεκτρική σκούπα Hilti, το μοντέλο και η απορροφητική ικανότητα (παροχή όγκου) της οποίας θα είναι σύμφωνη με όσα καθορίζονται στον πίνακα των αξεσουάρ.
Page 58
Hilti HIT-RE 500 V3 1400 Jumbo Beton demiri ve dübellerin beton içerisinde sabitlenmesi için bağlantı harcı Kullanımdan önce, bu kullanım kılavuzunu okuyunuz ve güvenlik yönetmeliklerine uyunuz. ▶ Ürünlerin güvenlik veri formlarına bakınız. ▶ Hilti HIT-RE 500 V3 İçerdiği maddeler: reaksiyon ürünü: 2,2‘-[(1-metiletilidin)bis(4,1-fenilenokzimetilen)]bisokziran (A); Trimethylolpropane triglycidylether (A);...
– Hilti TE-CD, TE-YD tozsuz delme uçları, aksesuar tablosunda belirtilen model ve emme kapasitesindeki (hacimsel debi), bakımı uygun şekilde yapılan bir Hilti elektrik süpürgesiyle birlikte kullanılmalıdır.
Page 66
Hilti HIT-RE 500 V3 1400 Jumbo 콘크리트 고정용 철근 및 핀 연결 모르타르 시스템 사용 전에 본 사용설명서를 숙독하고 안전규칙을 준수한다. ▶ 제품의 안전자료에 유의한다. ▶ Hilti HIT-RE 500 V3 포함: 비스페놀 A 다이글리시딜 에테르 (A), Trimethylolpropane triglycidylether (A), m-자일렌다이아민(m-크실...
Page 67
모르타르 분사 전에 천공 구멍을 건조시키고, 남아 있는 부스러기, 먼지, 물기, 얼음, 오일, 그리스 또는 기타 이물질을 제거해야 한다. – Hilti 중공 드릴 비트 TE-CD, TE-YD는 액세서리 테이블에 명시된 모델 및 흡입 용량(용적 유량)을 갖춘 적절히 관리된 힐티 진공 청소기와 함께 사용해야 합니다.
Page 68
.− تنظيف الث ُ قب من خالل النفخ - انفخ الث ُ قب بتيار هواء خال ٍ من الزيت إلى أن يخرج الهواء من الث ُ قب خاليا من األتربة محفوظ بشكل صحيح بالطراز وقدرة الشفط (معدل التدفقHilti مع شفاط هواءHilti منTE-YD وTE-CD − يجب استخدام ل ُ قم حفر التجاويف...
Page 69
Hilti HIT-RE 500 V3 1400 Jumbo مالط التثبيت ألعمال تثبيت أسياخ الحديد والخوابير ف ي الخرسانة .احرص قبل االستعمال على ق ر اءة إرشادات االستخدام هذه وااللتزام بتعليمات األمان .ت ر اعى نشرة بيانات السالمة الخاصة بالمنتج Hilti HIT-RE 500 V3 2,2‘-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)]bisoxirane (A);...
Page 70
Hilti HIT-RE 500 V3 1400 Jumbo Sistem penambatan perekat untuk batang penulangan dan pengikatan penambatan dalam konkrit Sebelum menggunakan produk, ikuti arahan untuk penggunaan dan langkah keselamatan yang diwajibkan undang-undang. ▶ Lihat Risalah Data Keselamatan untuk produk ini. ▶ Hilti HIT-RE 500 V3 Mengandungi: 2,2‘-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)]bisoxirane (A);...
Page 71
– Mata gerudi berongga Hilti TE-CD, TE-YD mesti digunakan bersama pembersih vakum Hilti yang diselenggara dengan baik yang mempunyai model dan keupayaan sedutan (kadar aliran isi padu) seperti yang ditetapkan dalam jadual aksesori.
