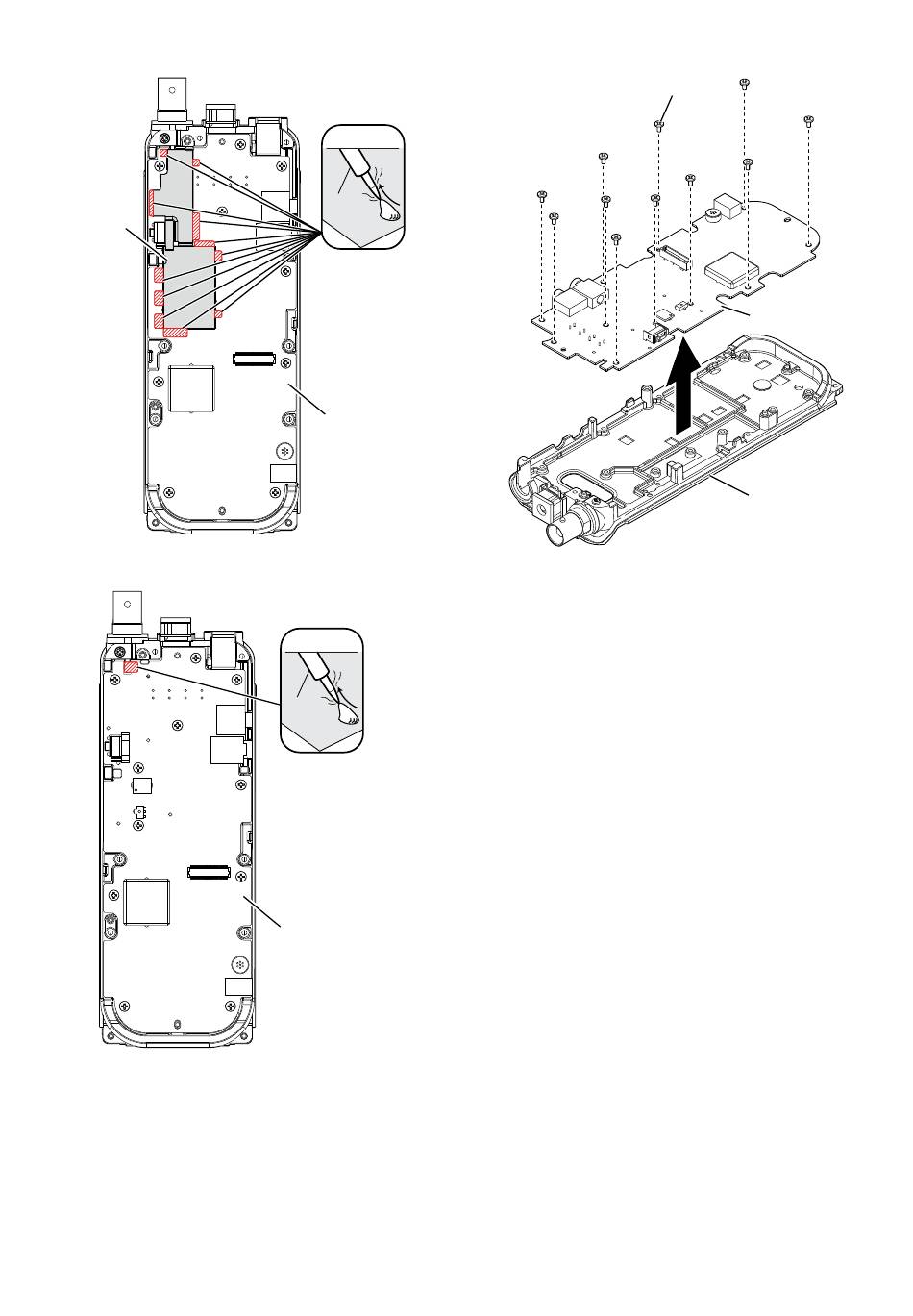

2. REMOVING THE MAIN/-1 UNIT
1)
Unsolder 11 points on the shield plate, and then
remove it.
Shield plate
2)
Unsolder a point at the antenna connector.
UNSOLDER
Solder
remover
MAIN/-1 UNIT
UNSOLDER
Solder
remover
MAIN/-1 UNIT
3-2
3)
Remove 11 screws from the MAIN/-1 UNIT, and
then remove it from the chassis.
Screws×11
MAIN/-1 UNIT
Chassis
