Merlin CM8002ANZ-1 Quick Start Manual page 2

DISCONNECT POWER TO GARAGE DOOR OPENER BEFORE INSTALLING
RECEIVER.
NOTE: The CM8002ANZ-1 can be programmed to receive up to 15 codes for each channel.
INSTALLATION
1. Fasten the receiver securely with screws through the corner holes which are located under the cover.
2. Apply power to the AC/DC terminals on the circuit board (see illustration). Ensure the Power input link is in the
correct position to suit the supply voltage.
3. Connect operator control board to the terminals (Channel A) of the Universal Receiver. At the same time connect any
other hardwired inputs in parallel (i.e.output is Normally Open). Connect any secondary hardwired inputs (if you have
to operate 2 doors) to terminals. (Channel B).
4. Plug in the transformer or apply power.
5. Ensure the door or gate is safe to use then press the Test button for Channel A or B to test your device.

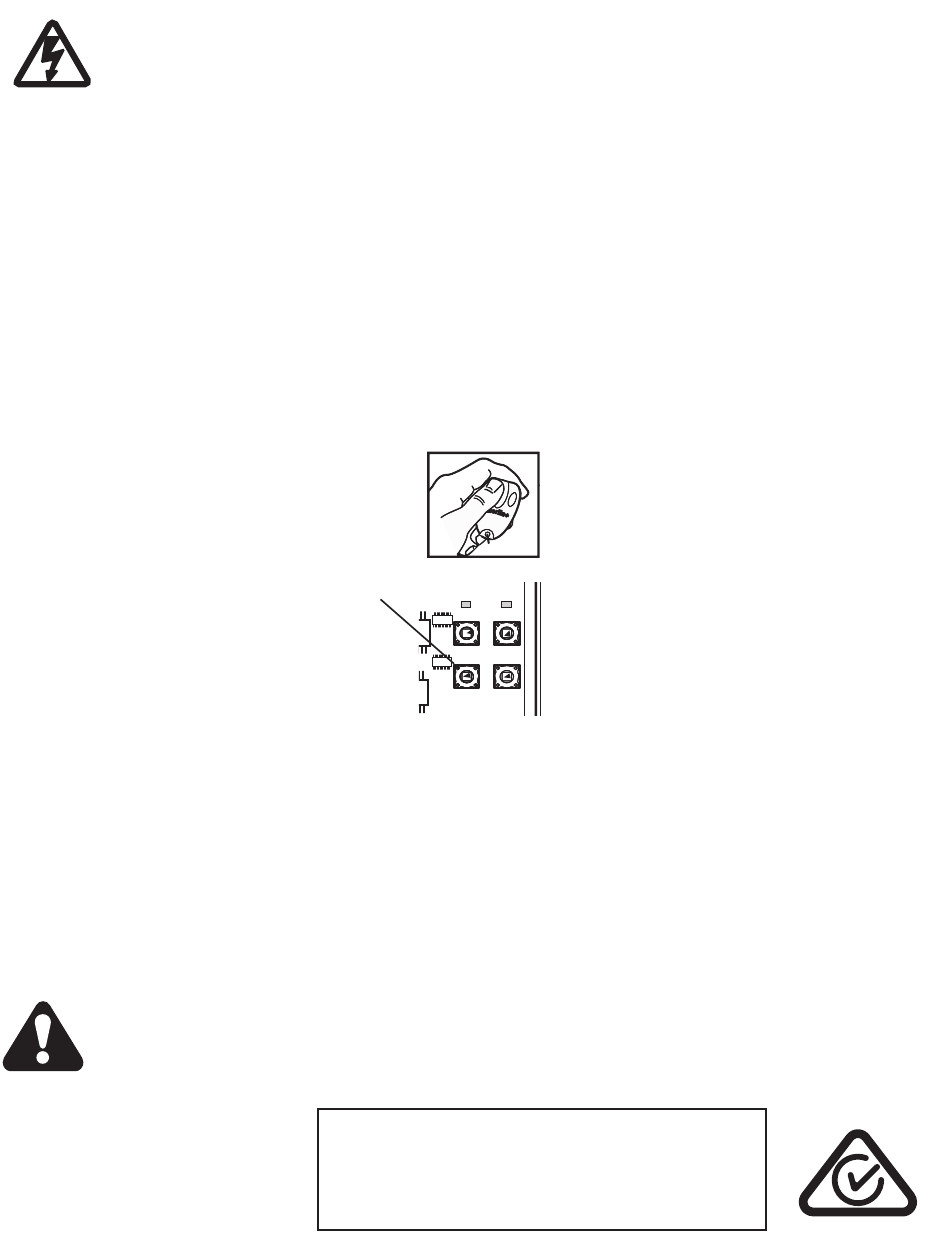

PROGRAMMING THE RECEIVER
1. Press and hold the remote control push button.
2. Press and release the Learn button
for the channel you wish to use.
The indicator light will flash once.
3. Release the remote push button.
NOTE: If you release the remote control push button before the indicator lights flash, the opener will not accept the code.
Repeat steps 1–3 to program the receiver for all remote controls in use for that door. If a second door is in use, use a
different remote control button and repeat the steps for channel B.
Replace top cover with mounting screws.
To erase all codes from the receiver: hold the receiver's Learn button until the indicator light goes off (after 6 seconds). All
codes that the receiver has learned will be erased.
Activate the opener only when door is in full view, free of obstruction and properly
adjusted. No one should enter or leave garage while door is in motion. Do not allow
children to operate push button(s) or remote(s). Do not allow children to play near the
door.
114A4786A
A B
L DS 4
L DS 3
T es t T es t
L earnA L earnB
SPECIFICATIONS
Output Rating ...........................Out put max. = 5 A; V max. = 30V AC/DC
Power input <24V ...............................................12-16V AC, @ 30 mA
.................................................................................12-24V DC, @ 30 mA
>24V ...............................................16-30V AC, @ 30 mA
..................................................................................24-35V DC,@ 30 mA
RF Frequency ......................................................................... 433.92MHz
