Merlin E8003 User Manual

APPLICATION
The receiver can be used as a single or three channel receiver to
control up to 3 gates, commercial operators or residential door
openers. The receiver can also be used with a 3-button remote
control to operate the OPEN, CLOSE, and STOP feature on a
commercial door operator. The receiver is not for use with MyQ™
enabled garage door openers or devices.
Each channel is compatible with a specified number of remote
controls and keypads. Refer to the list below:
• CH1: 50 remote controls and 2 keypads
• CH2: 20 remote controls and 2 keypads
• CH3: 20 remote controls and 2 keypads
When the channel has reached full capacity for remote controls,
all LEDs will blink 3 times. When the channel has reached full
capacity for keypads, all LEDs will blink 4 times. Additional
accessories can be programmed, however, the newly
programmed accessory will replace the first programmed
accessory.
NOTE: The receiver will only allow you to program a button on the remote
control to one channel at a time. For example, if the button on the remote
control is already programmed to channel 1 and then is programmed to
channel 3, the button will be erased from channel 1 and will only work on
channel 3.
LEDs
INSTALLATION
The receiver and antenna use TV Type F coaxial connectors. The
antenna can be connected directly to the receiver or it can be
installed remotely using a coaxial cable extension kit (Model
86LM, 5m).
1 Select a location for the receiver which allows access to the
terminals and space for the antenna. Ensure antenna does not
touch metal surfaces. DO NOT bend or fold the antenna.
2 Fasten the receiver securely with the hook and loop fasteners
(provided) or screws (not provided).
3 After installation is complete, connect power. You may use
85LM plug-in or 95LM wired-in transformer, or power provided
from your operator (9-30 V AC, 9-34 Vdc or see power ratings
on next page).
Security + 2.0
CH3
CH1
CH2
3-CHANNEL UNIVERSAL RECEIVER
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing the receiver.
To prevent possible SERIOUS INJURY or DEATH from a moving gate or
garage door:
• A LWAYS keep remote controls out of reach of children. NEVER permit
children to operate, or play with remote control transmitters.
• A ctivate gate or door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• A LWAYS keep gate or garage door in sight until completely closed.
NEVER permit anyone to cross path of moving gate or door.
To prevent possible SERIOUS INJURY or DEATH, the use of CONSTANT
OPERATION on residential openers is PROHIBITED.
When a receiver is used to activate a commercial door opener, a reversing
edge MUST be installed on the bottom of the door. Failure to install a
reversing edge under these circumstances may result in SERIOUS INJURY
or DEATH to persons trapped beneath the door.

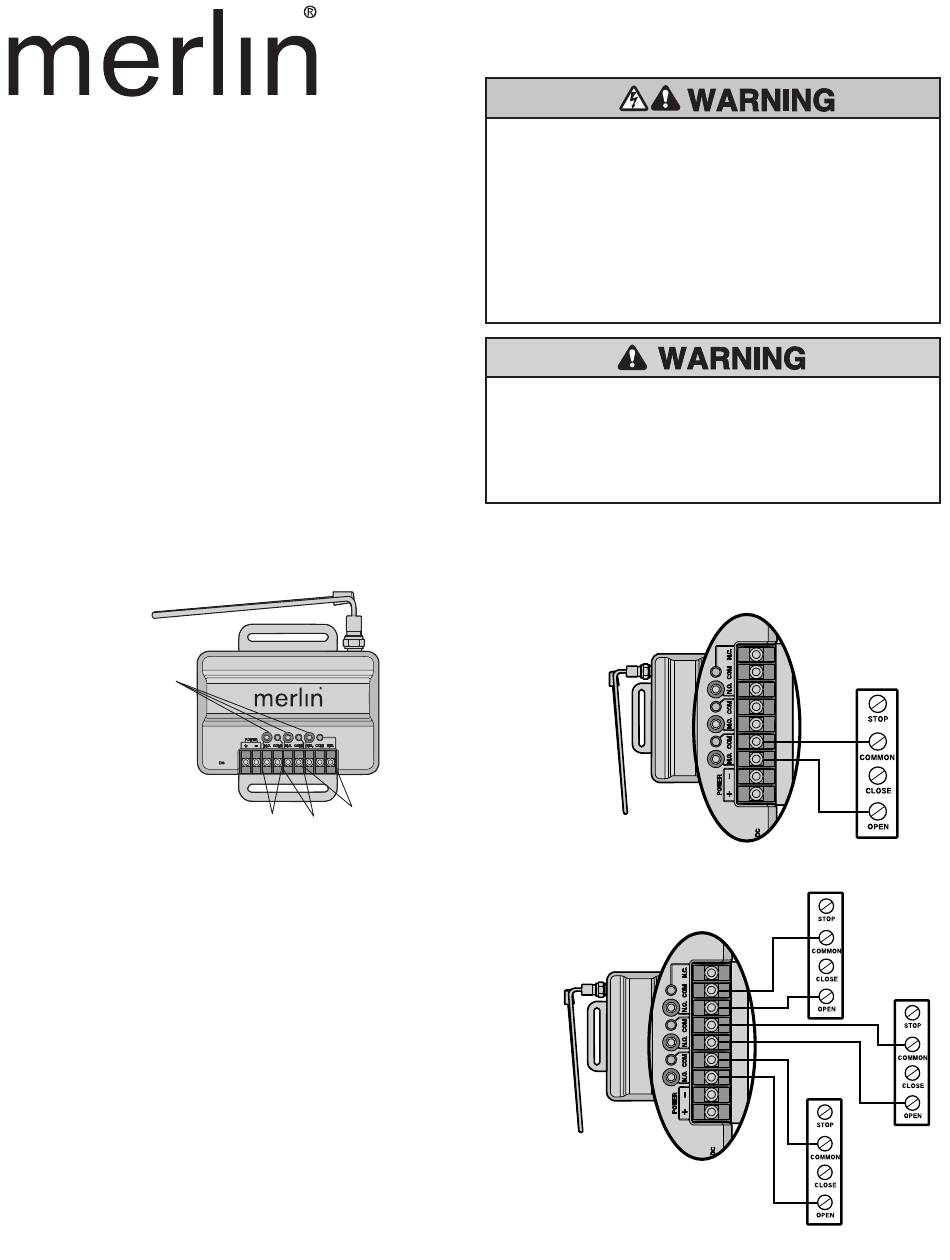

WIRING
Refer to your commercial door operator or gate operator owner
manual or wiring diagrams for specific wiring information.
SINGLE CHANNEL
Receiver
THREE CHANNEL
Receiver
MODEL E8003
Single Operator(s)
Operator 3
Operator 2
Operator 1
