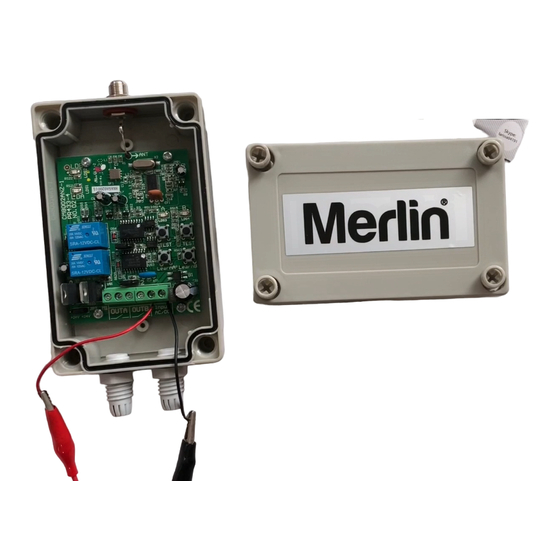

Merlin CM8002ANZ-1 Quick Start Manual

CM8002ANZ-1 433MHz 2 Channel Billion and
Rolling Code Channel Receiver
Open Garage door
Channel A
Indicator lights
(momentary or constant)
LDS2
LDS1
Jumper
Channel B
>24V < 24V
> 24V
16-30V AC, @ 30mA
24-30V DC, @ 30mA
< 24V
12-16V AC, @ 30mA
12-24V DC, @ 30mA
Example of Use
Open Garage and Gate
Channel A and B
Open Gate
Channel B
Antenna Connection
A nt
CN1
Indicator lights
CN2 (Channel A & B)
B
A Command buttons
(Channel A & B)
LDS3 LDS4
Program buttons
Test Test
(Channel A & B )
Jumper
LearnA LearnB
Channel A
Input
OUT A OUT B AC / DC
Power Source
Example of
use Gate
Controler
Example of Use
Garage door motor
Chamberlain Australia Pty Ltd
PO Box 1446
Lane Cove NSW 1595
Chamberlain New Zealand Ltd
PO Box 100 221
North Shore 0745
gomerlin.com.au
gomerlin.co.nz
Compatible Remotes:
Merlin Professional
Compatible Remotes:
Chamberlain
The receiver can be set for either constant or momentary closure on the
output contacts for each channel (A and B). (Use constant closure only if
constant pressure is needed.) With the jumper in "1" (Momentary) position,
the contacts will close for 150ms regardless of the length of radio
transmission. With the jumper in "2" (Constant) position, the contacts will
stay closed as long as the radio continues transmitting.
Momentary
Transformer
or
MERLIN
C940 C943
CM842 CM844
CM128
4330A 4333A
TO SET OUTPUT DURATION
Constant signal
(Hold to run)
MERLIN
C945
4335A
