Summary of Contents for PNI SafeHome IDB005

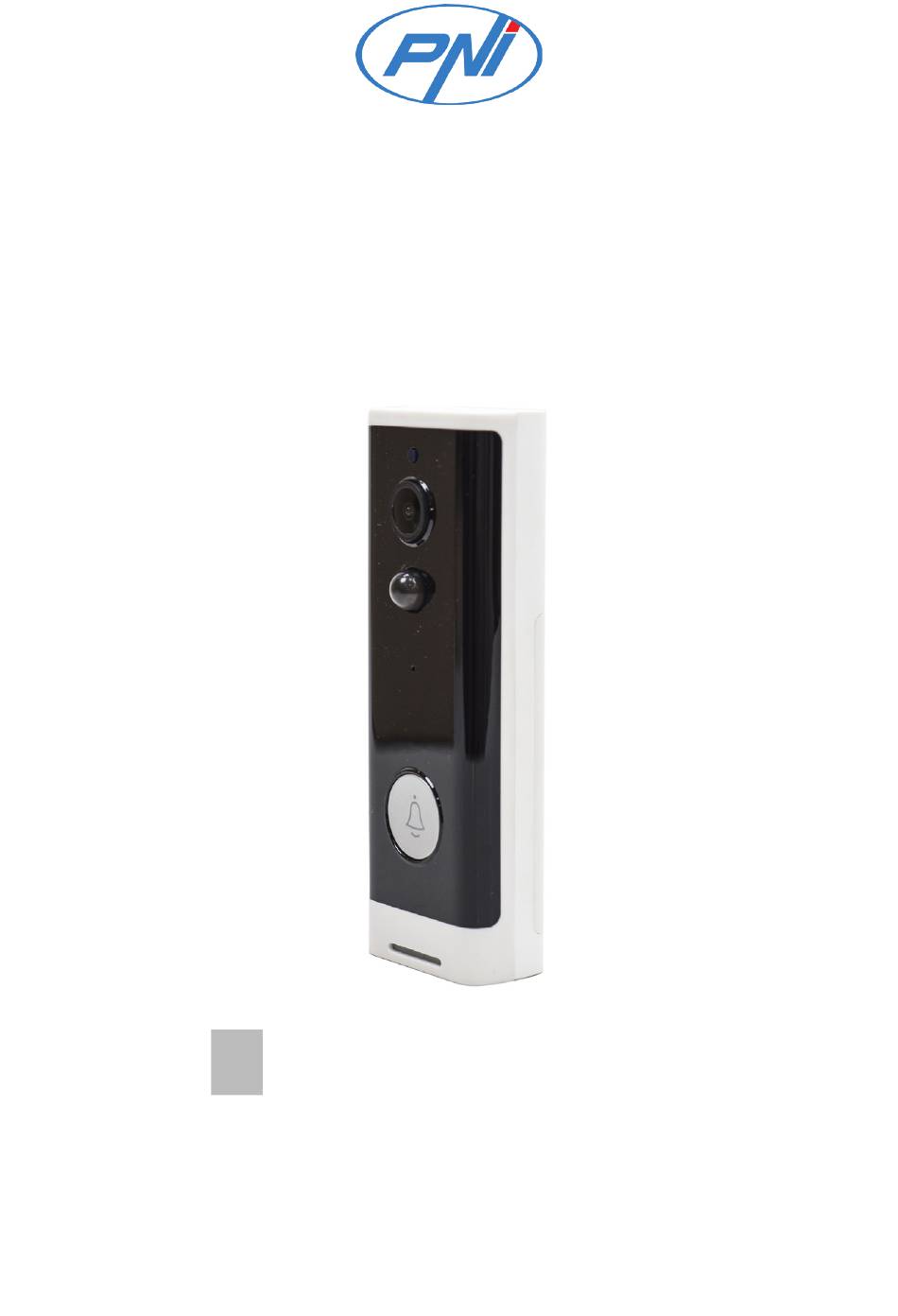

- Page 1 PNI SafeHome IDB005 Smart video door phone / Interfon video inteligent User manual ..........Manual de utilizare ........
-
Page 3: Package Content
Introduction PNI Safe House IDB005 Wifi video ringtone will alert you on your smartphone every time a guest rings the doorbell. Once connected to a wireless internet source the product also transmits video images with the person and allows a two-way audio communication, along with push notifications. - Page 4 IR LED - When ambient light is not enough, IR LED will turn ON to increase image quality ( Night Mode); Light sensor - Monitors ambiental light and when level drops below 2 Lux, the IR LED will turn on automatically; MIC - Audio capture;...
- Page 5 Tuya Smart APP Download the Tuya Smart app by accessing Google Play or App Store or scan the QR codes below: Android Warnings • Make shure you connect your smartphone to a 2.4 Ghz Wireless internet network. Activate GPS Location from your smartphone. •...
- Page 6 5. In the next interface, select the option QR Code from the upper right corner. 6. Then tick Make sure the LED indicator is flashing ( 1 per second) and a configuration Tone/Voice is heard. Click Next. 7. Select the WiFi network you want to connect to and add the password. 8.
- Page 7 Device control via the application Options: 1. Screenshot: takes an image and saves it in the phone’s memory 2. Speak: press to talk to the person in front of your door 3. Record: press to record video. The recording will be saved in the phone memory.
-
Page 8: Technical Specifications
Technical specifications Processor Hi3518E Sensor 1/3 CMOS Video resolution 1024x720 / 1920 x 1080 Video compression H.264/H.265 Audio Built-in microphone / Built-in speaker Viewing angle 166° IR-CUT filter IR LEDs 6 pcs. 850mm Minimum lighting 1 Lux WiFi 2.4GHz, IEEE 802.11 b/g/n Storage Micro SD card, max. -
Page 9: Continut Pachet
Introducere Soneria video Wifi PNI Safe House IDB005 cu acumulator, odata conectata la o sursa de internet wireless va va atentiona pe telefonul mobil in aplicatia dedicata de fiecare data cand un musafir suna la usa. Produsul transmite de asemeni imagini video cu persoana si permite o comunicare audio bidirectionala cu acesta direct pe smartphone. - Page 10 IR LED - Iluminare infrarosu pe timp de noapte.; Light sensor - Masoara nivelul de lumina ambientala si daca scade sub 2 Lux, Ledurile IR pornesc automat. Microfon - Captura audio; Buton - Buton sonerie; PIR - Senzor detectie miscare. Poate declansa notificare automata in aplicatia de mobil.
- Page 11 Aplicatia Tuya Smart Descarcati aplicatia Tuya Smart accesand Google Play sau App Store sau scanati codurile QR de mai jos: Android Atentie • Asigurați-vă că ati conectat smartphone-ul la o rețea de internet wireless de 2,4 Ghz. Activați locația GPS de pe telefonul mobil. •...
- Page 12 5. In interfata urmatoare selectati din coltul dreapta sus optiunea QR Code. 6. Apoi bifati Make sure the indicator is flashing quickly or a prompt voice / tone is heard. Click Next. 7. Selectati reteaua WiFi la care doriti sa va conectati si adaugati parola. 8.
- Page 13 Control dispozitiv din aplicatie Optiuni: 1. Screenshot: preia o imagine si o salveaza in memoria telefonului 2. Speak: apasati pentru a vorbi cu persoana aflata in fata usii 3. Record: apasati pentru a inregistra video. Inregistrarea va fi salvata in memoria telefonului.
-
Page 14: Specificatii Tehnice
Specificatii tehnice Procesor Hi3518E Senzor 1/3 CMOS Rezolutie video 1024x720 / 1920 x 1080 Compresie video H.264/H.265 Audio Microfon incorporat / Difuzor incorporat Unghi de vizualizare 166° Filtru IR-CUT Leduri IR 6 buc. 850mm Iluminare minima 1 Lux WiFi 2.4GHz, IEEE 802.11 b/g/n Stocare Card SD, maxim 64GB (nu este inclus) Da, 3 niveluri de sensibilitate... - Page 15 EU Simplified Declaration of Conformity SC ONLINESHOP SRL declares that Smart video doorphone PNI SafeHome IDB005 complies with the EMC 2014/30/EU and RED 2014/53/UE Directives. The full text of the EU declaration of conformity is available at the following Internet address: https://www.mypni.eu/products/6979/download/certifications...
