Draytek VigorSwitch G2240 Quick Start

Packing List:

Before you start installing VigorSwitch G2240, please verify that the package
contains the following items:

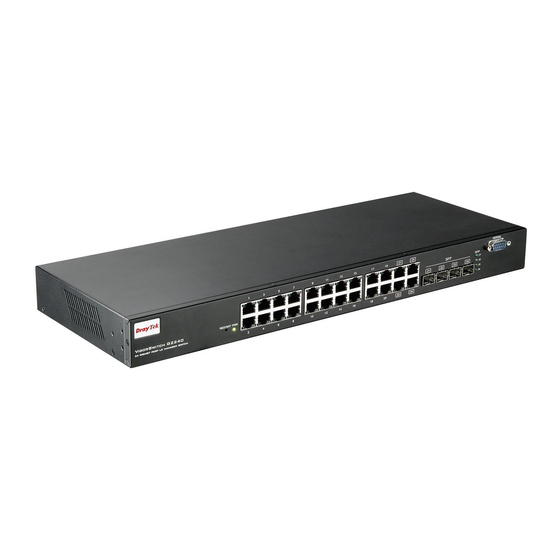

VigorSwitch G2240
Power Cord
CD
Rubber Feet
Rack Mount Kit
Please notify your sales representative immediately if any of the items is missing or
damaged.

Power Requirements:

Voltage
Frequency
Consumption

Quick Installation:

1. Install the switch in the rack with mounting accessory.
2. Connect the switch to an AC power source.
3. The port 1–24 connector is RJ-45 jack on the switch. Use Category 5 UTP
cable to connect between the switch and end station.
4. The port 21~24 includes two types of media --- TP and SFP fiber modules;
they support TP or fiber with auto-detected function.
5. Use RS-232 interface to pre-configure the switch for network management.
6. For example: IP address, VLAN, Port Trunking, STP, etc.
The default settings for switch's serial port are listed as follows:
Baud rate
Stop bits
Data bits
Parity
Flow control
The default values of the switch are listed as follows:
IP Address/Subnet Mask/Default Gateway: Assigned by DHCP Server
Username
Password
User also can use telnet or web to pre-configure the switch with the default IP
address and username/password in the first configuration.

Read Me First

AC Line
: 100∼240 VAC
: 50∼60 Hz
: 30W
115200
1
8
N
none
: admin
: admin
