Self draining sill

Advertisement

Required Hardware

Supplied Hardware

93HSB-20_
94P Polypropylene Channel
93HSB-25_
supplied in 2, 2.5, 3, 3.5, 4, 5 and 6m lengths
93HSB-30_
93HSB-35_
93HSB-40_
93HSB-50_
93HSB-60_
supplied in 2, 2.5, 3, 3.5, 4, 5 and 6m lengths
93B Screw Block
2 supplied per kit

Preparing Sill Timbers

System Details

JT
3
Cut 93HSB and 94P to length = W+2(JT)-6
W = Opening width between jambs
JT = Jamb Thickness
JW = Jamb Width
PT = Panel Thickness

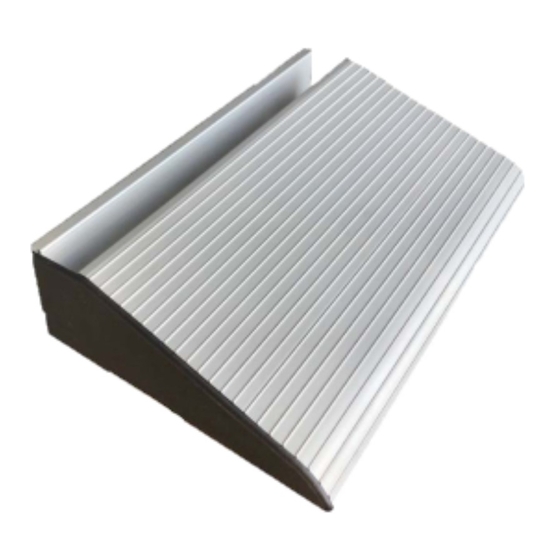

93HSB Self Draining Sill
Brio Australia
P: +61 2 87186718
W:
brio.com.au
E:
brio.sales@allegion.com
anodising colour not specified
93HSB Aluminium Extrusion
93AEC End Caps
1 set (left and right) supplied per kit
W
JW
JW
PT
PT
141
141
Brio UK
P: +44 191 2291224
W:
briouk.com
E:
brio.sales.uk@allegion.com
Assembled Sill

Cutting Timbers

Cut to length = W
6
28
60.5
7
37.5
37.5
Cut to length = W+2(JT)-6
XT decided by installer
2
Seal AQ21 can be purchased
from Brio for the full perimeter seal
INST93HSB1 REV C - MAR 2017
Brio USA
P: +1 585 3195599
W:
briousa.com
E:
brio.sales.usa@allegion.com
12
T
1
2.7
6
12.3
XT
2
T
2
14.3
Seal and
timbers not
supplied
23
37.5
1
