Brio
Codes
B WC 4 - 80 S H SS

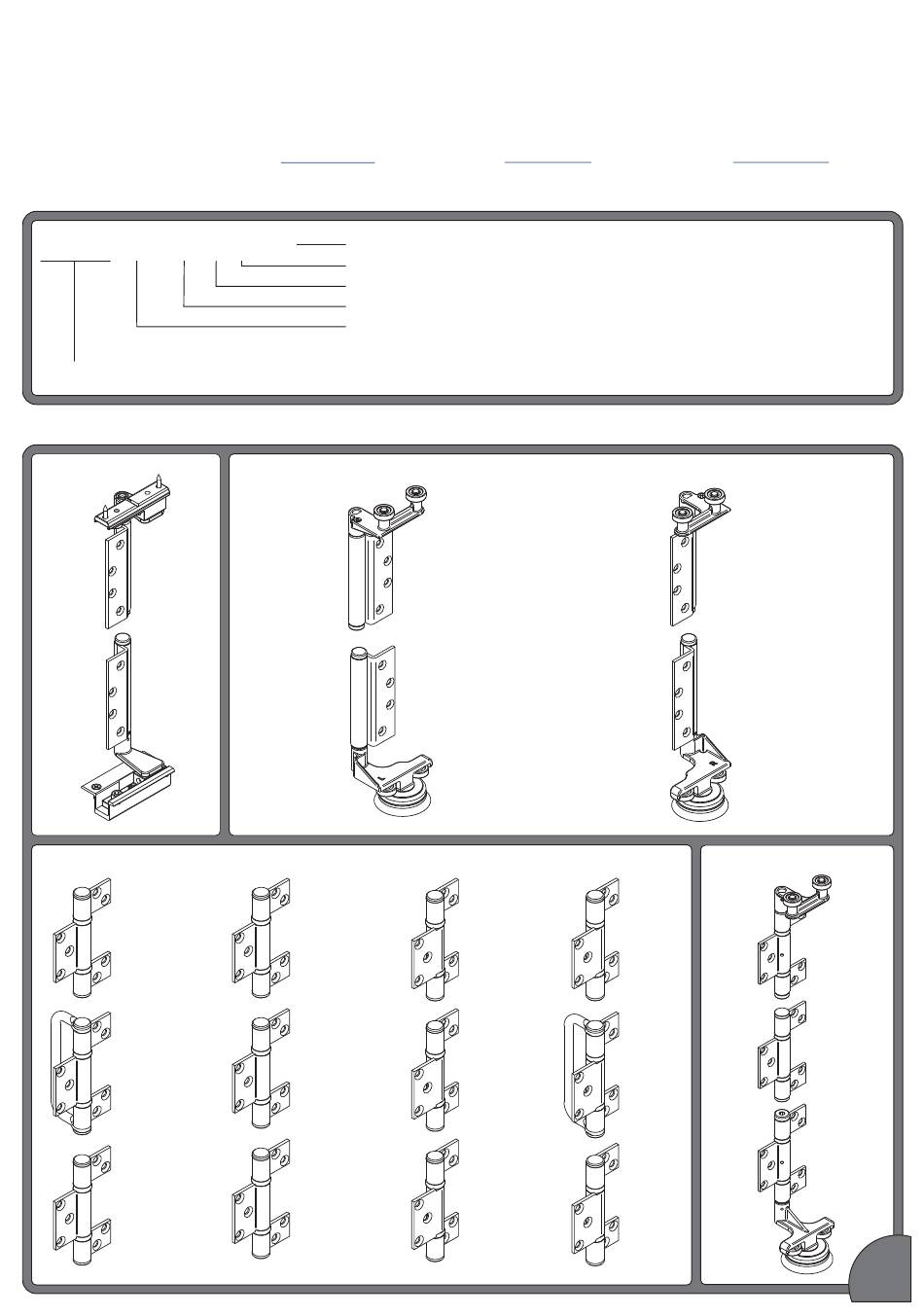

Brio Weatherfold 5c
Sets
all sets shown with hinge type H. No finishes shown.
BWC1-80H
BW3-100H
Weatherfold 5c 80
®
Brio Australia
P: +61 2 87186718
W:
brio.com.au
E:
brio.sales@allegion.com
Finish: SS (Satin Stainless)
Hinge Type: See section Hinge Installation (page 5)
Bearing Type: S (Stainless Steel Bearing)
Load Capacity: 80kg
Set No.: 1(Pivot Set), 2 (End Roller Set), 4 (Intermediate Roller Set),
BWC2L-80SH
BW5-100H
Brio UK
P: +44 191 2291224
W:
briouk.com
E:
brio.sales.uk@allegion.com
3 (Hinge Handle Set), 5 (Hinge Set), 6 (Offset Hinge Set),
7 (Offset Hinge Handle Set)
BWC2R-80SH
BW6-100H
BW7-100H
INSTBWC1 REV
C DEC 2019
-
Brio USA
P: +1 585 3195599
W:
briousa.com
E:
brio.sales.usa@allegion.com
BWC4-80SH
1
Advertisement
Table of Contents
Related Manuals for BRIO Weatherfold 5c 80
Summary of Contents for BRIO Weatherfold 5c 80
- Page 1 INSTBWC1 REV C DEC 2019 Brio Weatherfold 5c 80 ® Brio Australia Brio UK Brio USA P: +61 2 87186718 P: +44 191 2291224 P: +1 585 3195599 brio.com.au briouk.com briousa.com brio.sales.uk@allegion.com brio.sales.usa@allegion.com brio.sales@allegion.com Codes B WC 4 - 80 S H SS...
- Page 2 DL = Dual Point Lock, LK = Lock, L = Left, R = Right OUTWARD OPENING 2L 2R Opening Preparation outward opening system shown, dimensions shown in mm OPENING IN BRICKWORK OPTIONAL - BRIO WEATHERFOLD 5c WITH BRIO 612 RETRACTABLE INSECT SCREEN HEADBOARD HEADBOARD OUTSIDE 30.0 23.6 PACKING BATTEN REBATE 30.0...
- Page 3 Sill and Channel Preparation Frame - without 612 retractable screen. Cut timbers to length A & D= F - 6 (Frame Width - 6) B, C, E= W (Finished Opening Width) 15.5 JW - 63 JW - (PT + 6) JW - 39 a = 12 b = 6...
-
Page 4: Frame Assembly
Frame Assembly 1. Pin E to headboard 2. Screw fix 98C 3. Pin C to headboard 4. Pin B to E 5. Screw fix head to jamb 2. Screw fix jamb to sill 3. Screw fix end caps to sill 1. -
Page 5: Hinge Installation
Panel Size Calculation Brio Weatherfold 5c allows for equal size panels PH (Panel Height) = H - 45 N = No. of Panels PW = Panel Width PW = W-[PC(N-1) + 2(JC)] JC = Jamb Clearance = 6 PC = Panel Clearance = 4... - Page 6 286 Dual Point Lock see 286 dual point timber lock instructions (INST286TC) for further details Cleat support & Lock recess Locking handle Non-locking handle 16.2 OUTSIDE Lock recess Ø8 Ø8 INSIDE Ø18 Cleat 16.2 support Ø18 Ø8 PANEL Ø8 ENDS INSIDE PT = Panel thickness INSIDE...
-
Page 7: Hardware Features
Handing top pivot (left to right hand shown) Fit washers, hinge and cap Handing indicator shown WASHERS LEFT GUIDE LOCK HINGE GRUB SCREW LEFTT ROLLER Right hand shown Hardware Features Hardware security Guide security Screw in cap (Intermediate roller only) HEX DRIVE ANTI-SHAKE SET/GRUB... -
Page 8: Installing Hardware
Installing Hardware clean down inside of sill and channel Dismantle top pivot and screw fix plate into channel Reassemble top pivot into channel Insert rollers through access notch in correct order Insert bottom pivot in the sill and screw fix to sill. Hanging Panels Left hand system shown Bring pivot panel to pivot set... -
Page 9: System Overview
Open fully, lock off 2nd cap screw System Overview Left hand system shown BRIO WEATHERFOLD 5c INSIDE OUTSIDE BRIO WEATHERFOLD 5c WITH 612 RETRACTABLE INSECT SCREEN INSIDE OUTSIDE CHANNEL STANDARD SILL - 98HSF BRIO WEATHERFOLD 5c WITH 612 RETRACTABLE... - Page 10 ® As a guide, if a window or door requires washing then wash the hardware, however Brio recommend for marine and industrial environments washing a minimum of every 3 months and 6 months for general ®...
